Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

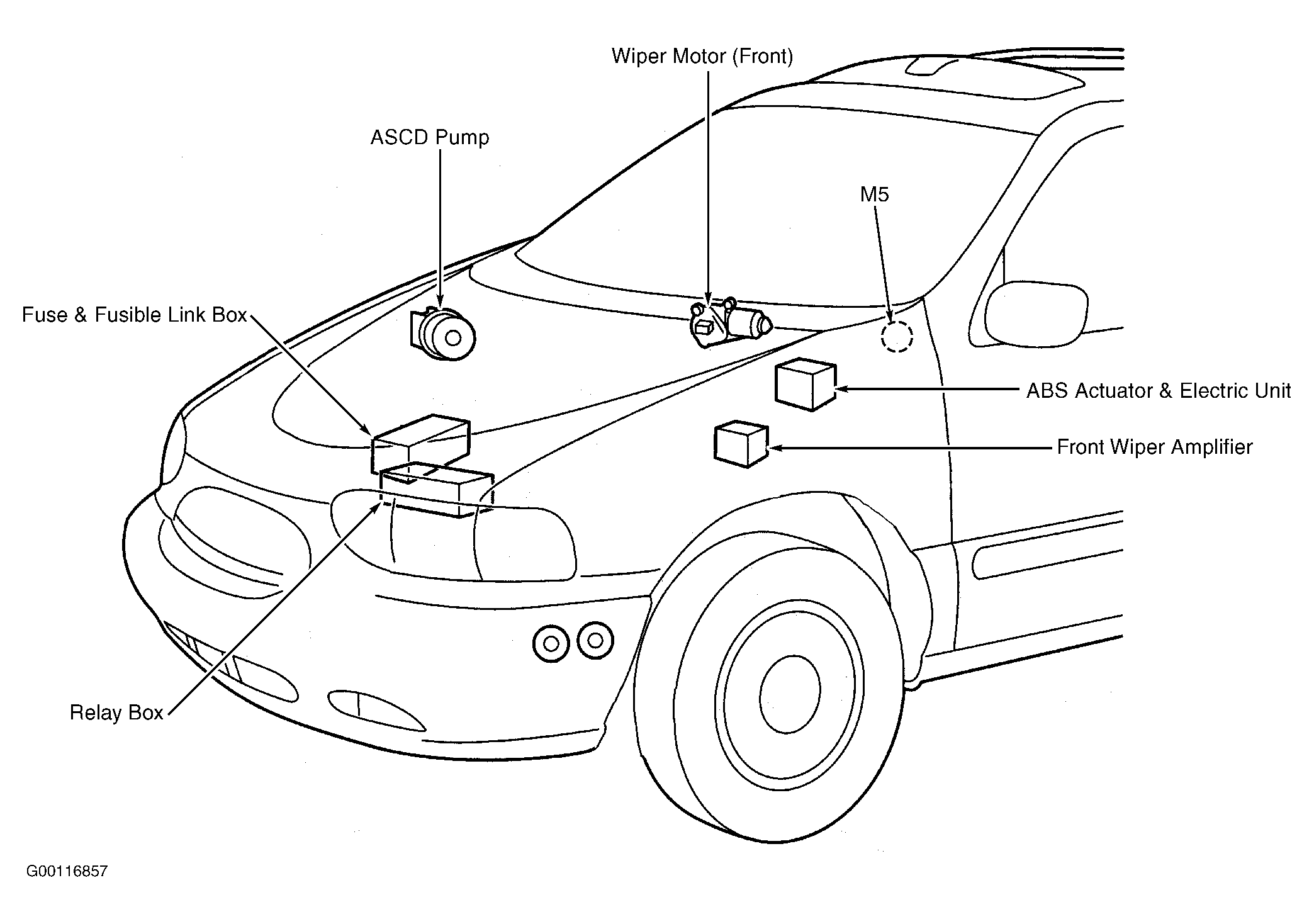

Fig 1: Engine Compartment

Fig 2: Engine Compartment

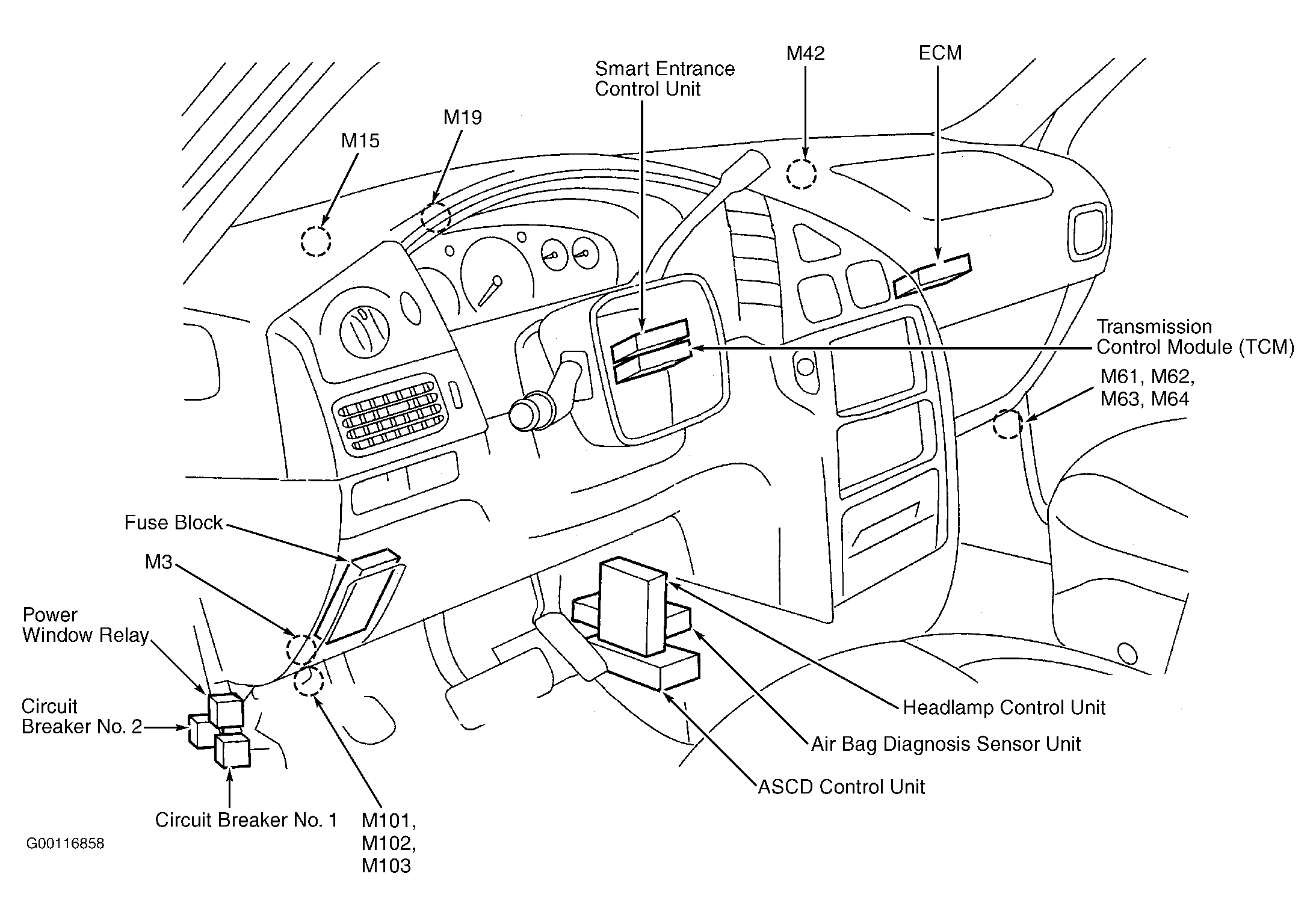

Fig 3: Dash

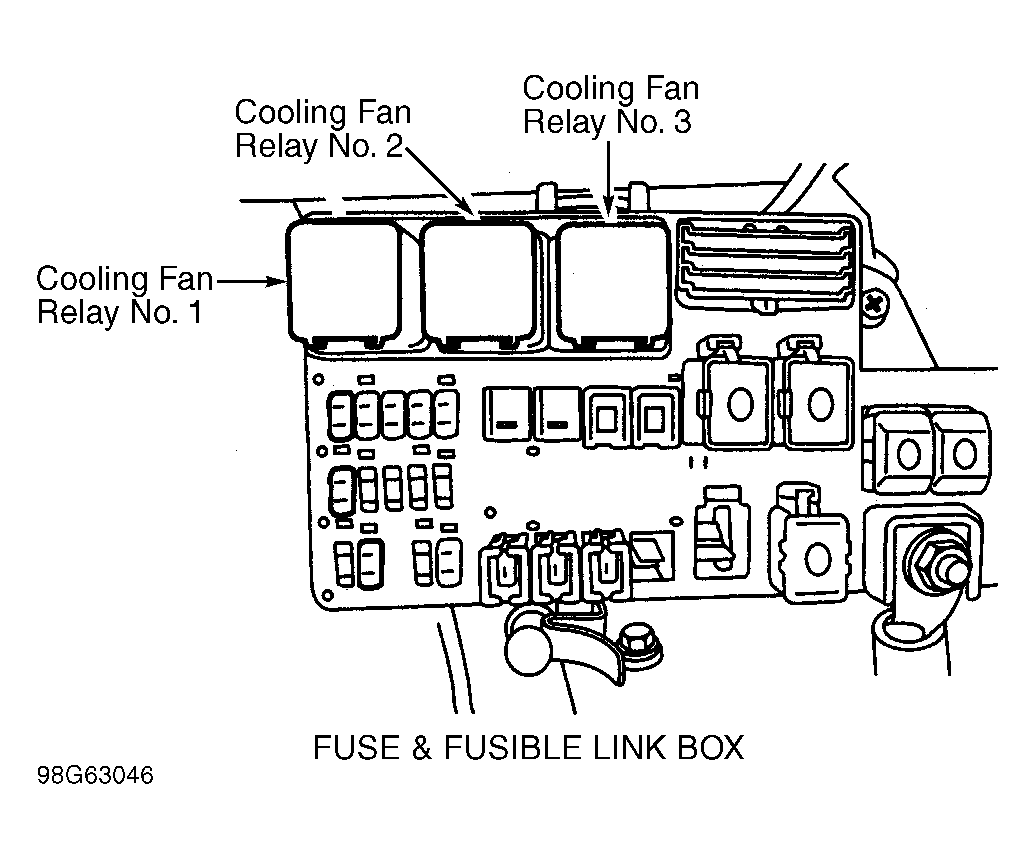

Fig 4: Fuse & Fusible Link Box

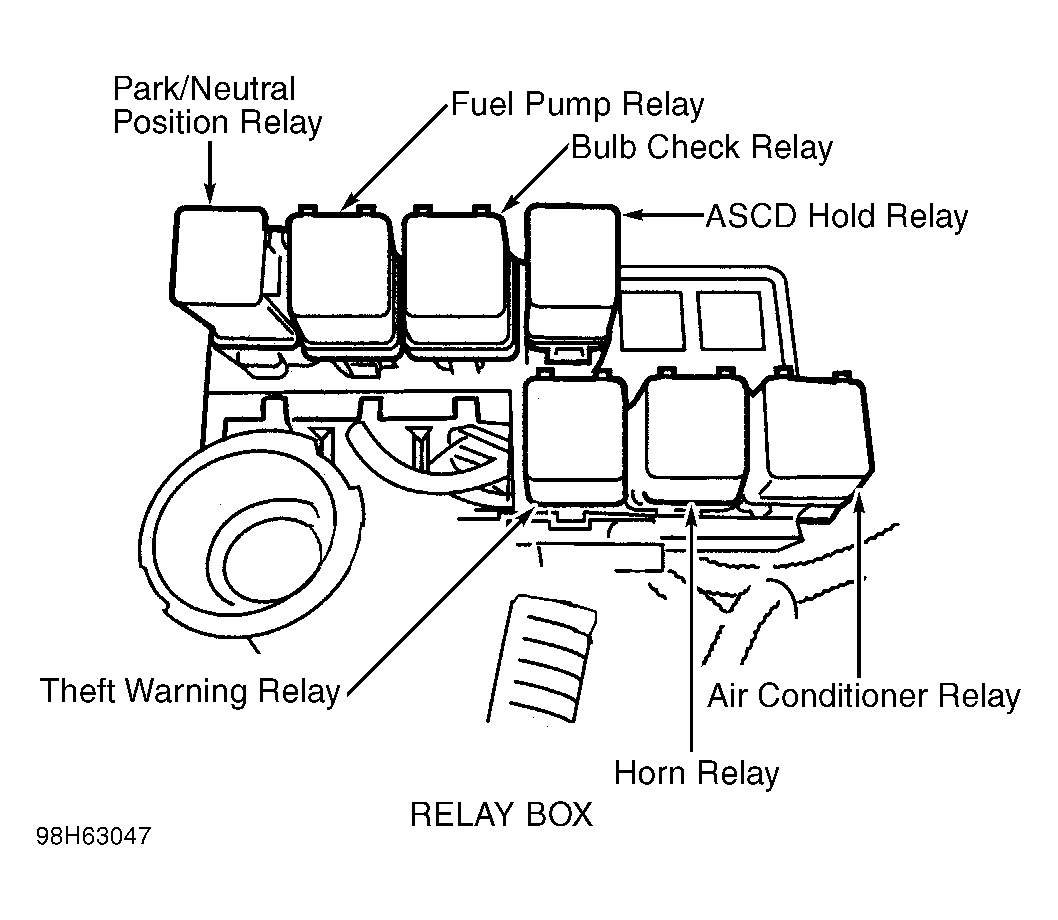

Fig 5: Relay Box
