Diagnostic Tests: Notes

NOTE: On vehicles with NVIS system, all ignition keys to be used with vehicle must be reprogrammed when PCM is replaced. See appropriate ANTI-THEFT SYSTEMS article in ACCESSORIES & EQUIPMENT. Also, IACV-AAC valve idle air volume learning procedure must be performed when PCM is replaced. See ON-VEHICLE ADJUSTMENTS article.

NOTE: Use illustrations to locate and identify PCM harness connector terminals. See Fig 1 and Fig 2 . To identify circuits and wire colors referenced in testing, see ENGINE PERFORMANCE in SYSTEMS WIRING DIAGRAMS article.

Fig 1: Locating PCM Harness Connector

G00014338

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying PCM Wiring Harness Connector Terminals (As Viewed From Harness Side Of Connector)

G99E52781

Courtesy of NISSAN MOTOR CO., U.S.A.

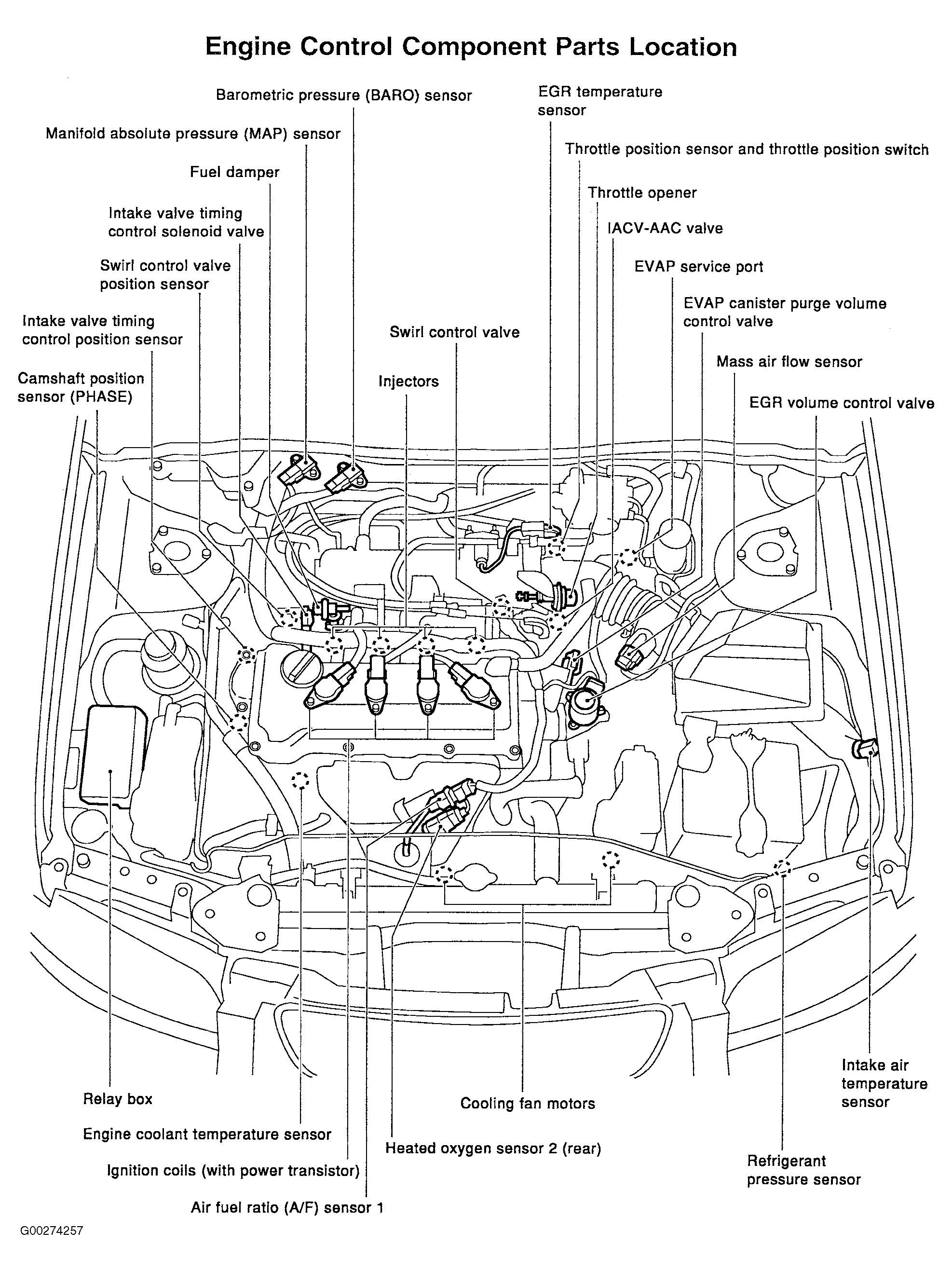

Fig 3: Engine Control Components Locations (Sentra 1.8L California CA) - 1 Of 5

G00274257

Courtesy of NISSAN MOTOR CO., U.S.A.

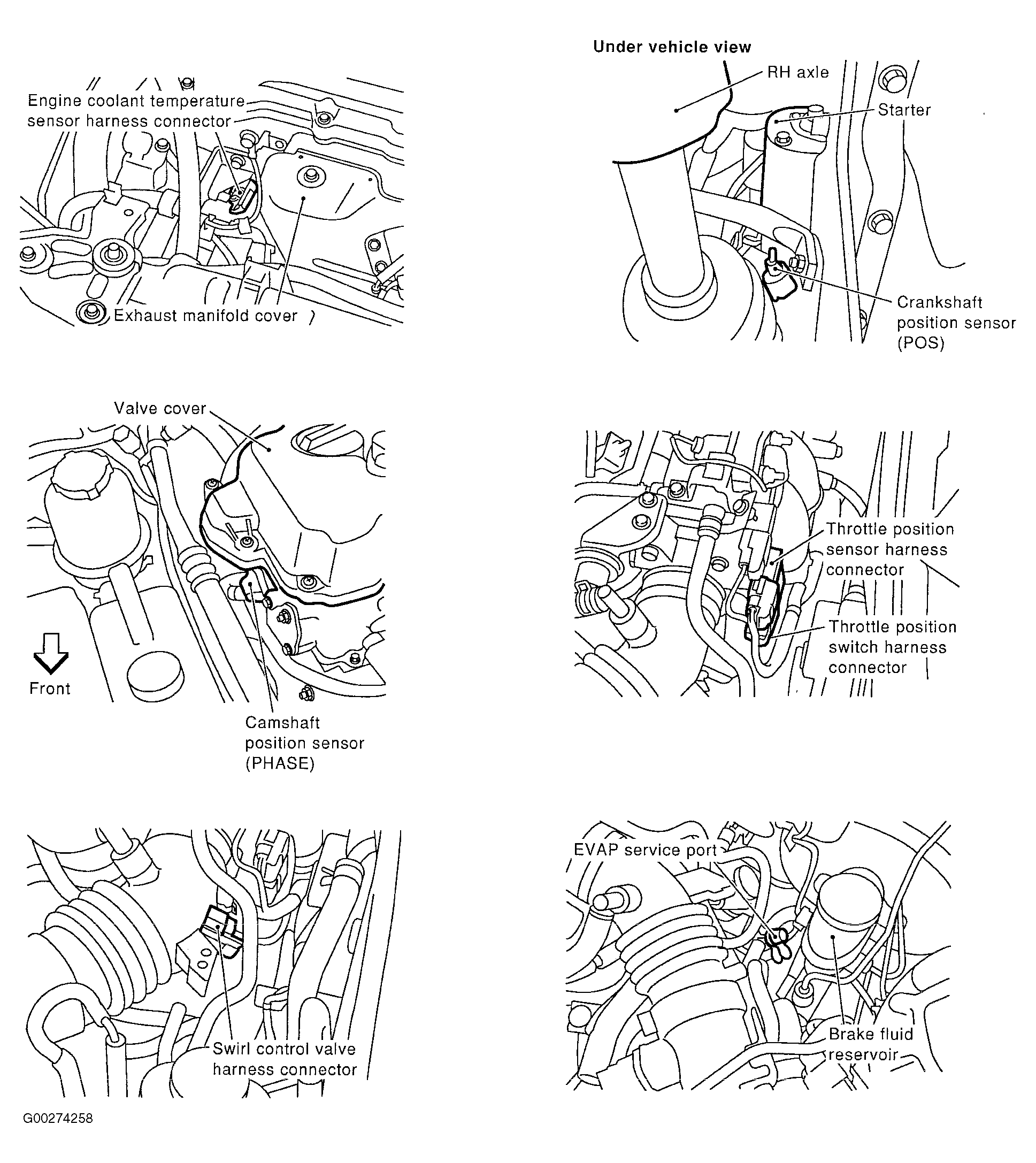

Fig 4: Engine Control Components Locations (Sentra 1.8L California CA) - 2 Of 5

G00274258

Courtesy of NISSAN MOTOR CO., U.S.A.

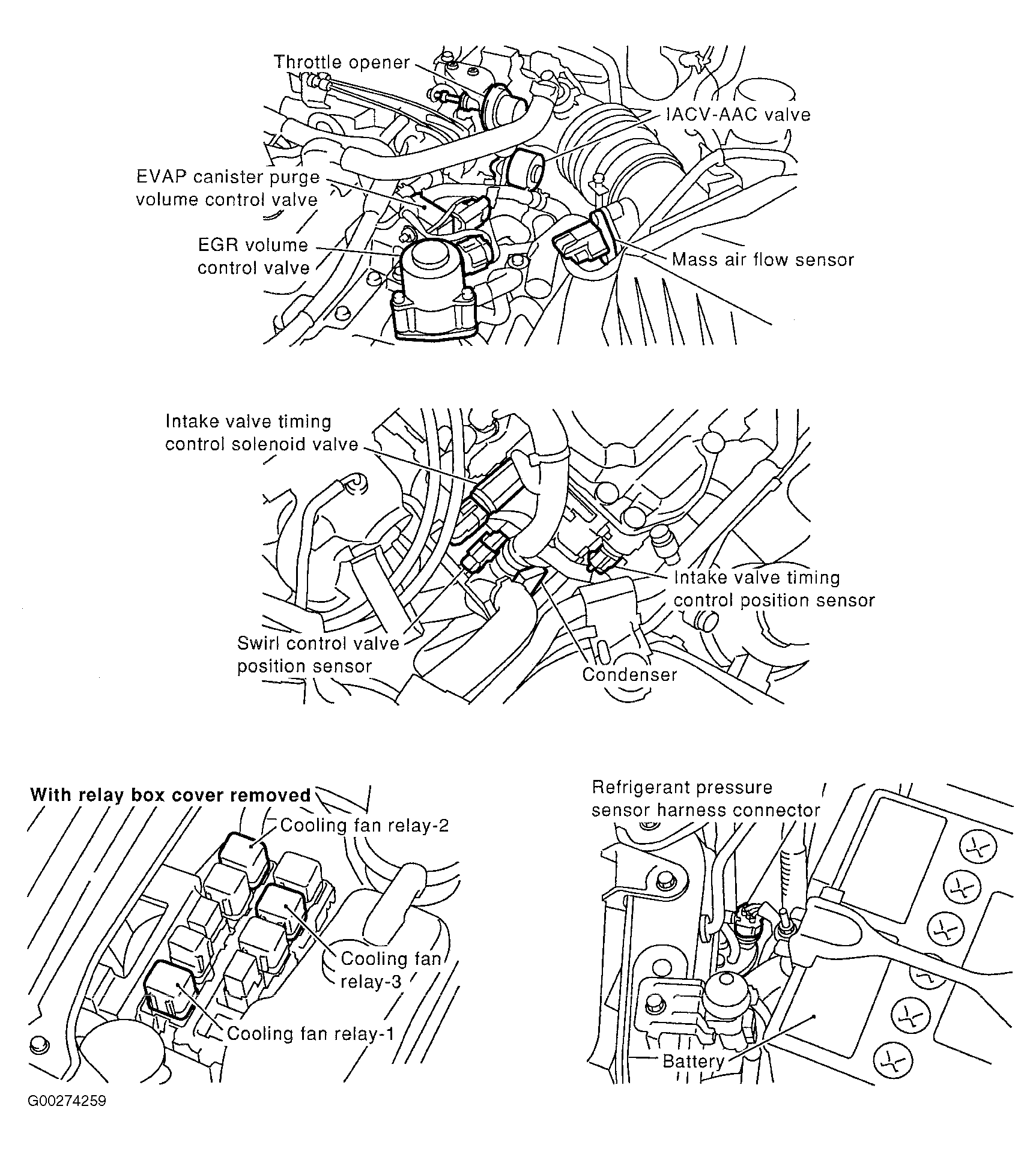

Fig 5: Engine Control Components Locations (Sentra 1.8L California CA) - 3 Of 5

G00274259

Courtesy of NISSAN MOTOR CO., U.S.A.

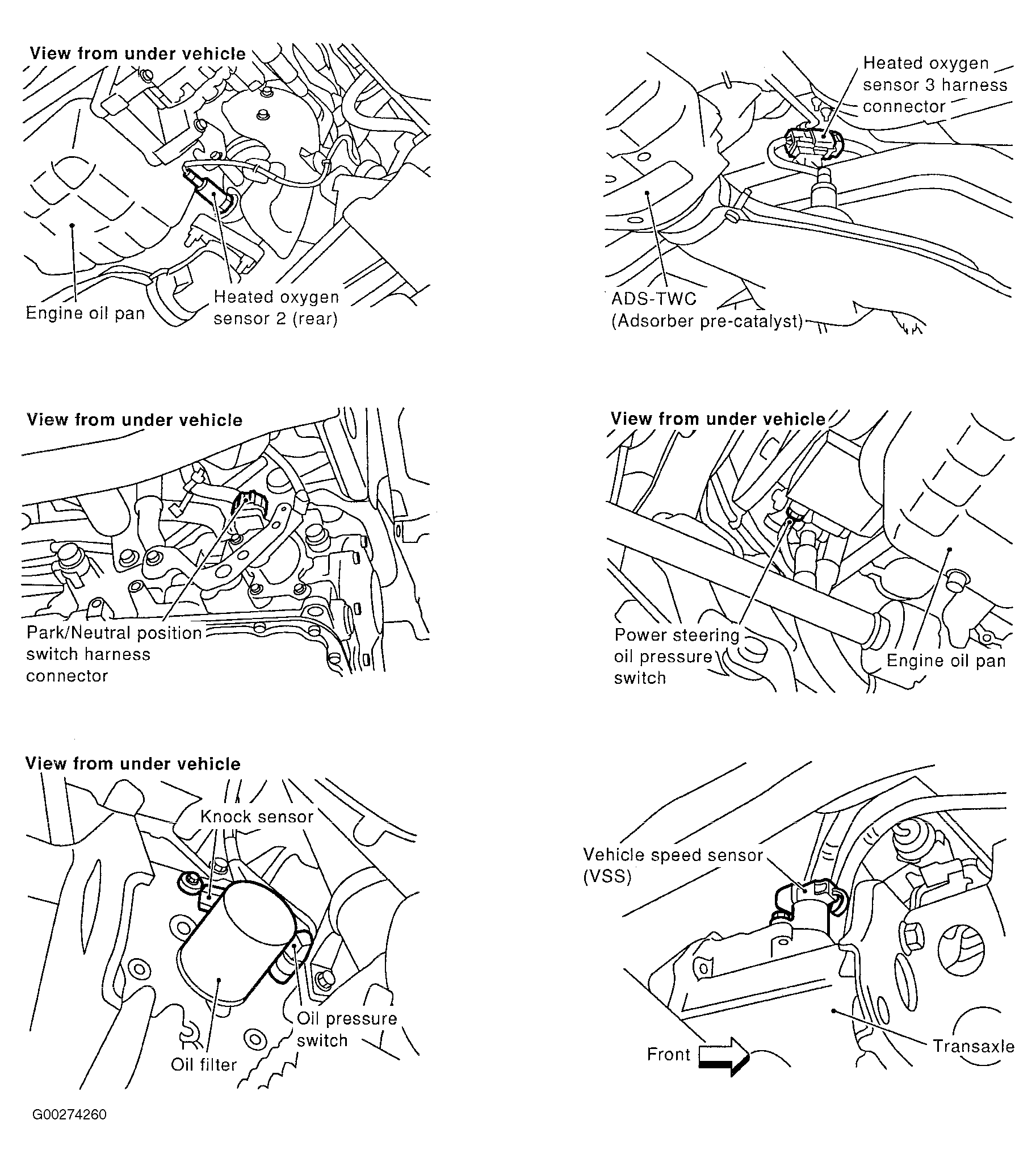

Fig 6: Engine Control Components Locations (Sentra 1.8L California CA) - 4 Of 5

G00274260

Courtesy of NISSAN MOTOR CO., U.S.A.

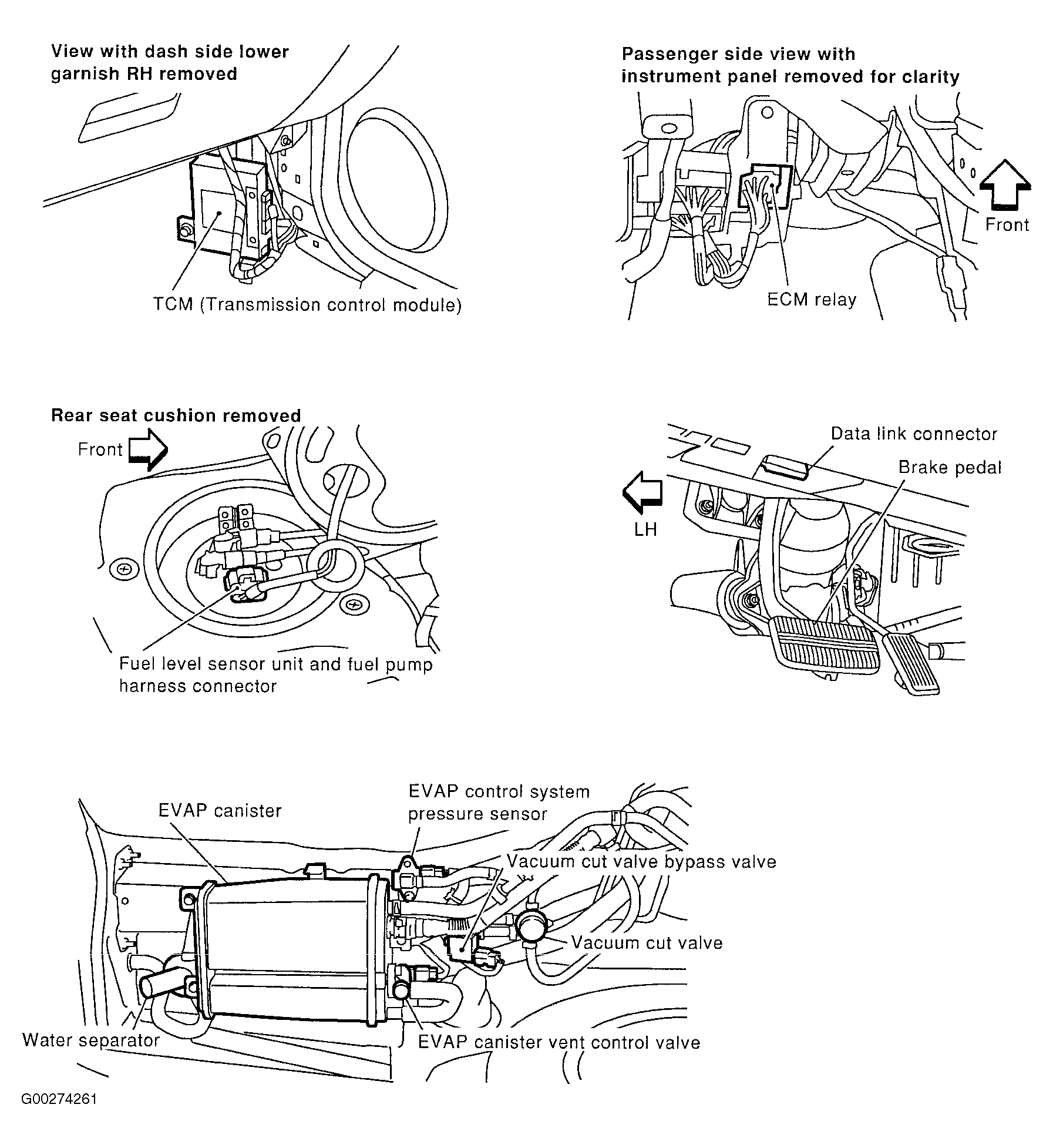

Fig 7: Engine Control Components Locations (Sentra 1.8L California CA) - 5 Of 5

G00274261

Courtesy of NISSAN MOTOR CO., U.S.A.
