Data Monitor Procedure
- Turn ignition switch OFF.

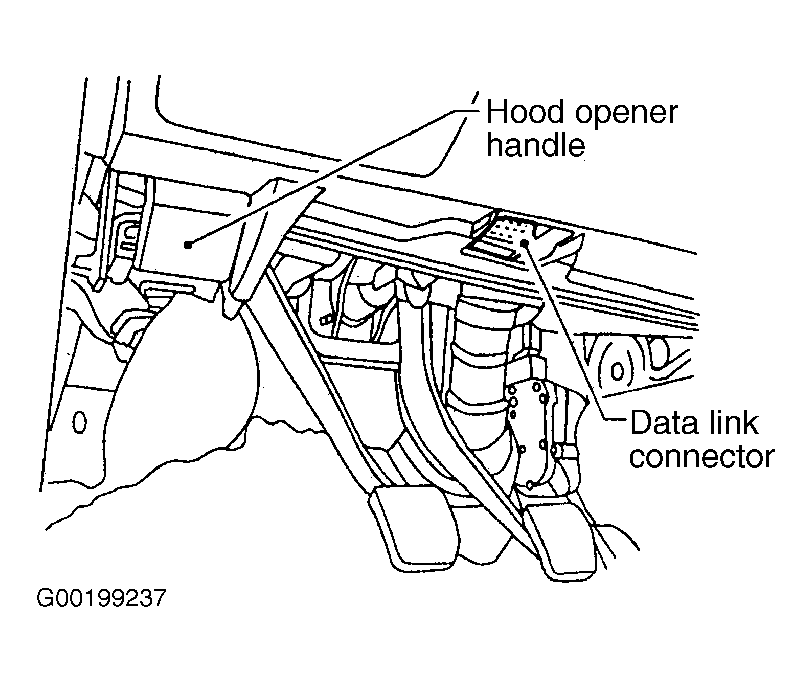

- Connect CONSULT-II to data link connector. See Figure.
- Turn ignition switch ON.
- Touch "START" on CONSULT-II screen.
- Touch "ABS".
- Touch "DATA MONITOR".
- Touch "SETTING" on "SELECT MONITOR ITEM" screen.
- Touch "START" on "SET RECORDING COND" screen.
- Touch "START" on "SELECT MONITOR ITEM".

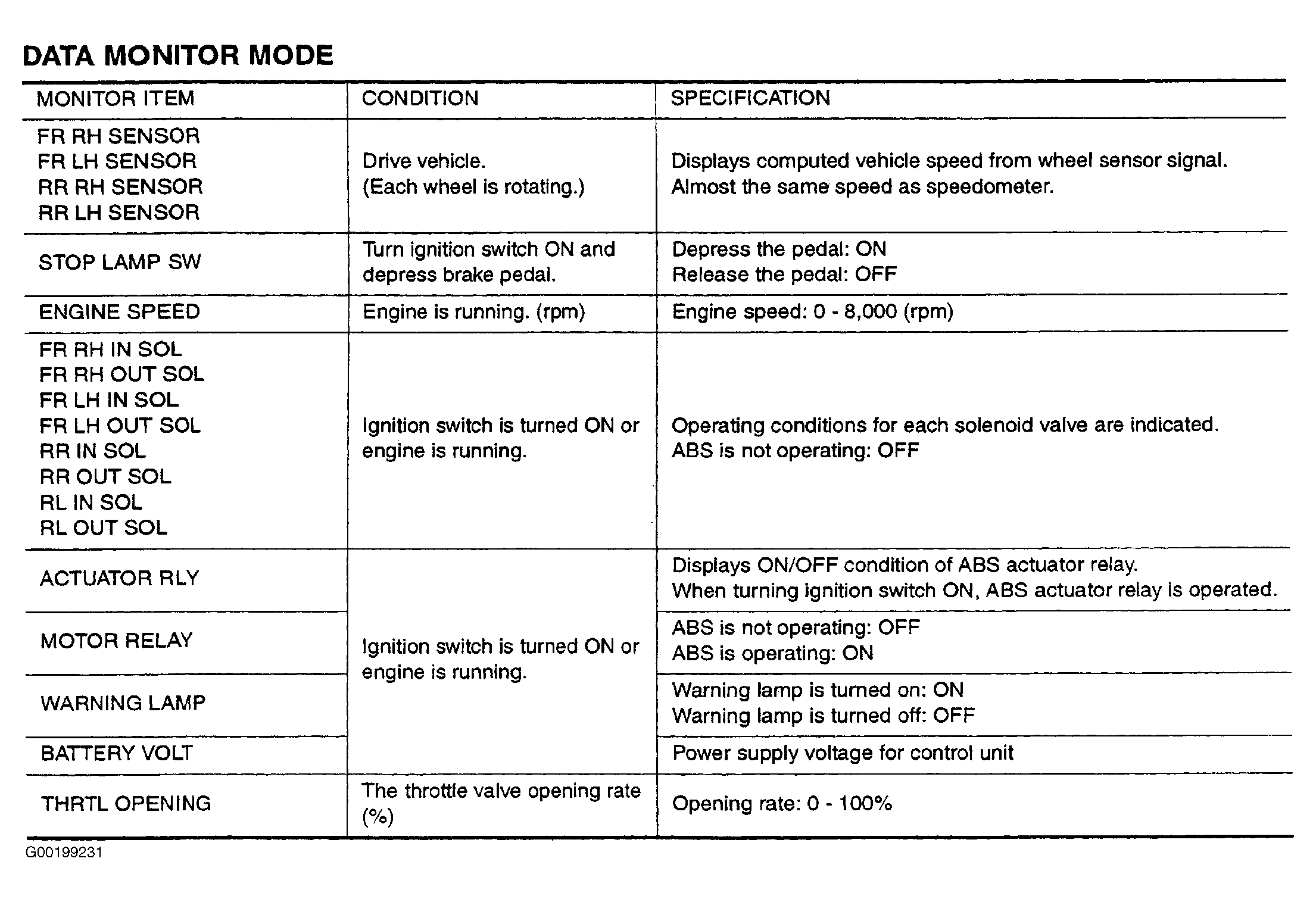

- For data monitor mode descriptions, see Fig 1.
