Home › Nissan-Datsun › 2001 › Maxima GLE, RE4F04W › Repair and Diagnosis › Brakes › Traction Control › Traction Control System › Description › Schematic

Traction Control System: Description: Schematic

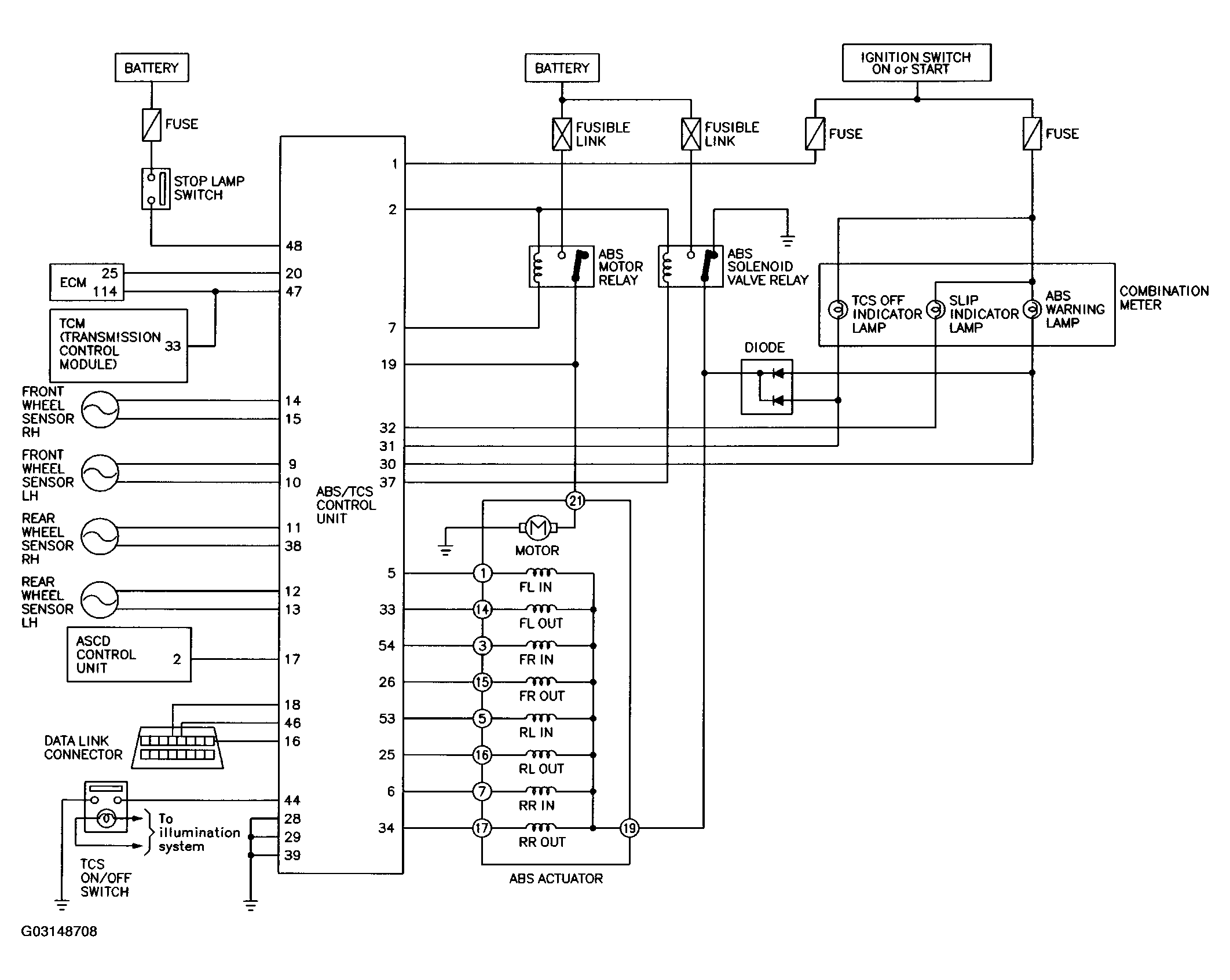

Fig 1: TCS Schematic
G03148708
