Component Locations

COMPONENT LOCATIONS

Component

Location

Horn Relay

⁽¹⁾ Left Side Of Engine Compartment, In Fuse/Relay Box

Smart Entrance Control Unit (SECU)

⁽²⁾ In Center Console

Tail Light Relay

⁽³⁾ Interior Fuse/Relay Box

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

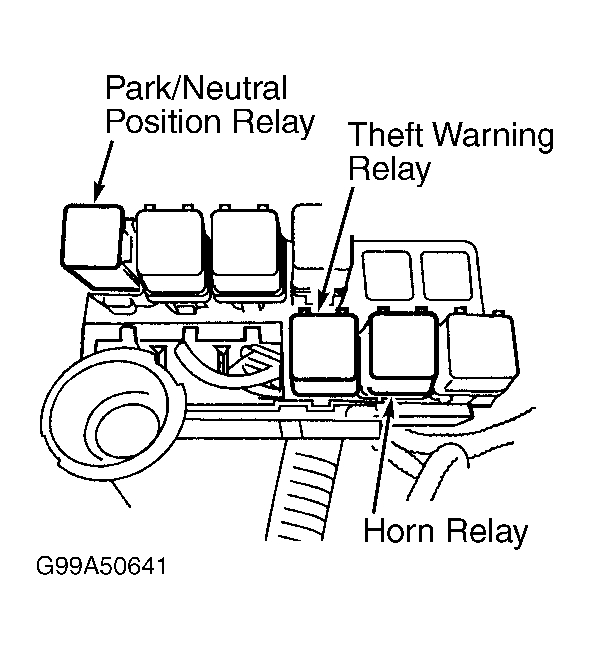

Fig 1: Identifying Horn Relay Location

Courtesy of NISSAN MOTOR CO., U.S.A.

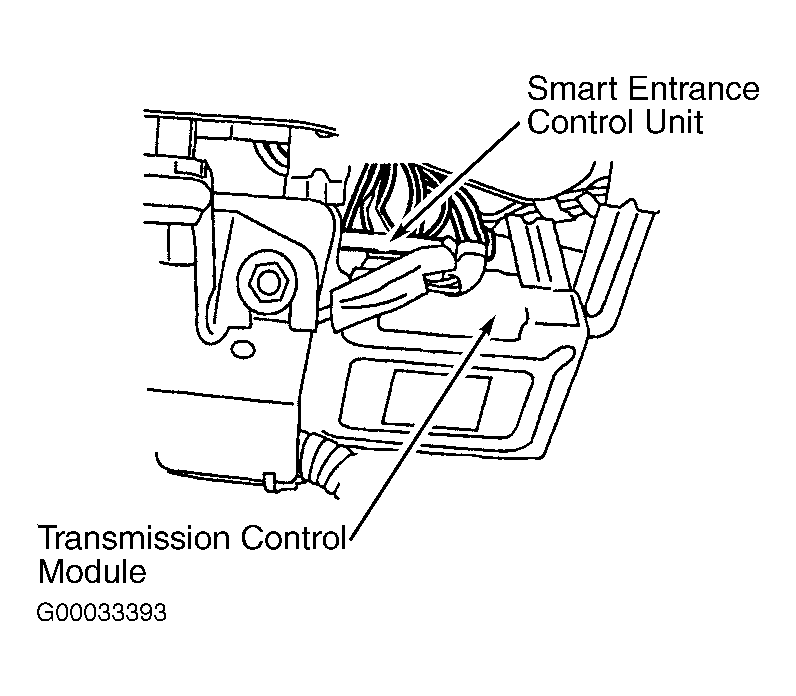

Fig 2: Identifying Smart Entrance Control Unit Location

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Tail Light Relay Location

Courtesy of NISSAN MOTOR CO., U.S.A.
