COMPONENT LOCATIONS
Component
Location
Antenna
Inside Smart Entrance Control Unit (SECU)
Multi-Remote Control Relays
(1)
Left Side Of Engine Compartment, In Relay Box
Smart Entrance Control Unit (SECU)
(2)
Under Left Side Of Instrument Panel
(1)
See
Fig 1
.
(2)
See
Fig 2
.
Fig 1: Identifying Multi-Remote Relay Locations
Courtesy of NISSAN MOTOR CO., U.S.A.

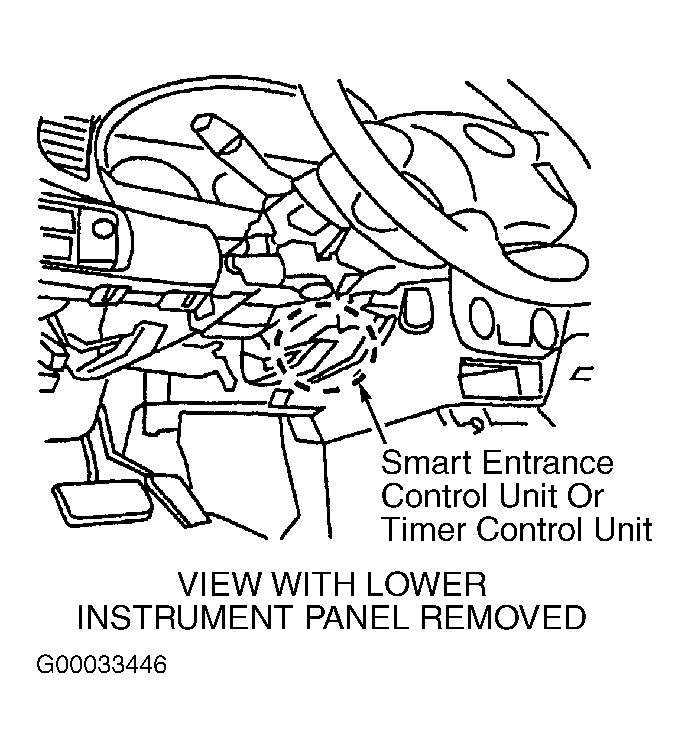

Fig 2: Identifying Smart Entrance Control Unit (SECU) Location
Courtesy of NISSAN MOTOR CO., U.S.A.
