Key Fob Battery & Function Check

NOTE: For Symptom Chart, see SYMPTOM CHART .

For key fob battery and function check, see Fig 1 and Fig 2 .

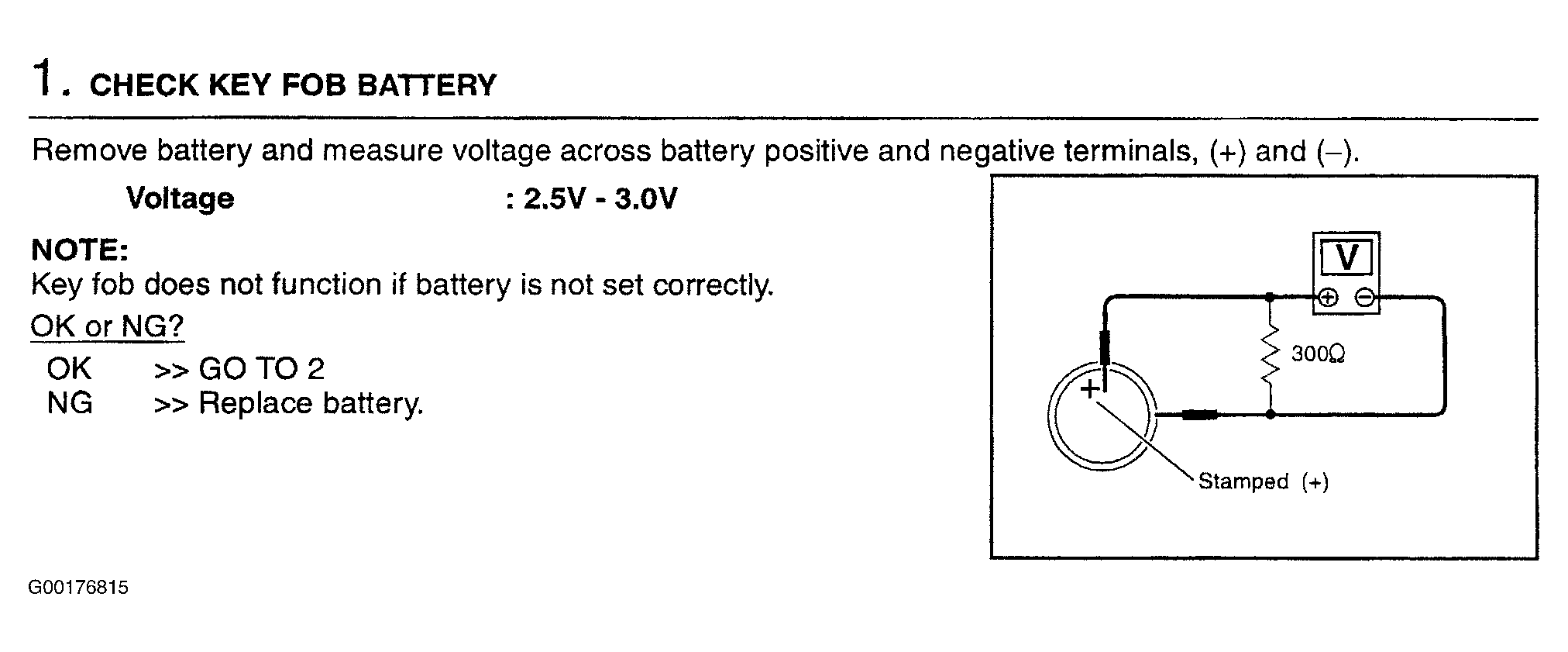

Fig 1: Identifying Key Fob Battery & Function Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

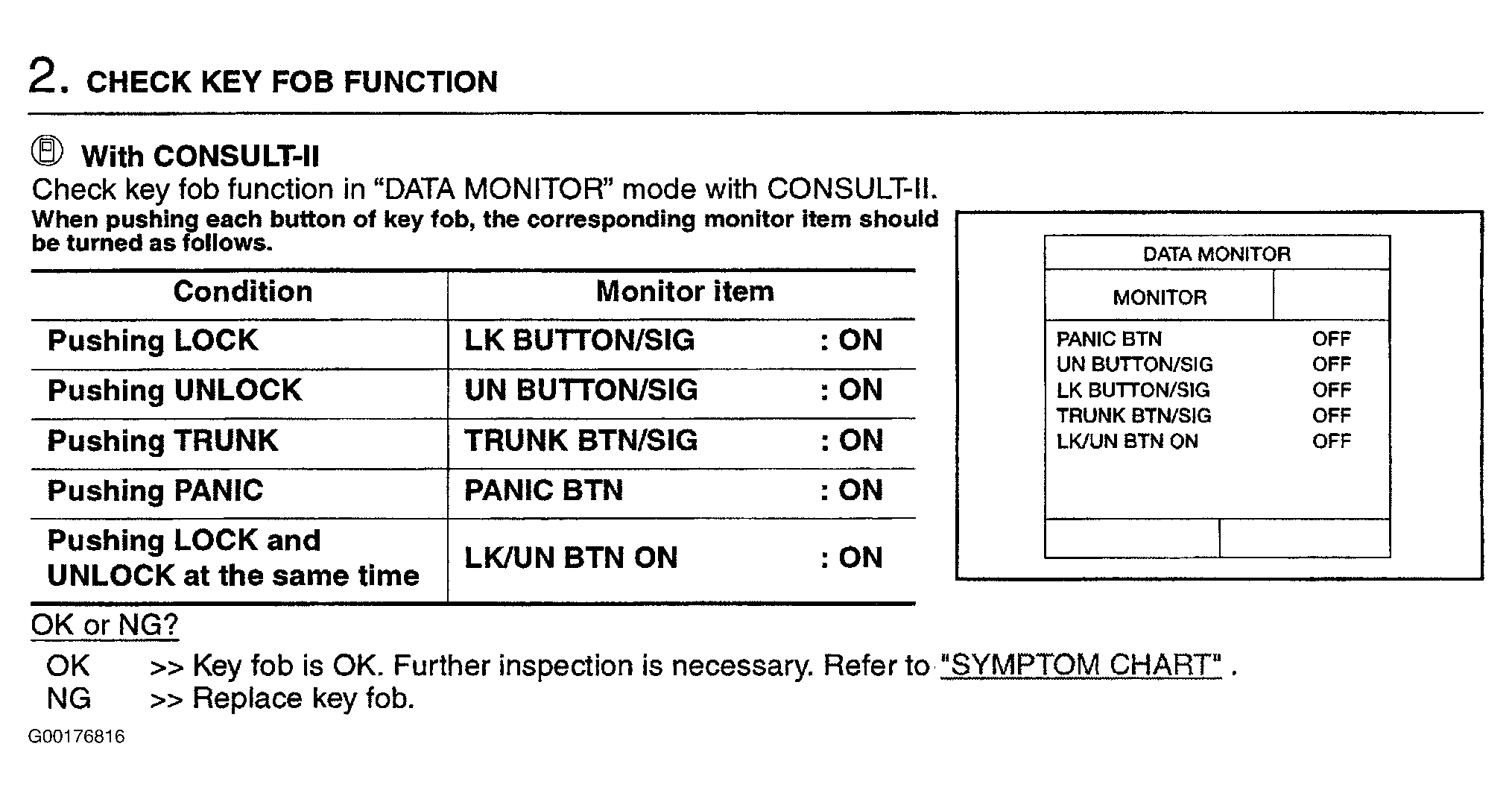

Fig 2: Identifying Key Fob Battery & Function Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
