Key Switch (Insert) Check

NOTE: For connector symbols, see HOW TO READ CONNECTOR SYMBOLS .

For key switch (insert) check, see Fig 1 and Fig 2 .

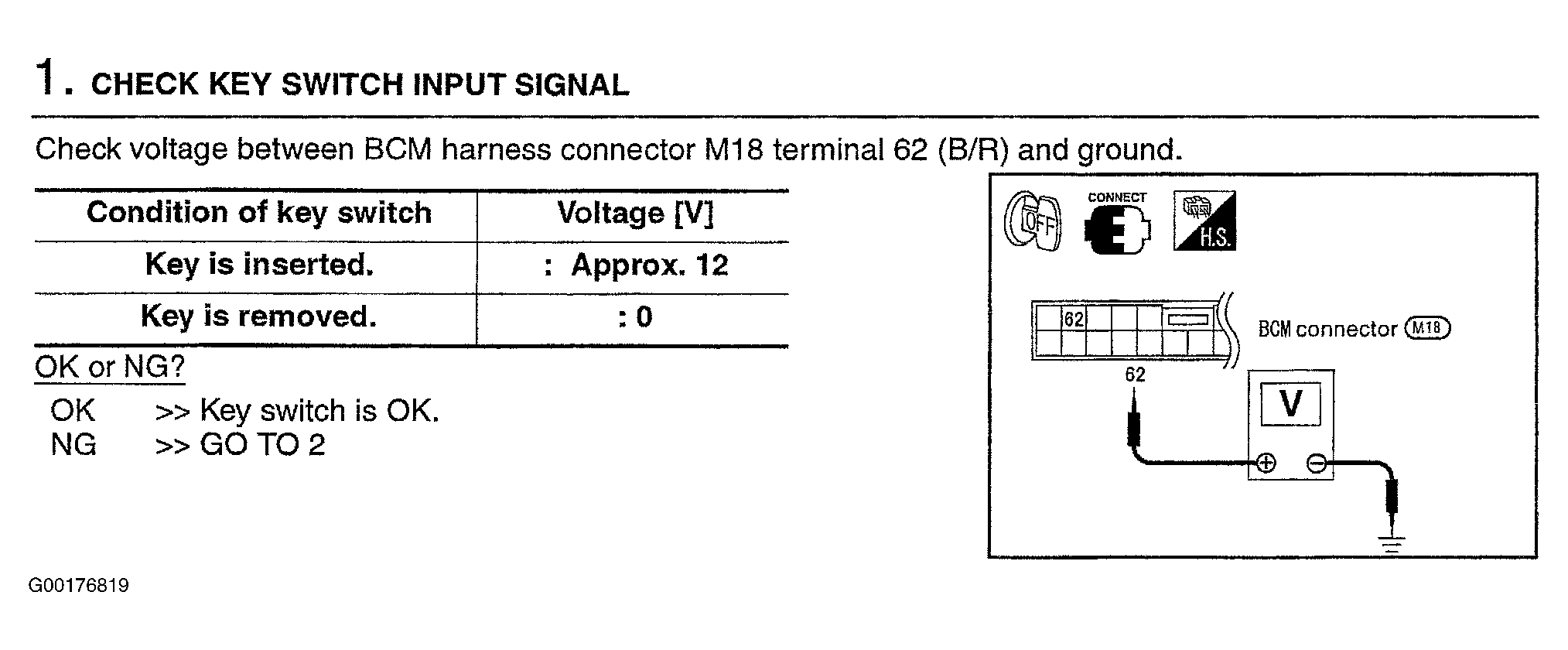

Fig 1: Identifying Key Switch (Insert) Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

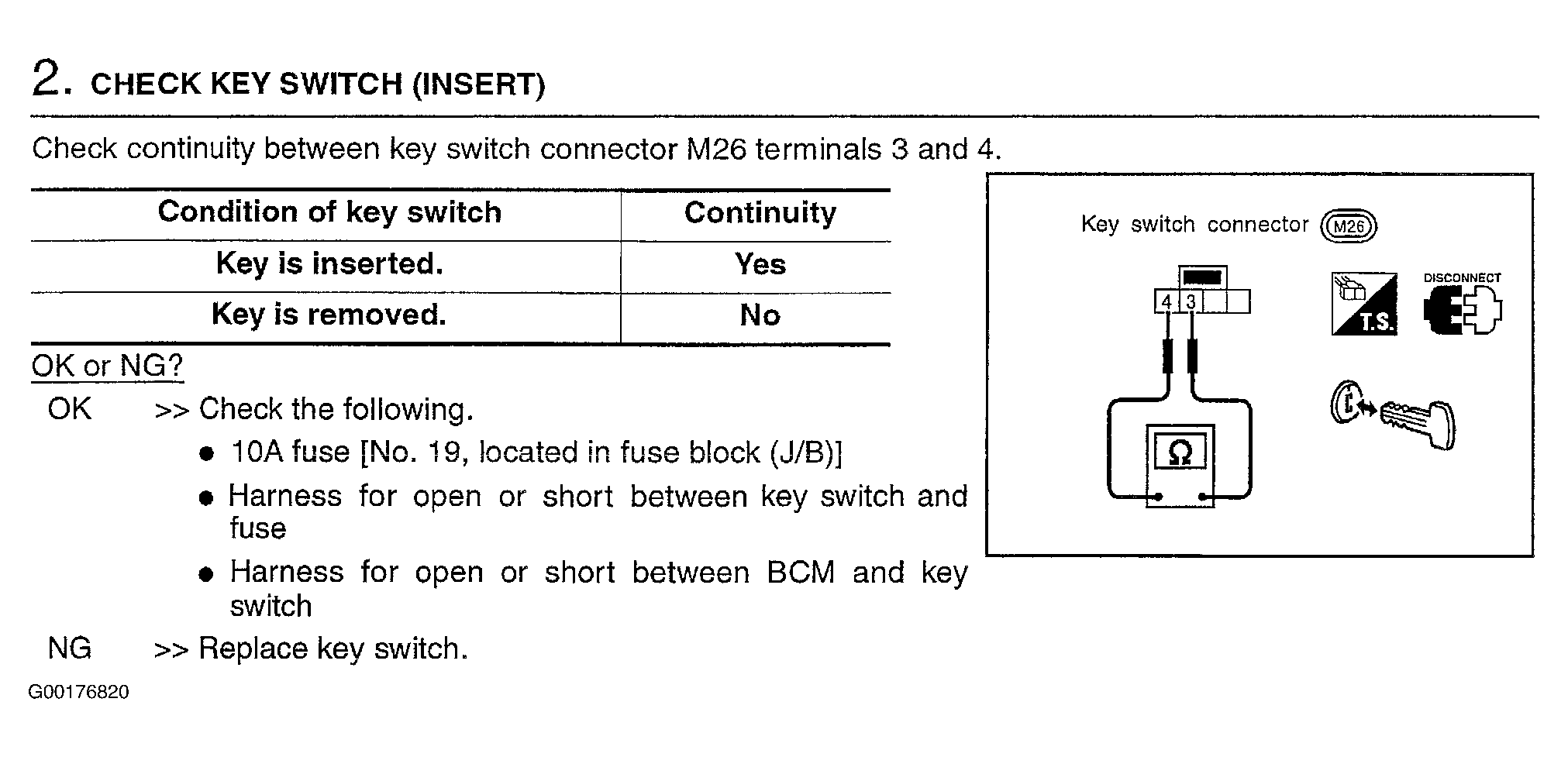

Fig 2: Identifying Key Switch (Insert) Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
