Encoder & Limit Switch Check (Driver Side)

NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS  .

1. For step 1, see Fig 1 .
2. For step 2, see Fig 2 .
3. For step 3, see Fig 3 .

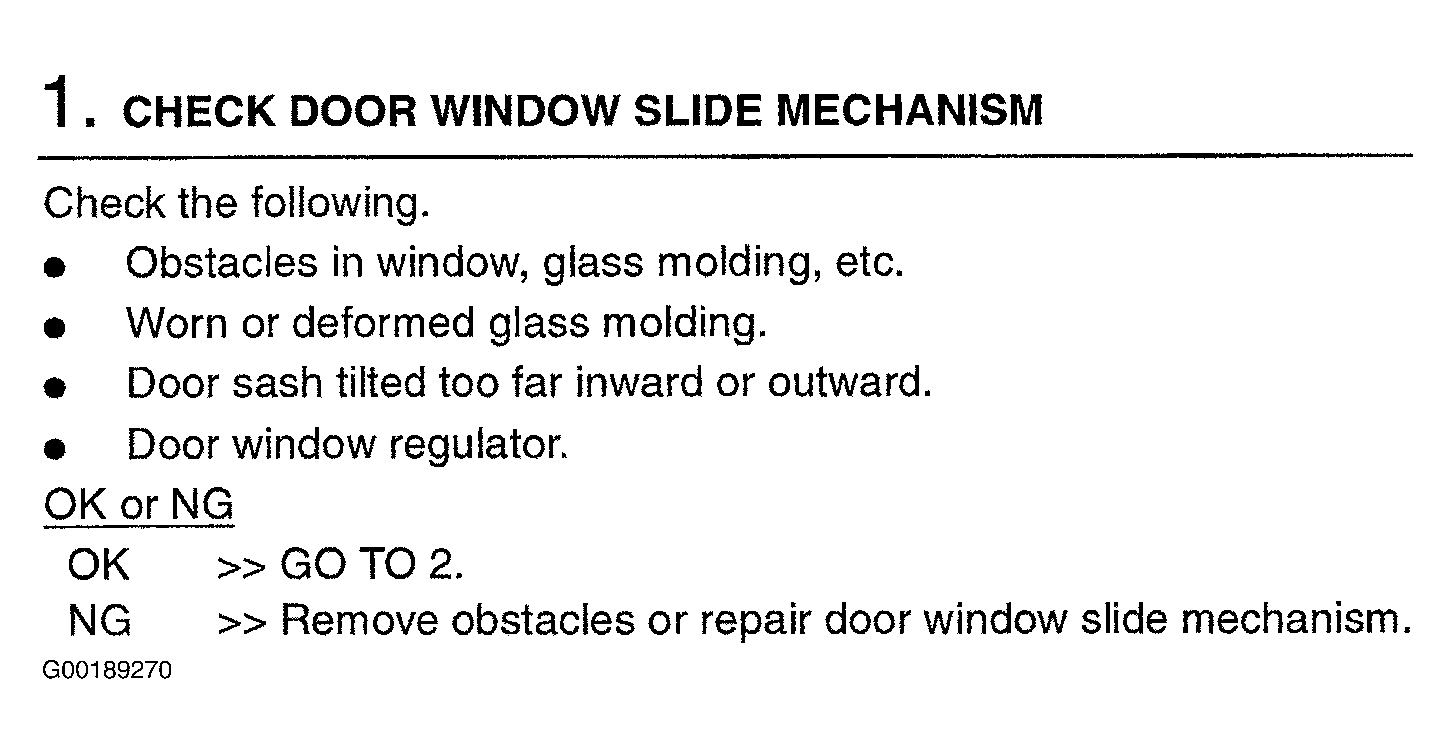

Fig 1: Identifying Encoder & Limit Switch Check (Driver Side), Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

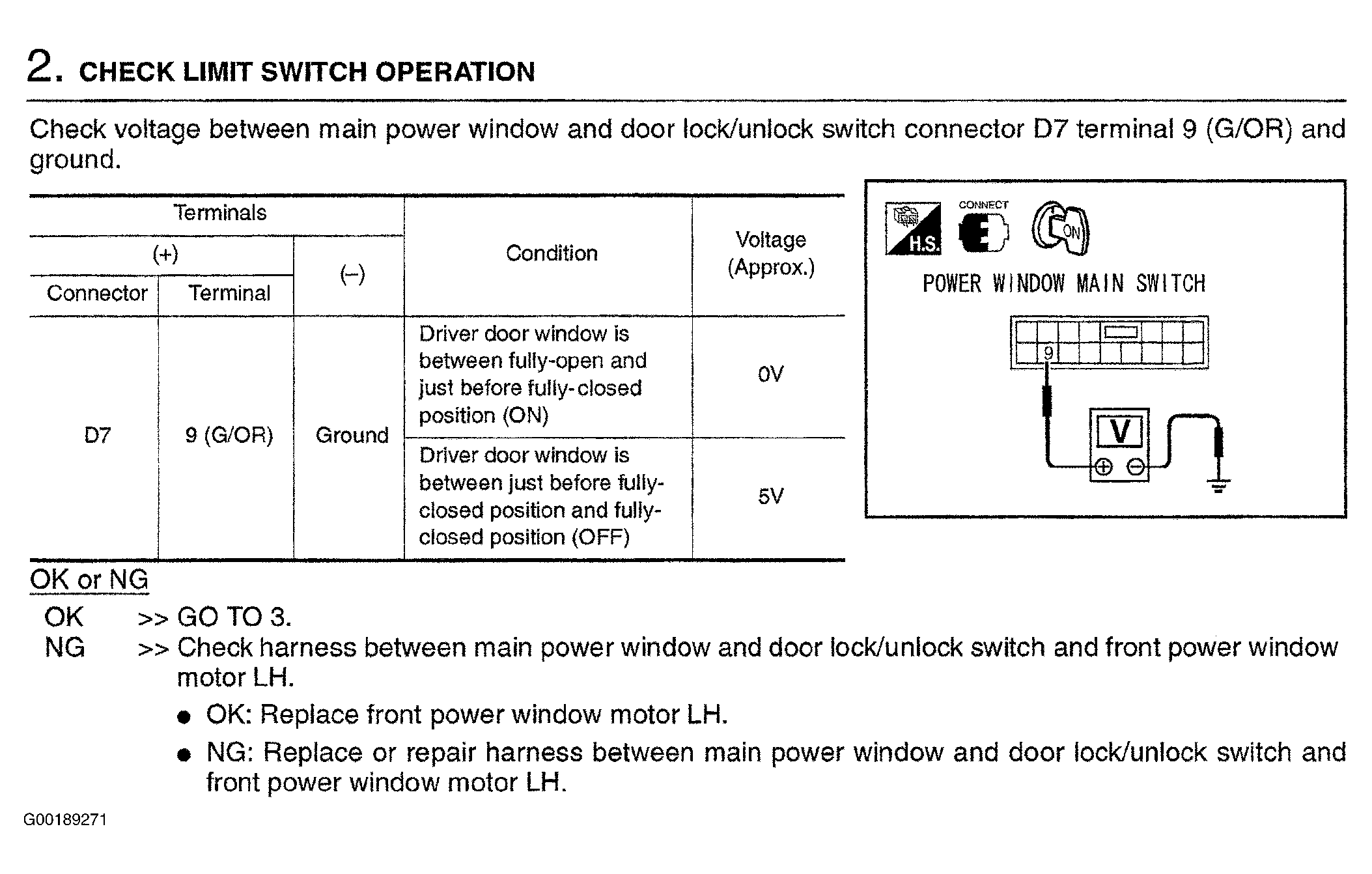

Fig 2: Identifying Encoder & Limit Switch Check (Driver Side), Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

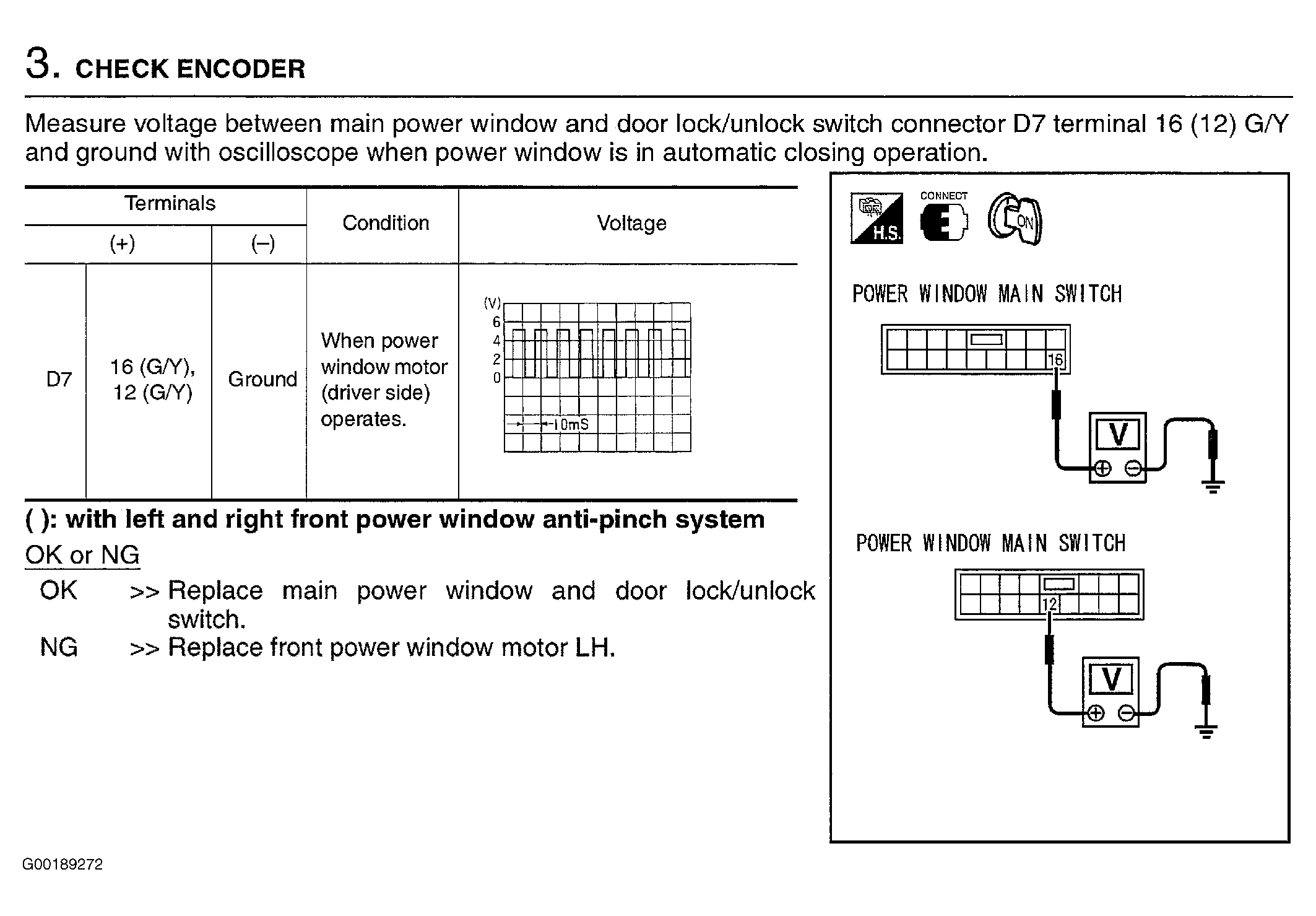

Fig 3: Identifying Encoder & Limit Switch Check (Driver Side), Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
