Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Fuse & Fusible Link Box | On left front of engine compartment, near battery. |

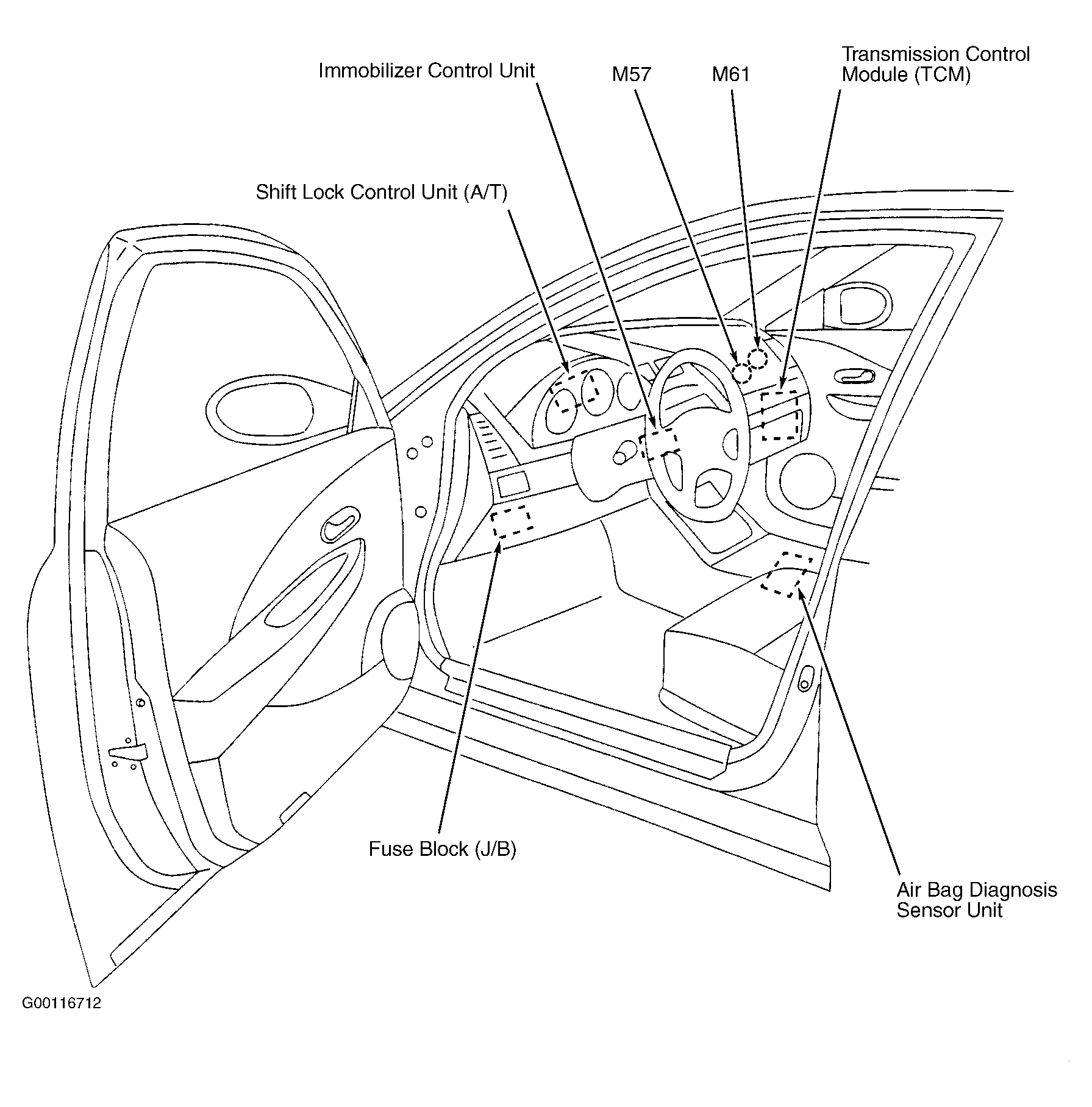

| Fuse Block (J/B) | Behind left side of dash. See Figure. |
| Fusible Link Box (Battery) | On left front of engine compartment, near battery. |
| Intelligent Power Distribution Module Engine Room (IPDM E/R) | On right front of engine compartment, behind headlight. |
