Torque Converter Clutch Control Valve Operation
›
Notes
Torque Converter Clutch Control Valve Operation: Notes

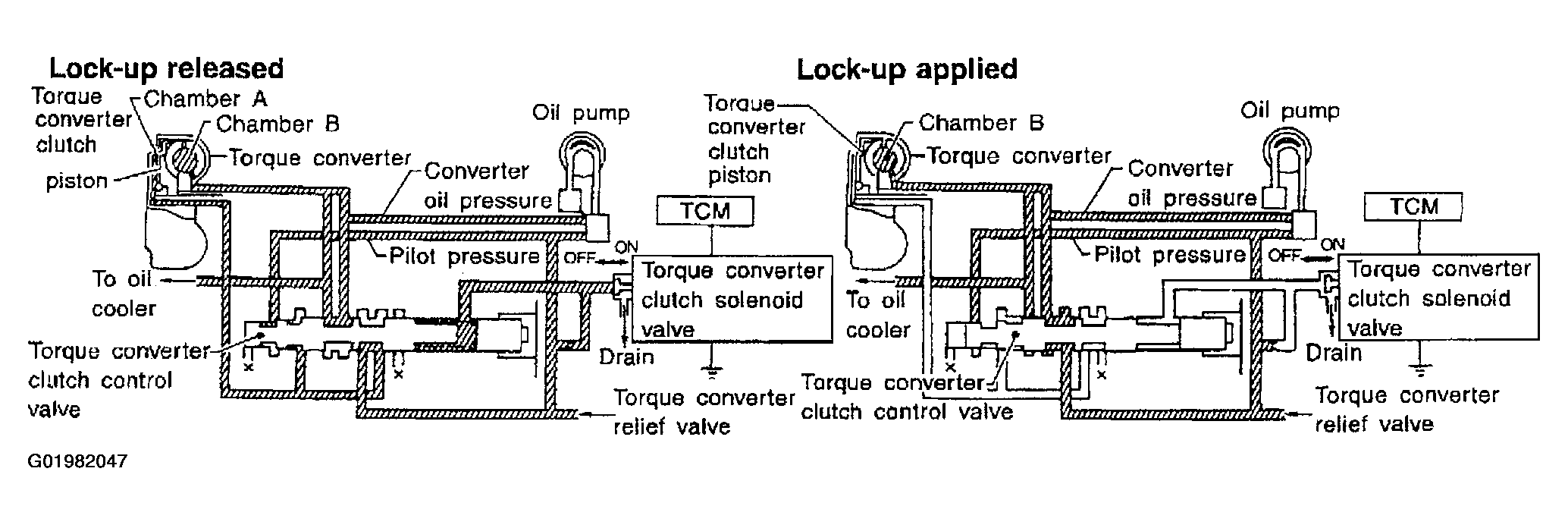

Fig 1: Identifying Torque Converter Clutch Control Valve Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
