Automatic Transaxle
›
Shift Control System
›
Control Device
Control Device

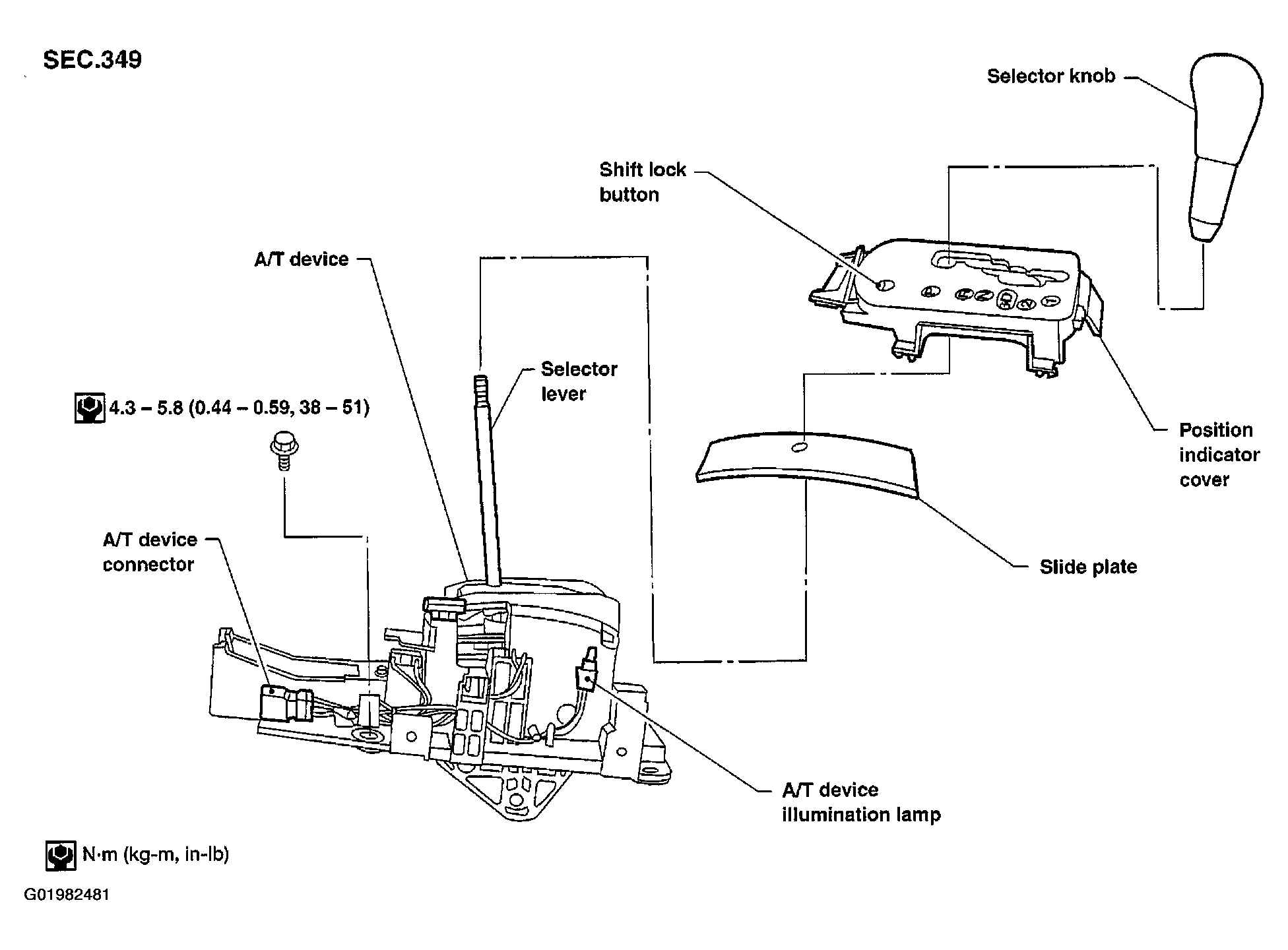

Fig 1: Identifying Control Device
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
