FixVault
Home
›
Nissan-Datsun
›
2002
›
Altima SE, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle
›
Repair For Component Parts
›
Band Servo Piston Assembly
›
Components
Band Servo Piston Assembly: Components

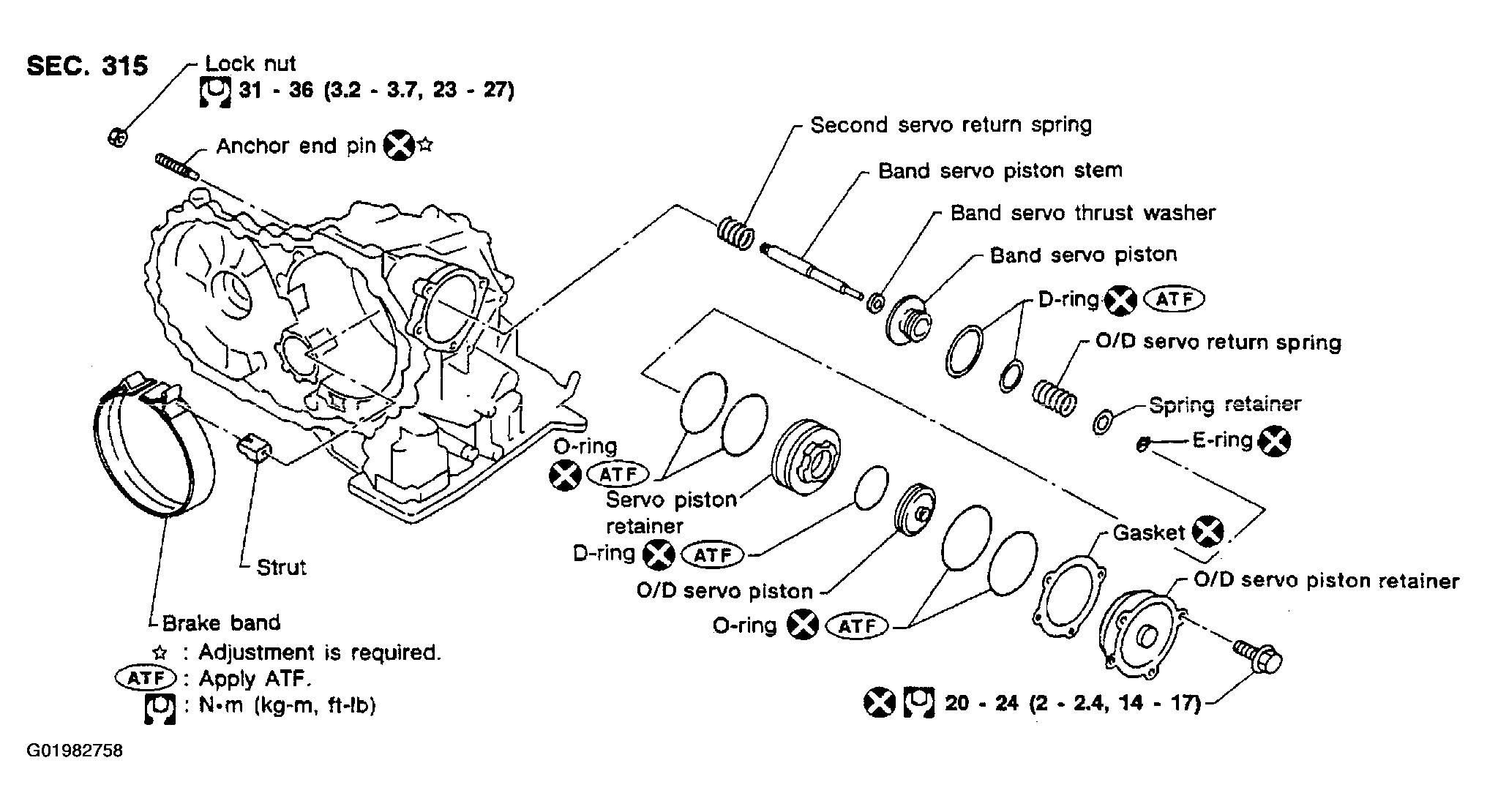

Fig 1: Identifying Band Servo Piston Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
