High Clutch Components
›
Notes
High Clutch Components: Notes

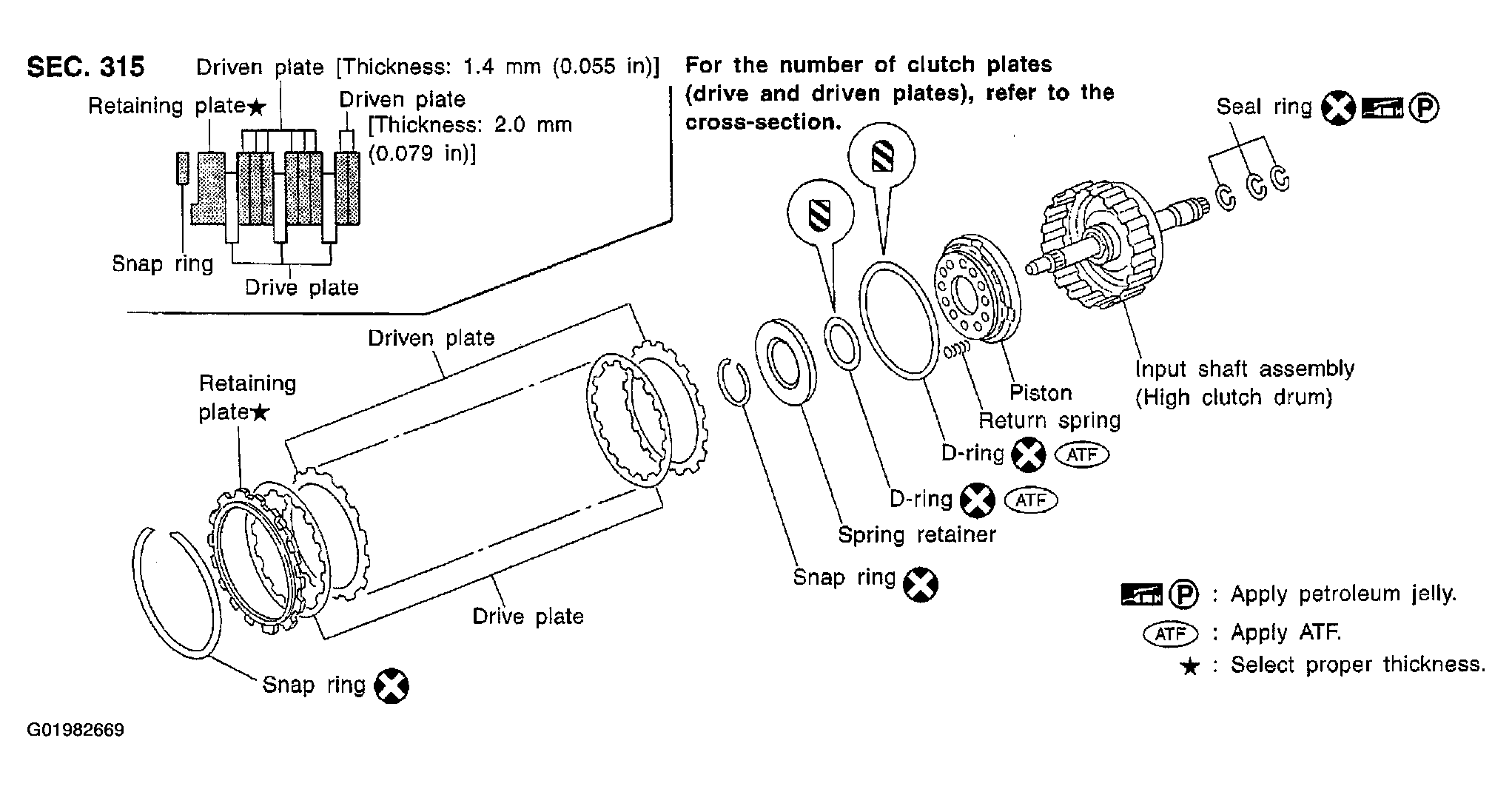

Fig 1: Exploded View Of High Clutch Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
