Engine Controls - Self-Diagnostics
›
Connector Identification
›
Main Harness
Main Harness

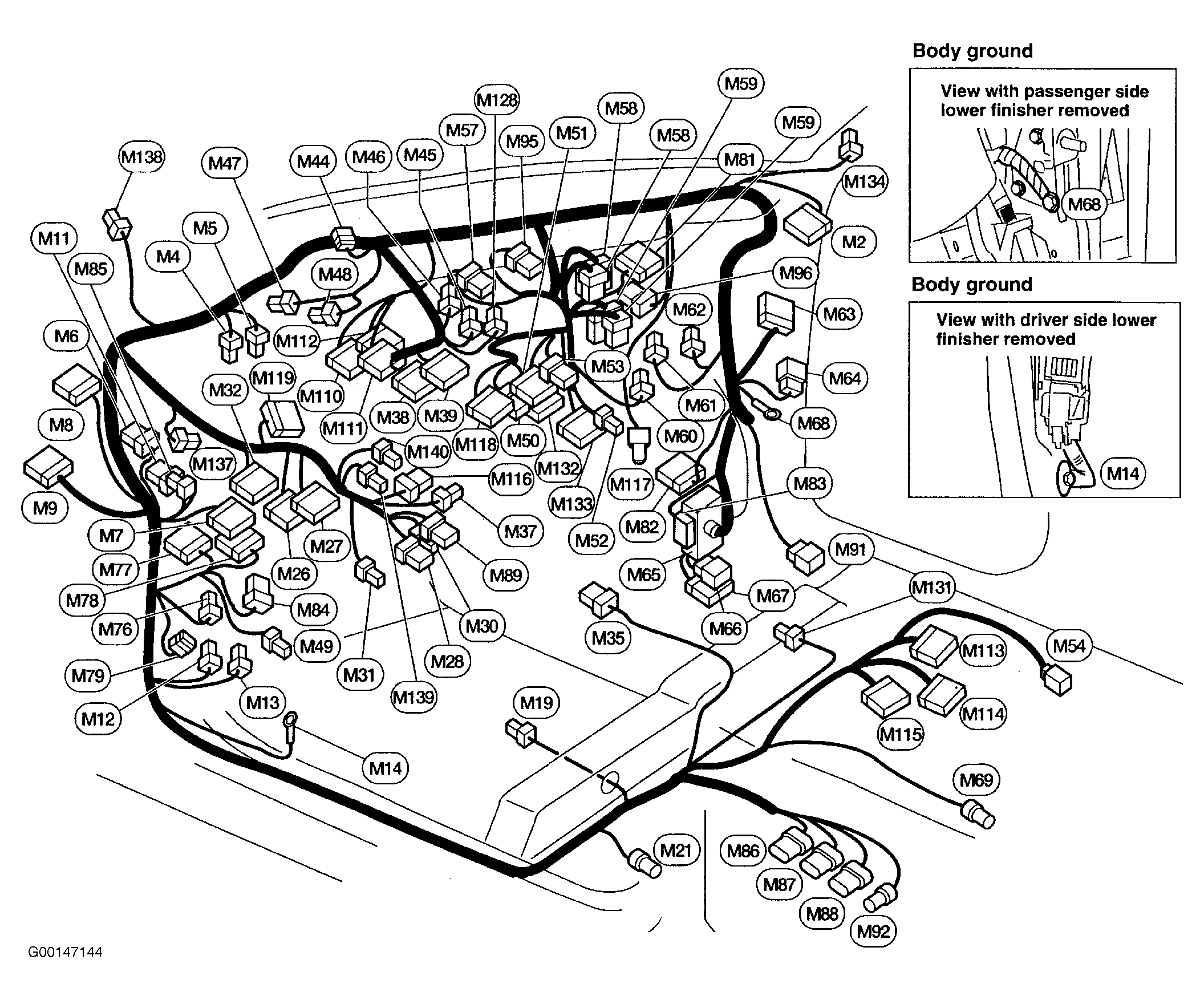

Fig 1: Identifying Main Harness Routing (Frontier 2.4L)
Courtesy of NISSAN MOTOR CO., U.S.A.

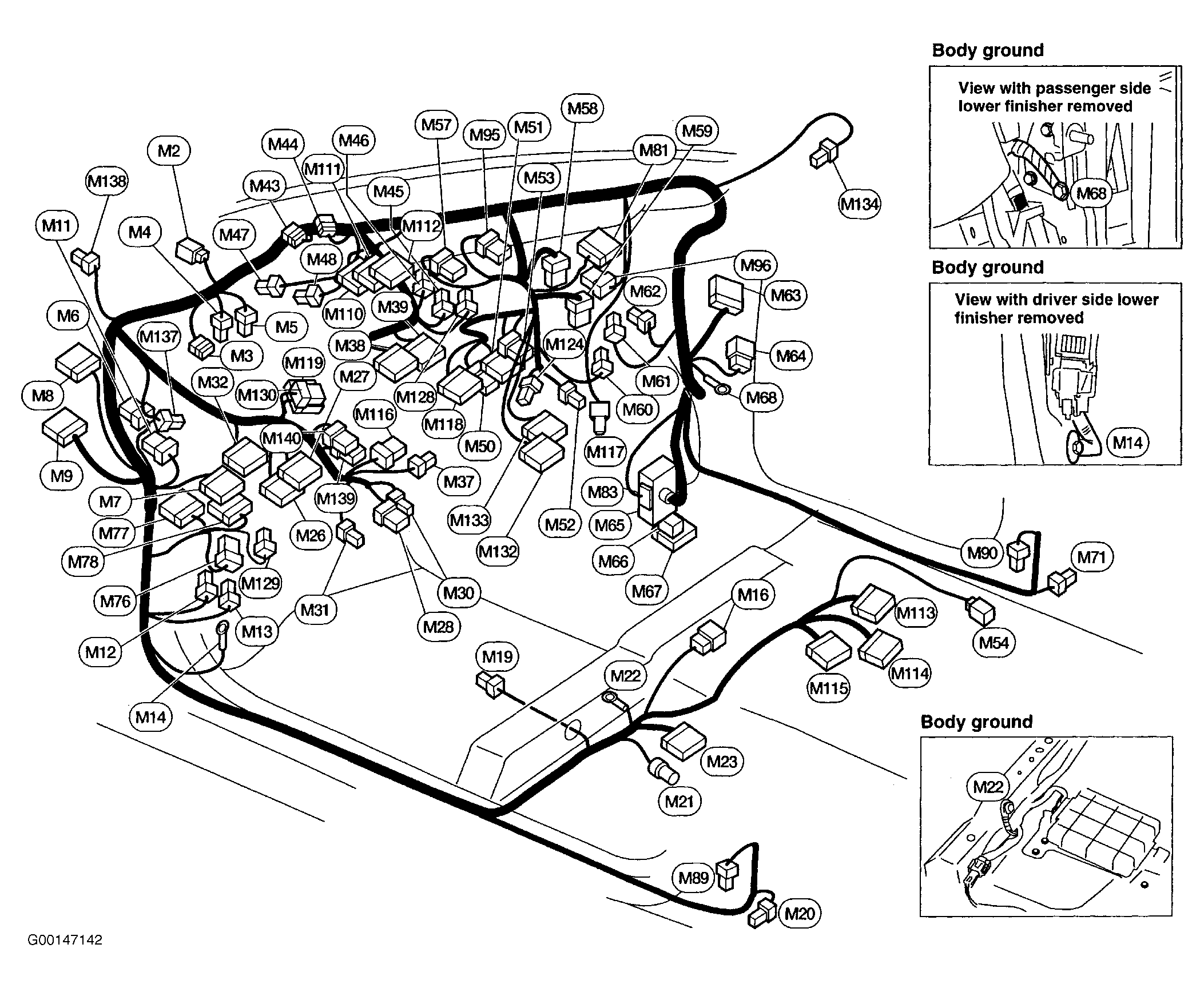

Fig 2: Identifying Main Harness Routing (Frontier 3.3L)
Courtesy of NISSAN MOTOR CO., U.S.A.

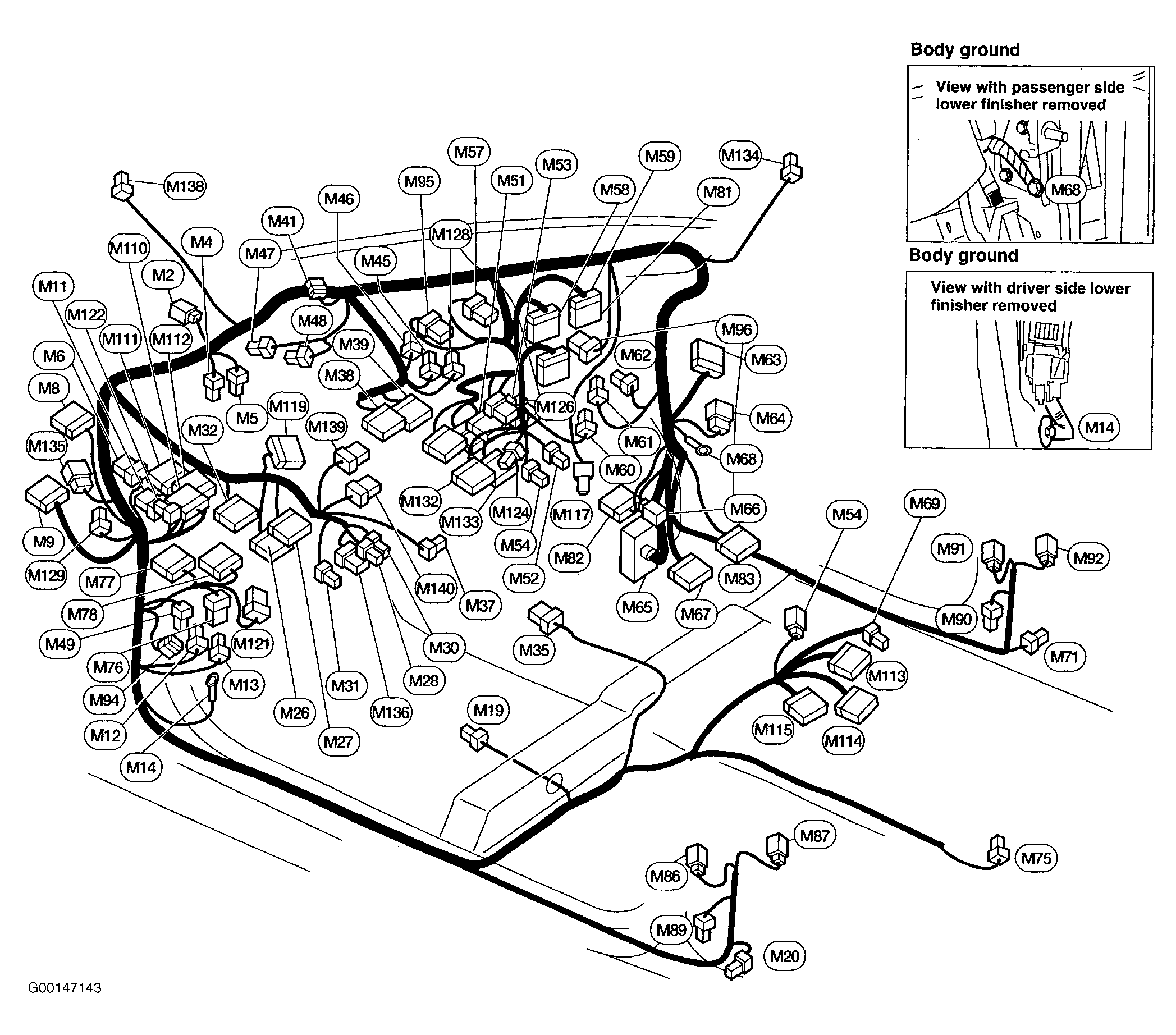

Fig 3: Identifying Main Harness Routing (Xterra)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
