Cross-sectional View

WARNING: This page is about a different variant/trim than selected.

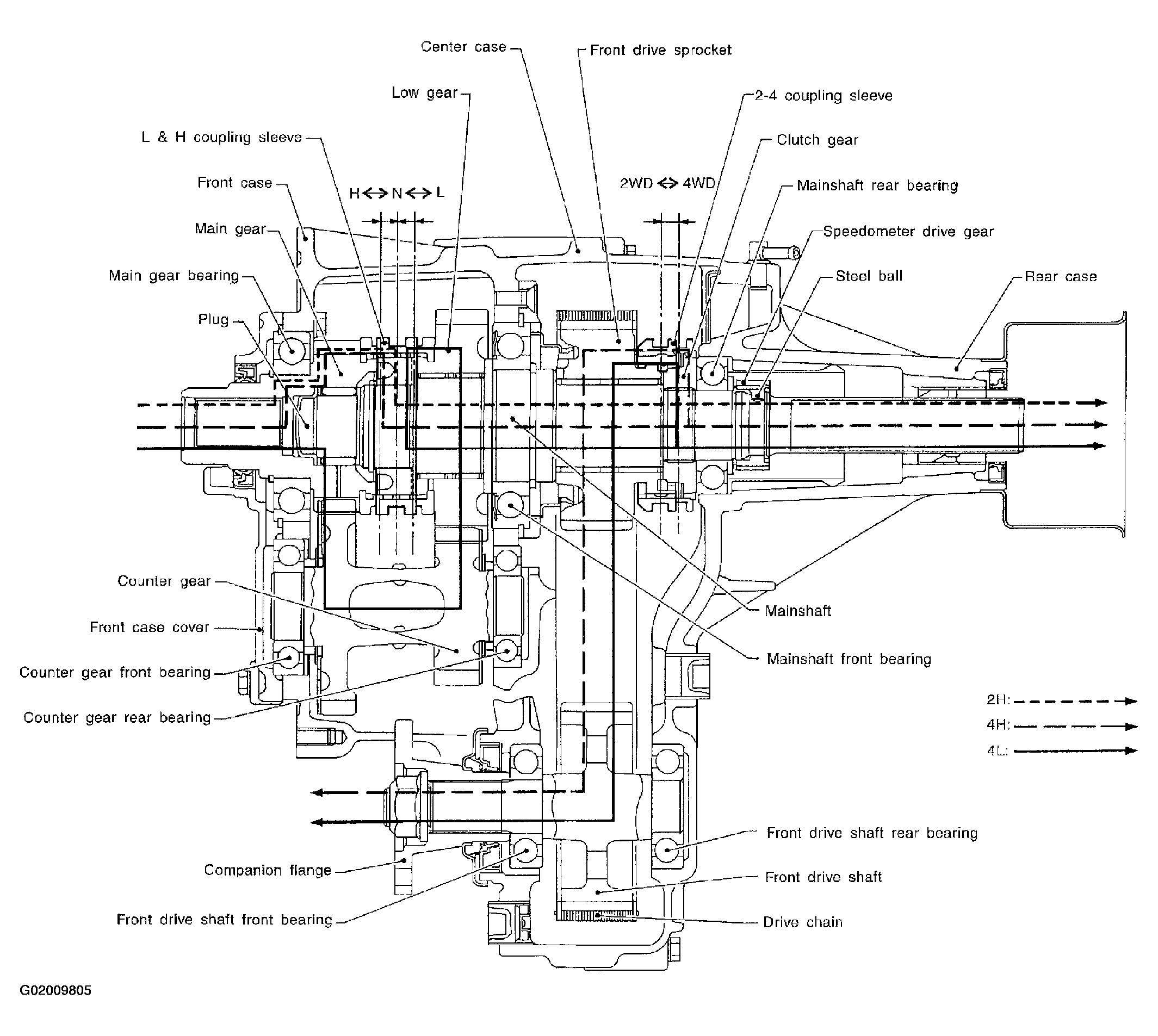

Fig 1: Cross-Sectional View Transfer
G02009805Courtesy of NISSAN MOTOR CO., U.S.A.
