Checking Fluid Level

Check fluid level with engine off.

Check fluid level referring to the scale on the reservoir tank.

Use "HOT" range for fluid temperatures of 50 - 80°C (122 - 176°F). Use "COLD" range for fluid temperatures of 0 - 30°C (32 - 86°F).

CAUTION:

Do not overfill.
Recommended fluid is Genuine NISSAN PSF II or equivalent.

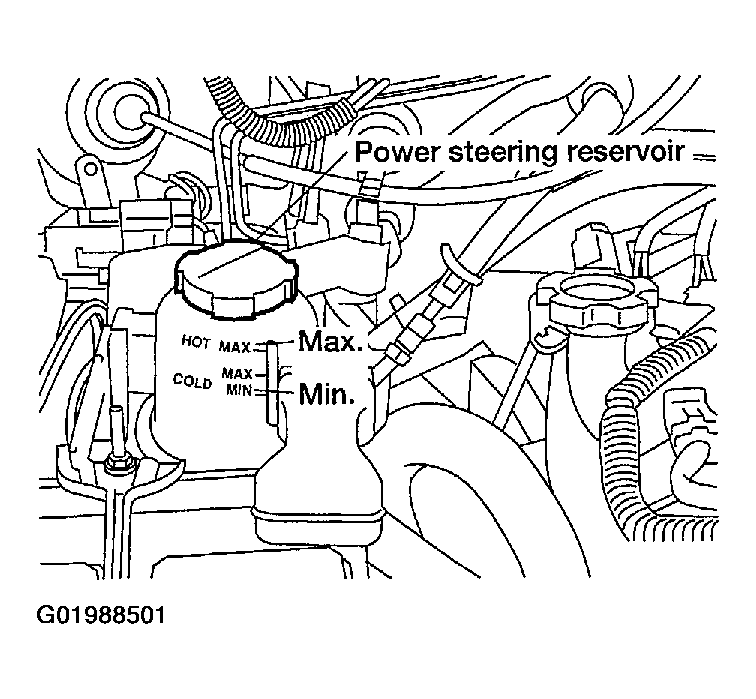

Fig 1: Checking Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.
