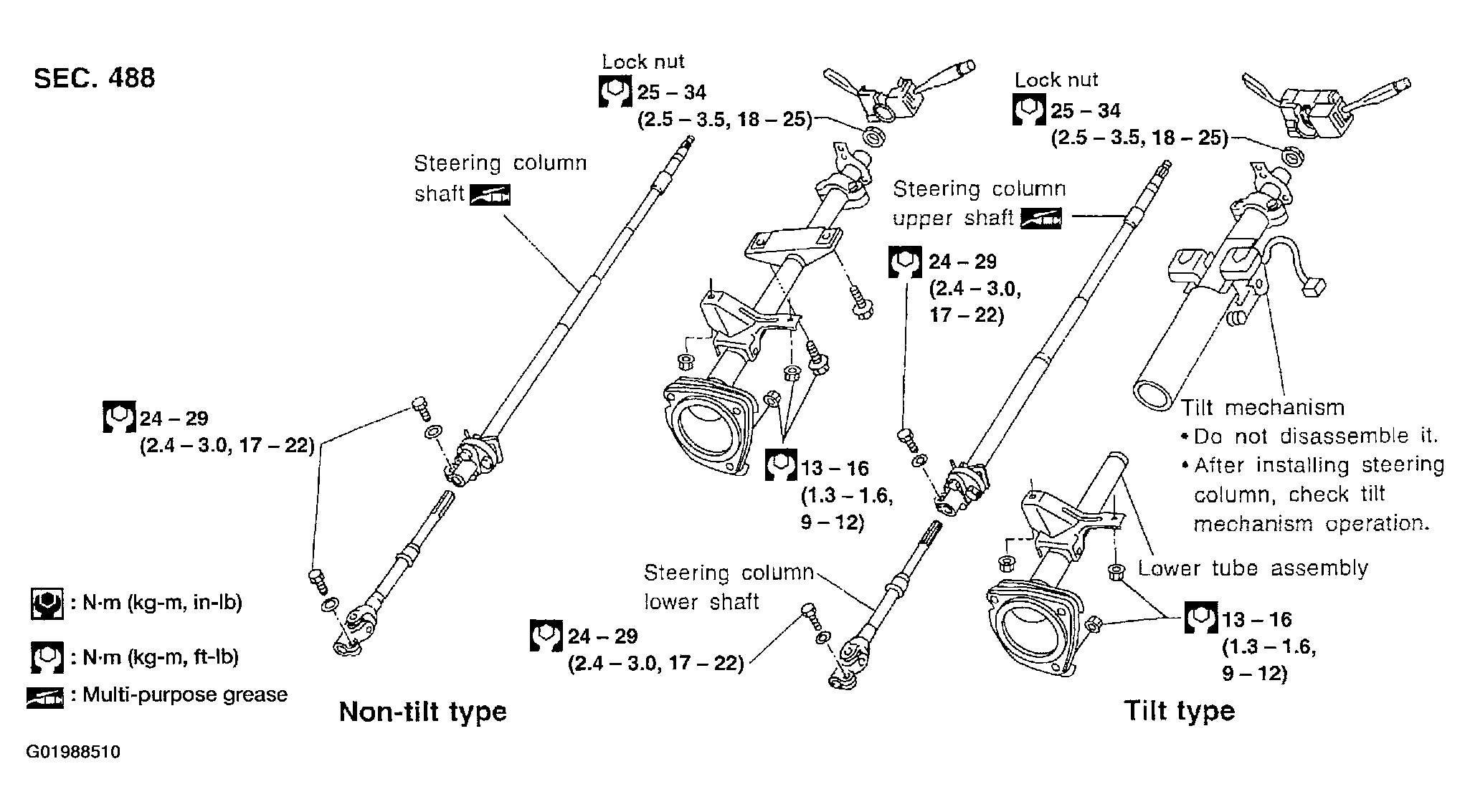

Disassembly and Assembly
- When disassembling and assembling, unlock steering lock with key.
- Install lock nut on steering column shaft and tighten the nut to specification.
Torque Specification: 25 - 34 N.m (2.5 - 3.5 kg.m, 18 - 25 ft.lb)
- Steering lock
- Break self-shear type screws using a drill or other appropriate tool.
- Install self-shear type screws, then tighten until heads break off.
