Clutch Release Mechanism: Components

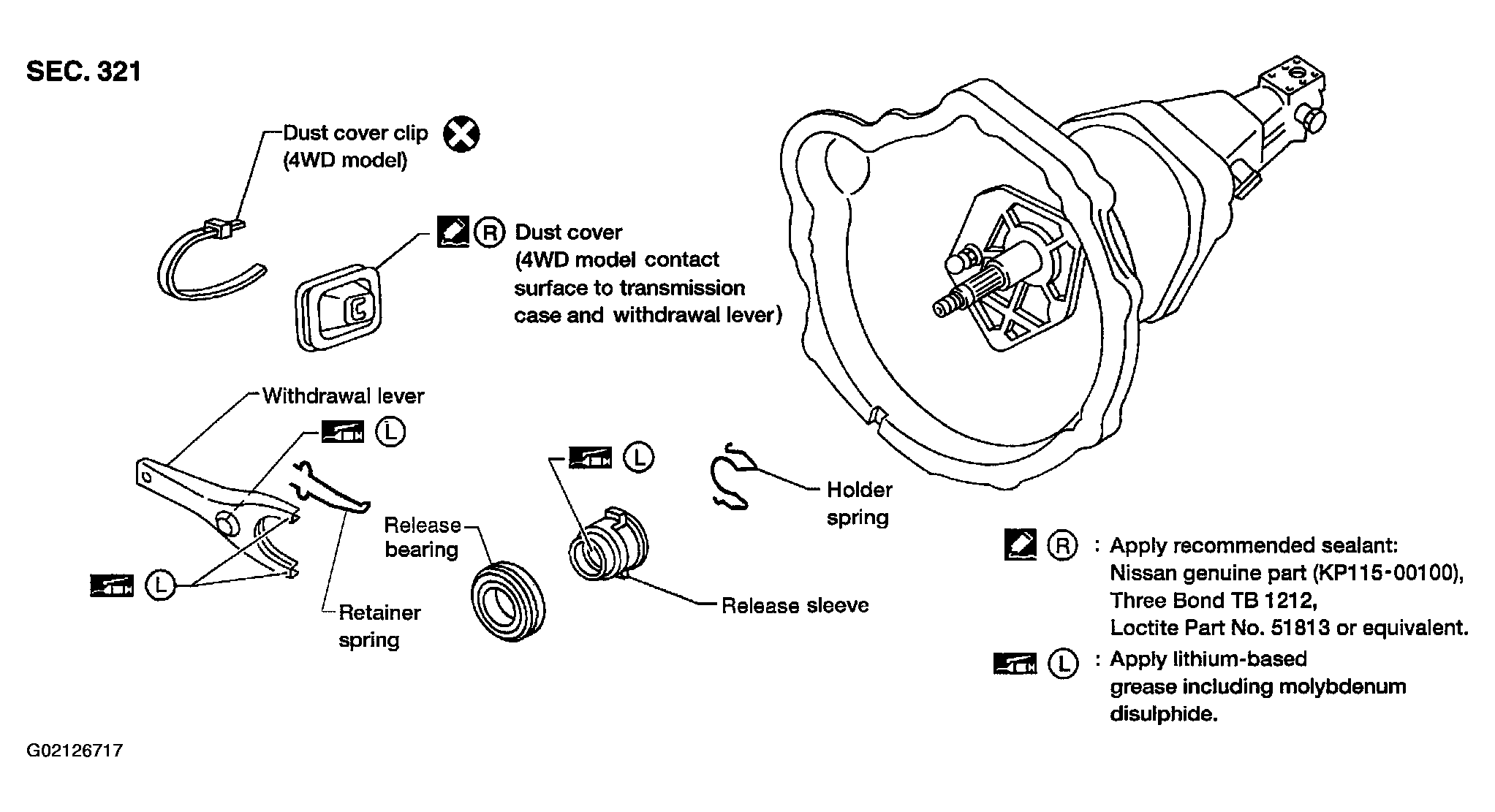

Fig 1: Exploded View Of Clutch Release Mechanism Components
G02126717Courtesy of NISSAN MOTOR CO., U.S.A.
