Nissan-Datsun
›
2002
›
Maxima GLE
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Remote Keyless Entry System
›
Trouble Shooting
›
Consult-II Inspection Procedure
›
Data Monitor
Data Monitor

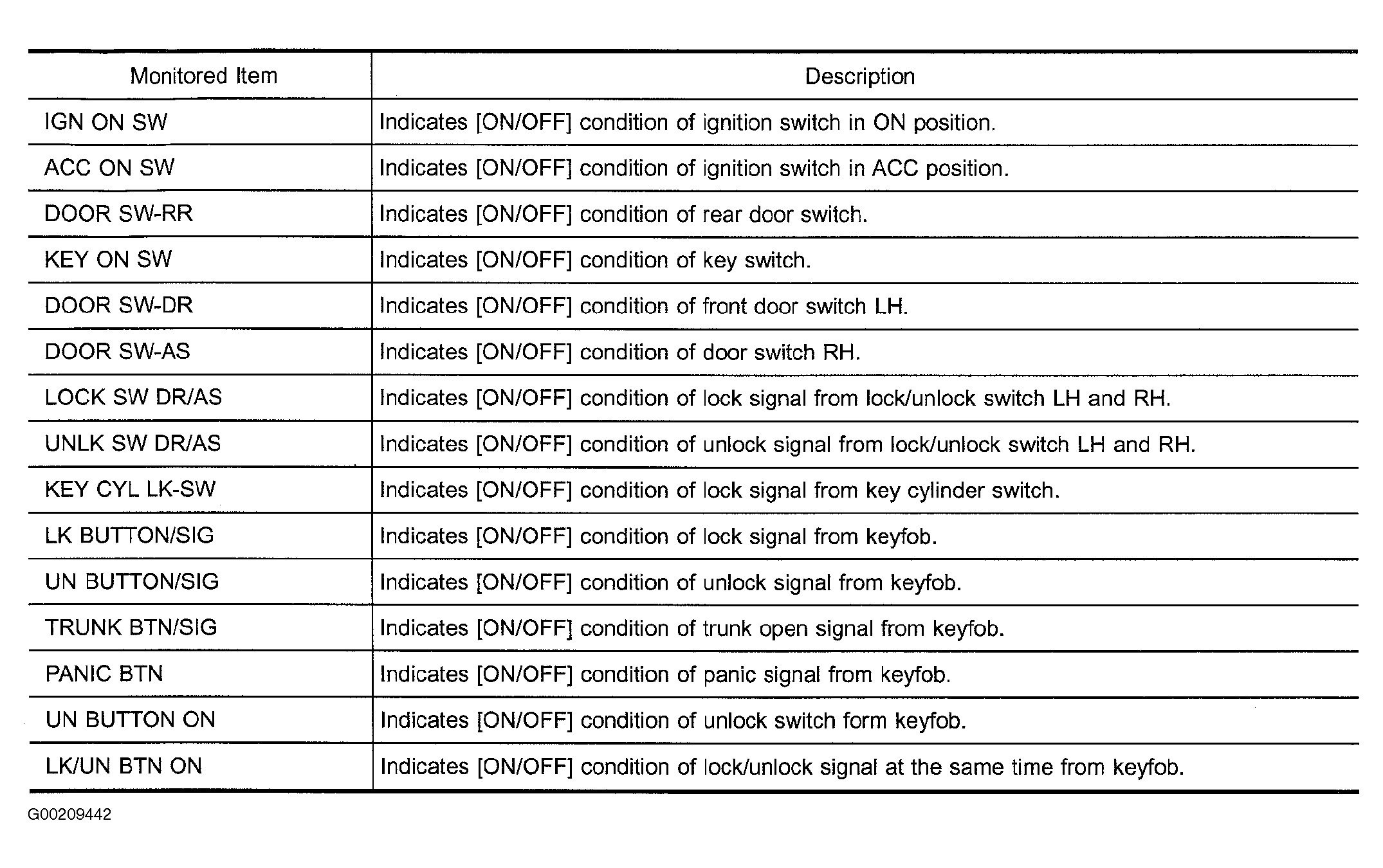

Fig 1: Identifying Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
