Diagnostic Procedure 3 (Reclining Encoder Check)

For diagnostic procedure 3 (reclining encoder check), see Fig 1 -Fig 4 .

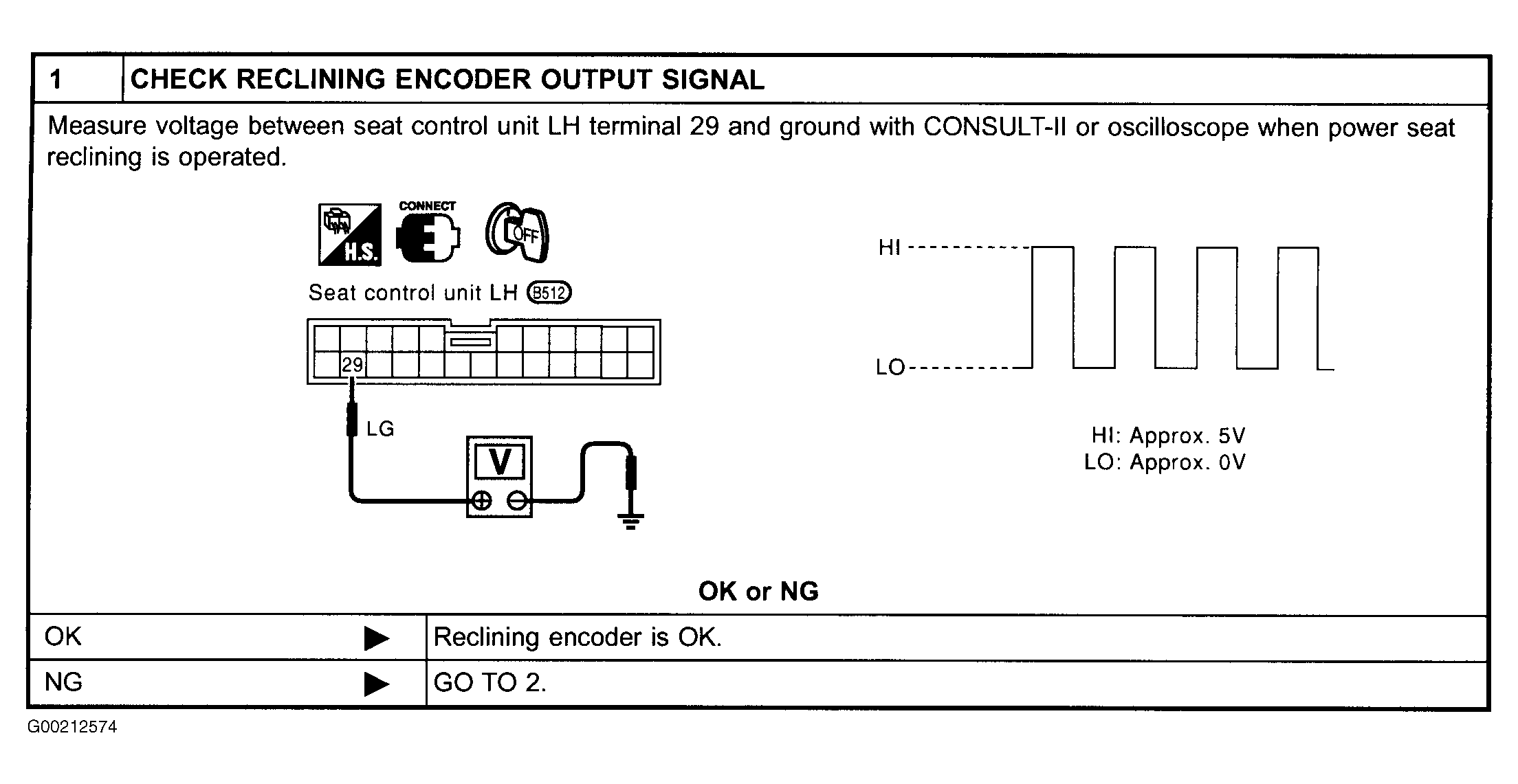

Fig 1: Identifying Diagnostic Procedure 3 (Reclining Encoder Check), Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Diagnostic Procedure 3 (Reclining Encoder Check), Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

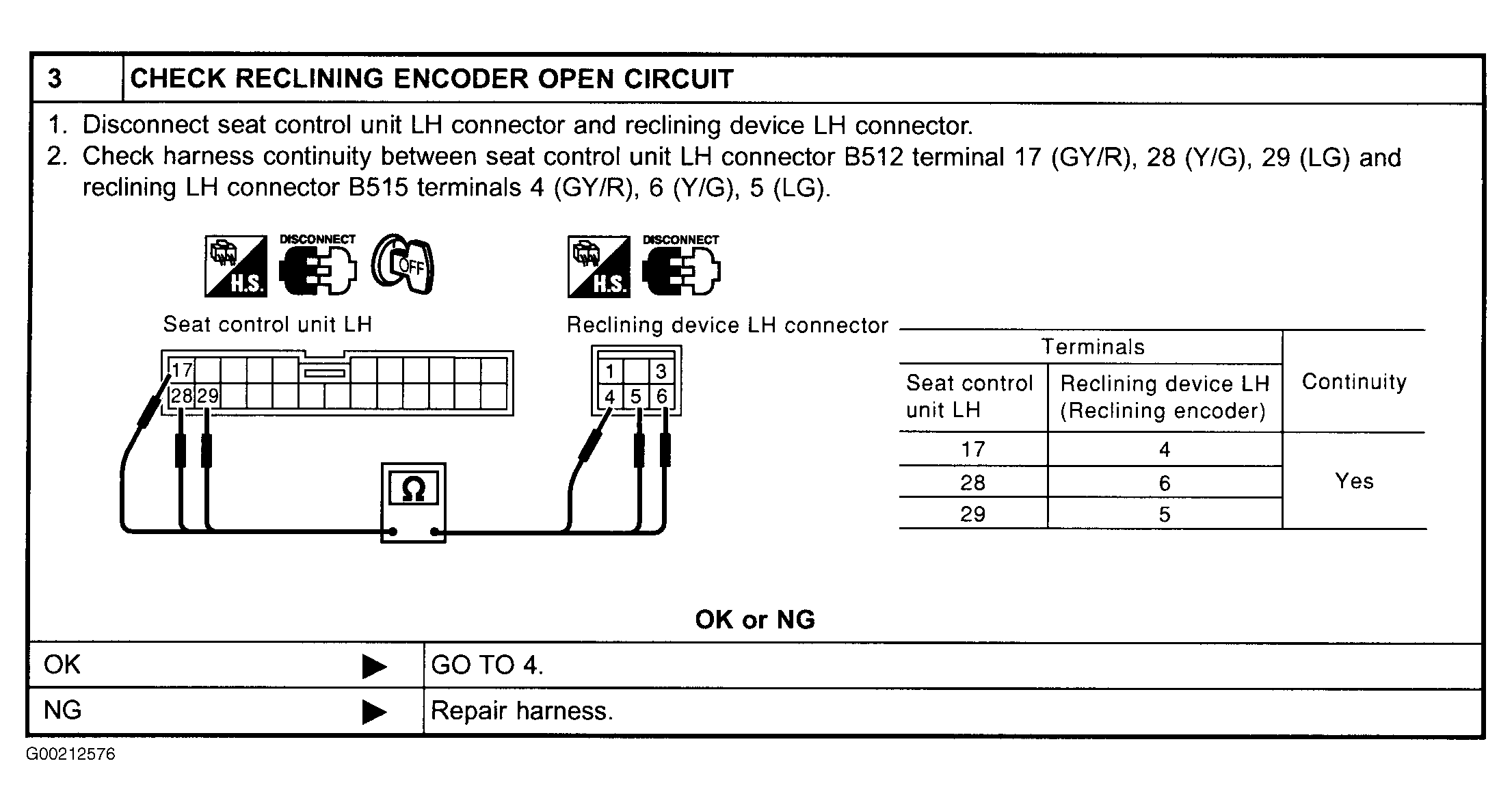

Fig 3: Identifying Diagnostic Procedure 3 (Reclining Encoder Check), Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.

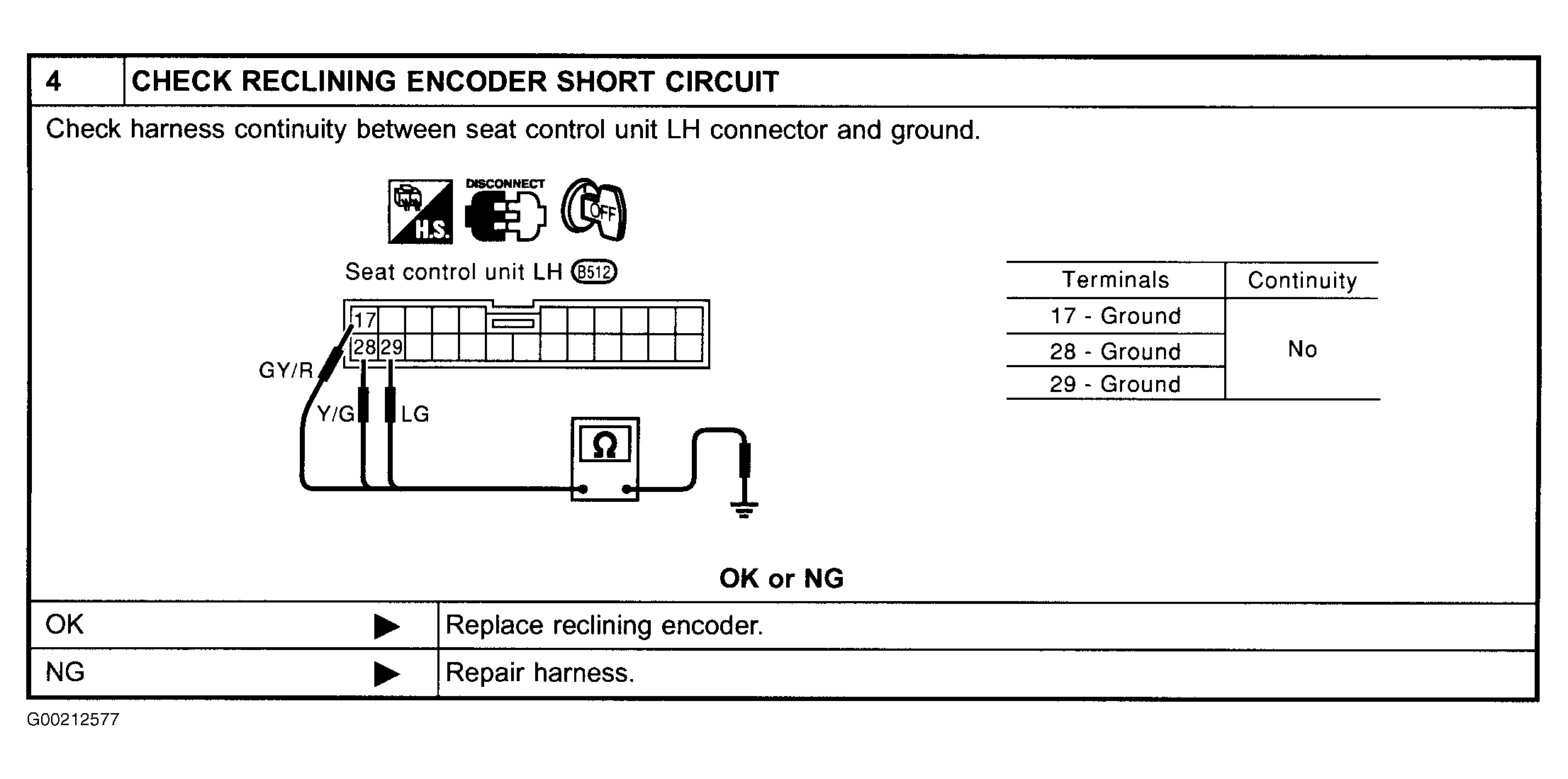

Fig 4: Identifying Diagnostic Procedure 3 (Reclining Encoder Check), Step 4

Courtesy of NISSAN MOTOR CO., U.S.A.
