Lubrication Circuit

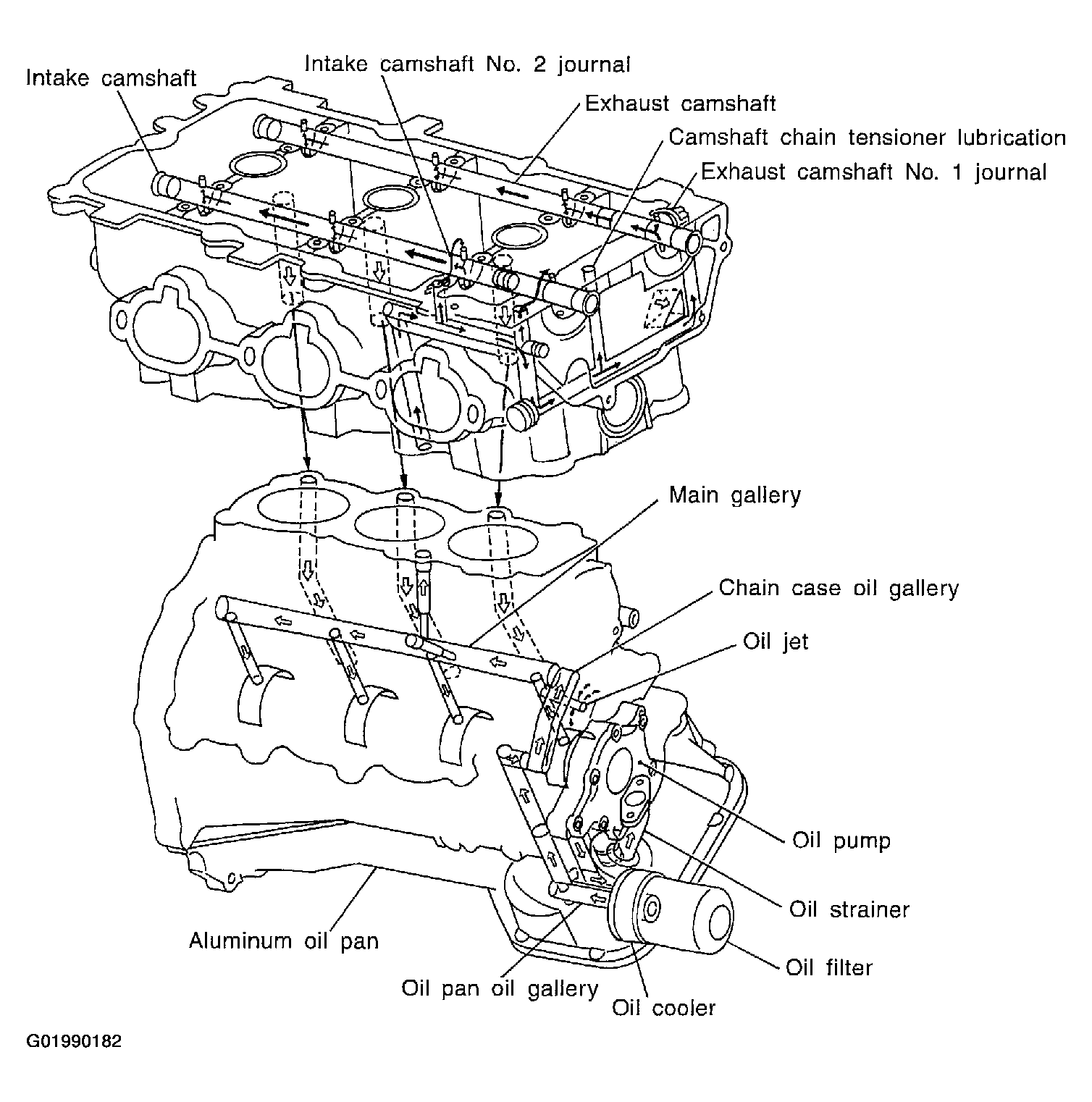

Fig 1: Exploded View Of Engine Lubrication System
Courtesy of NISSAN MOTOR CO., U.S.A.

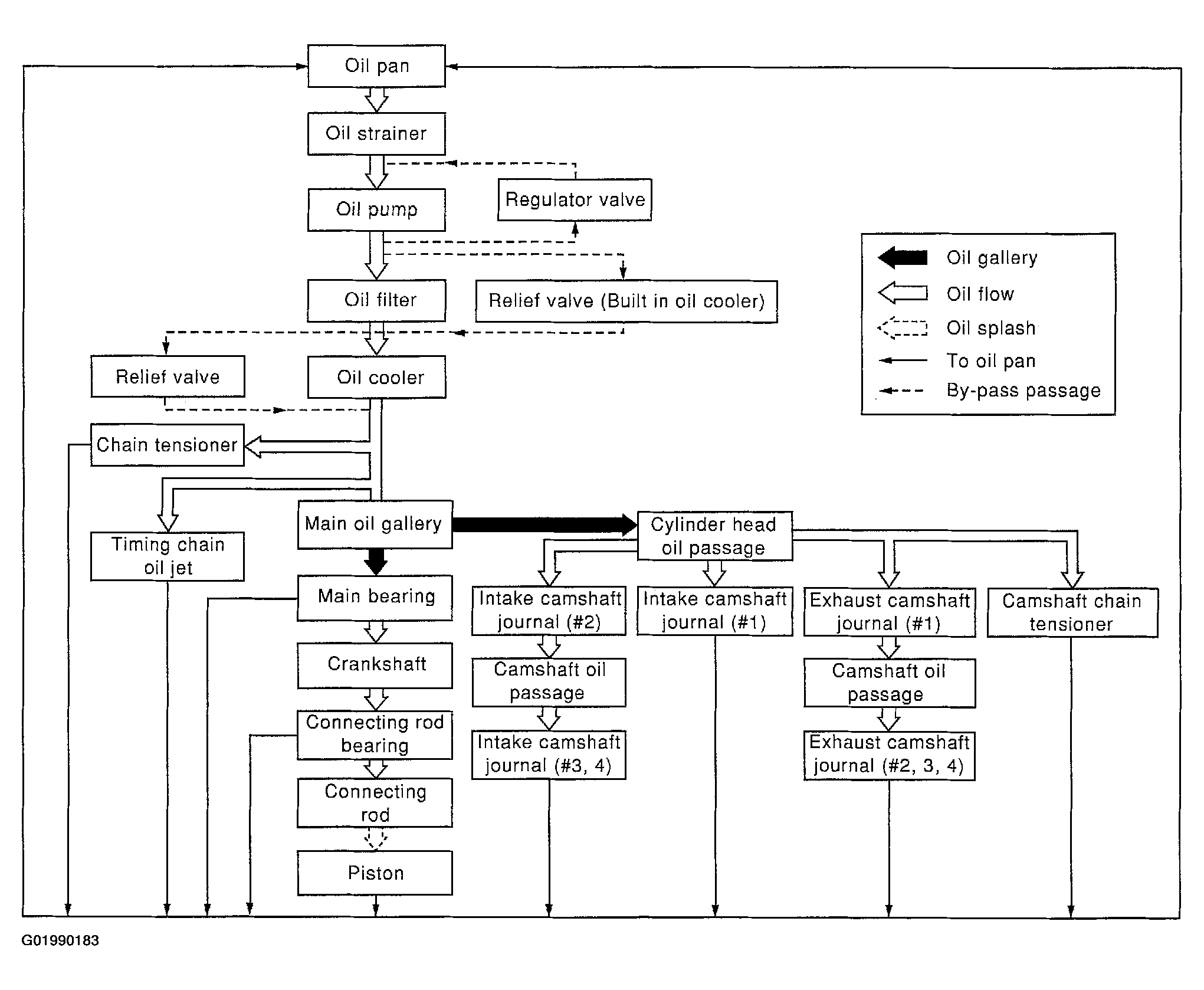

Fig 2: Engine Lubrication System Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
