Disassembly And Assembly

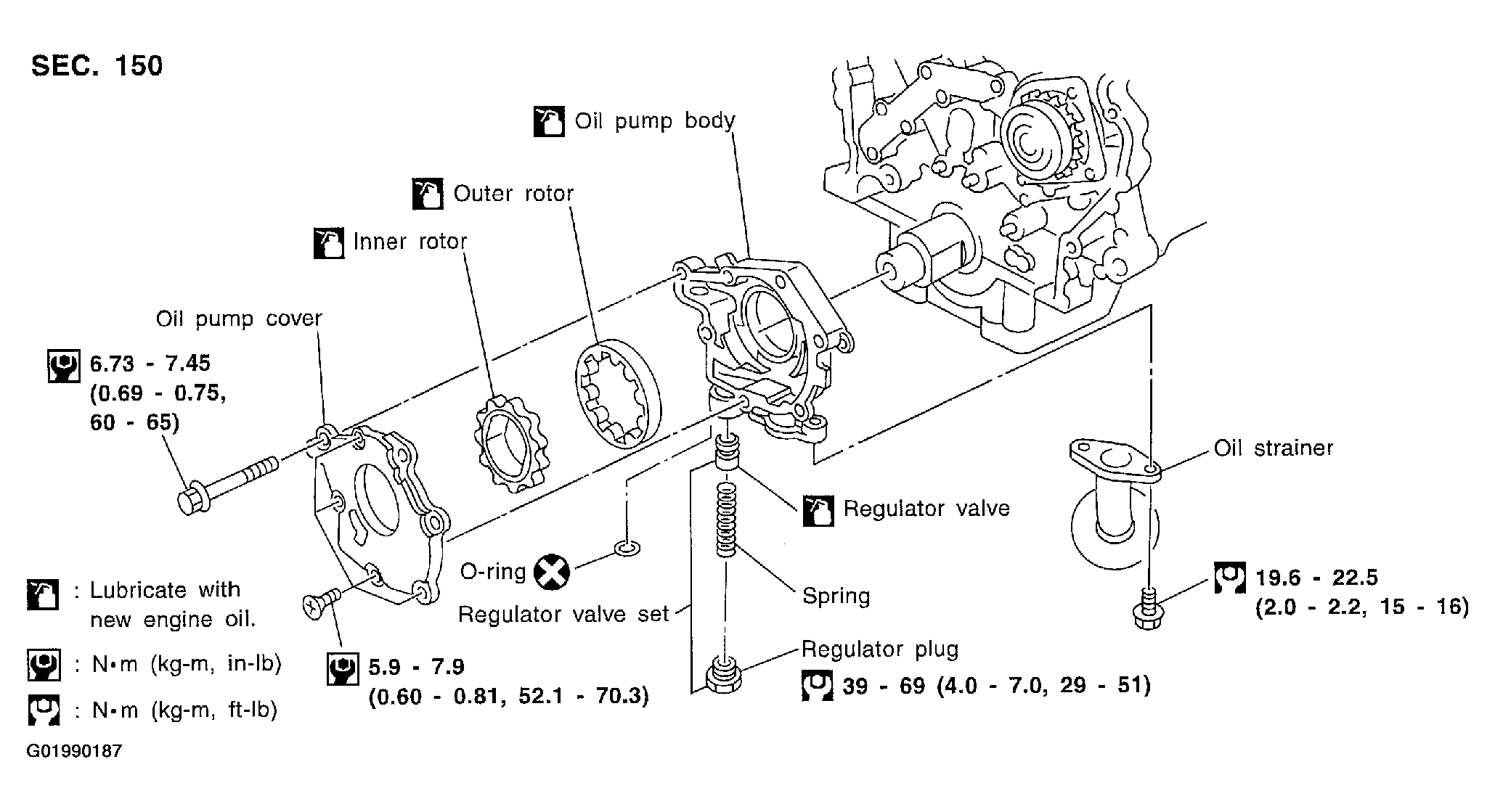

Fig 1: Exploded View Of Oil Pump

G01990187

Courtesy of NISSAN MOTOR CO., U.S.A.

When installing oil pump, apply engine oil to rotors.
