Starting System: Overhaul

NOTE: See Fig 1 and Fig 2 for overhaul reference.

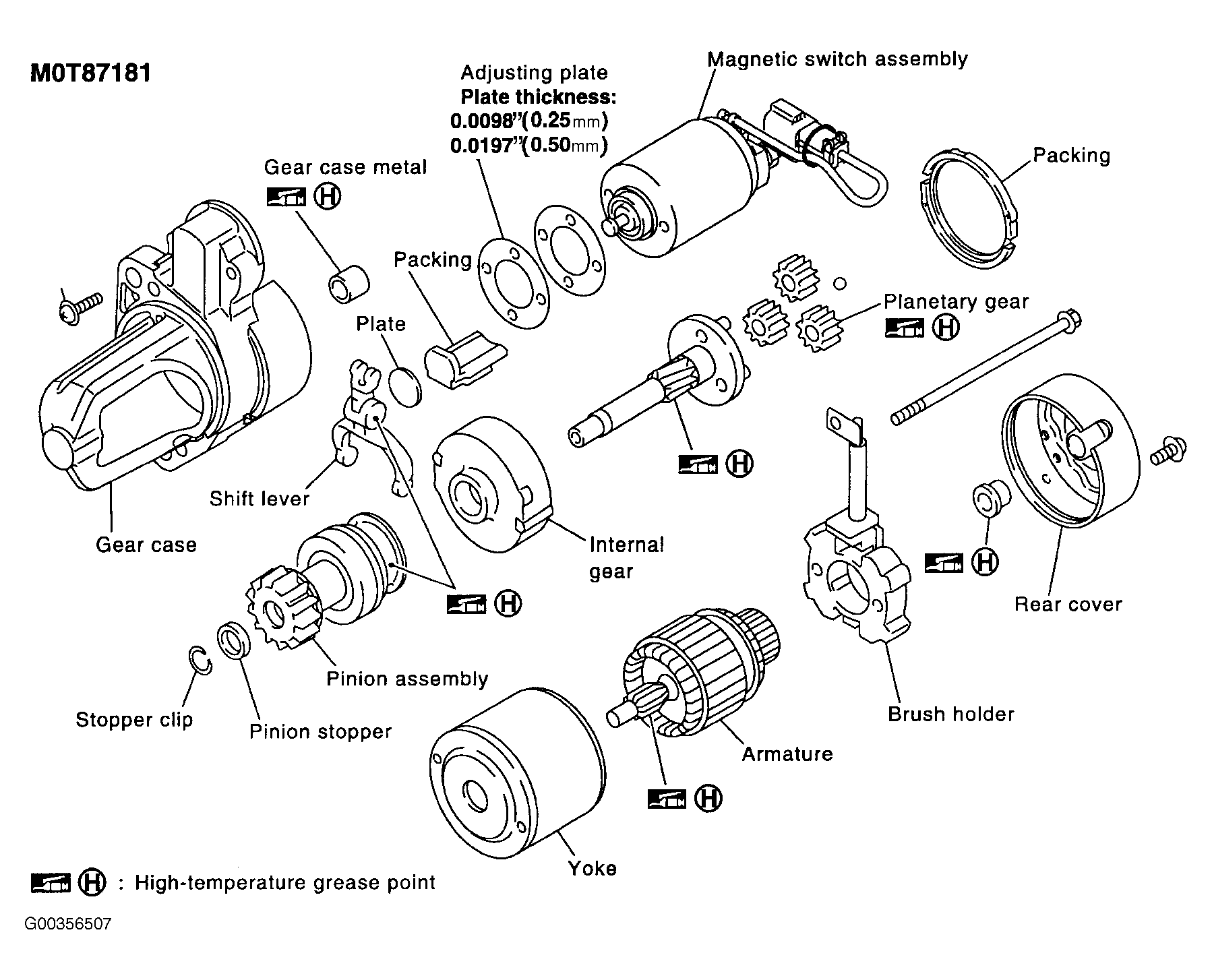

Fig 1: Exploded View Of Starter (A/T)

Courtesy of NISSAN MOTOR CO., U.S.A.

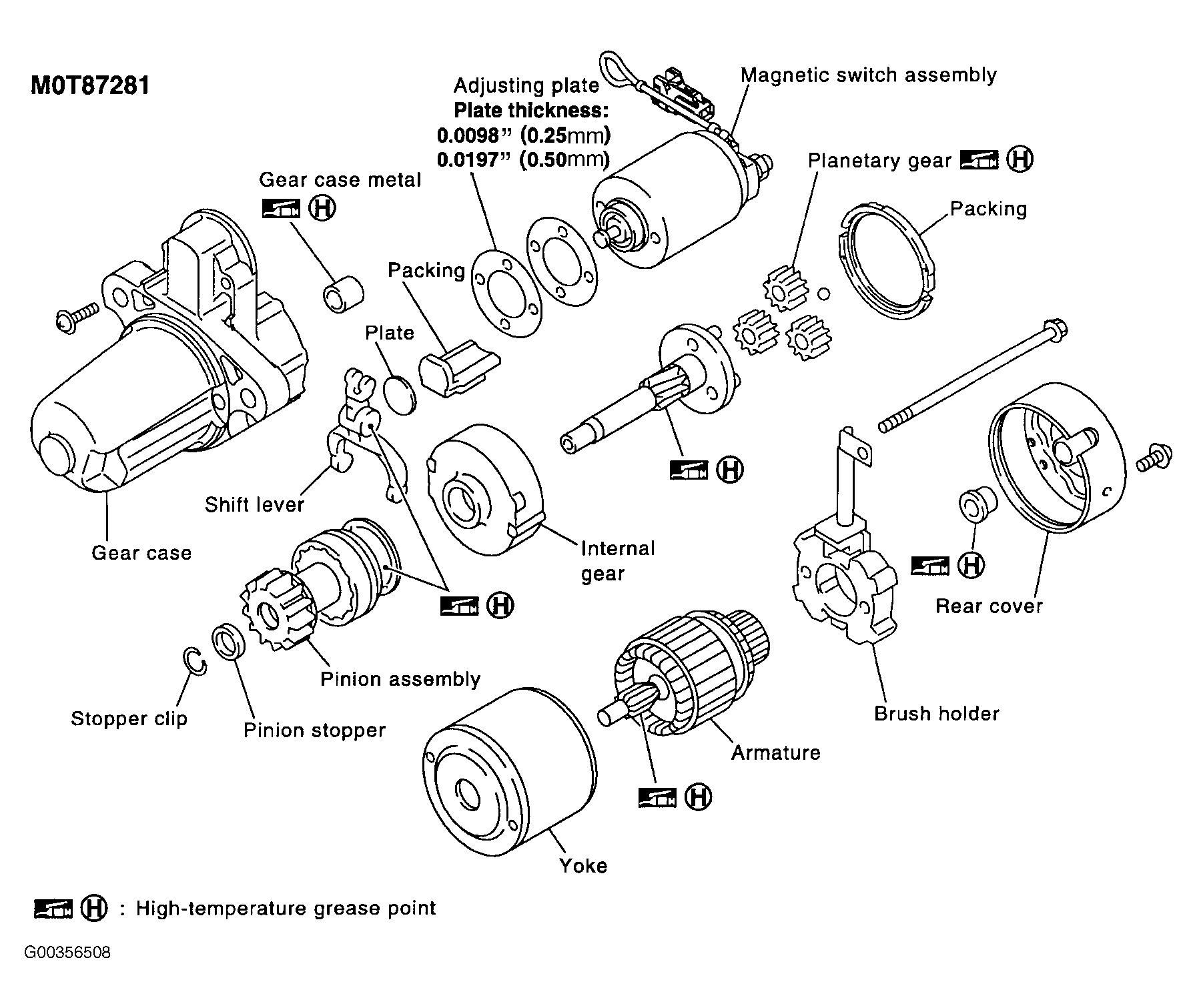

Fig 2: Exploded View Of Starter (M/T)

Courtesy of NISSAN MOTOR CO., U.S.A.
