Overrun Clutch Operating Conditions

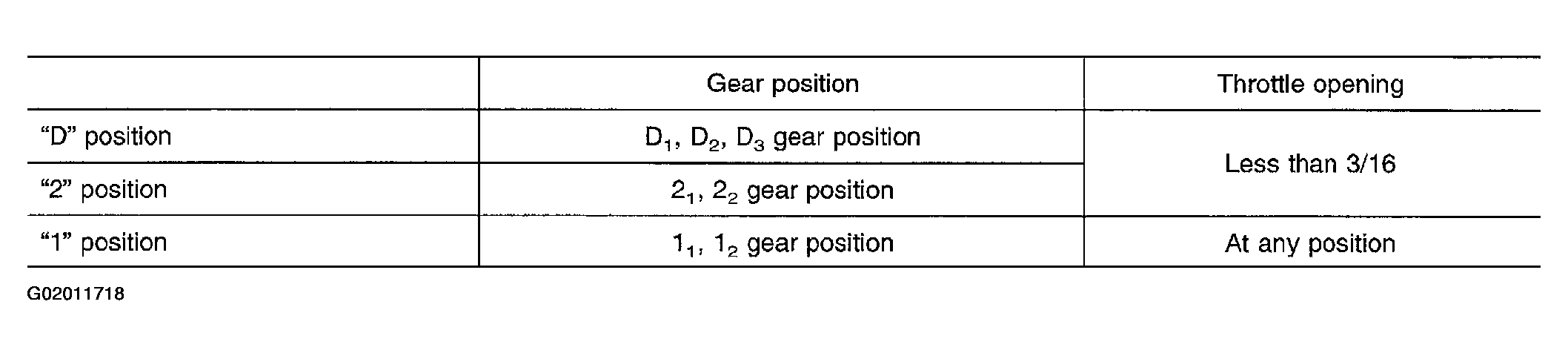

Fig 1: Gear Position And Throttle Opening Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

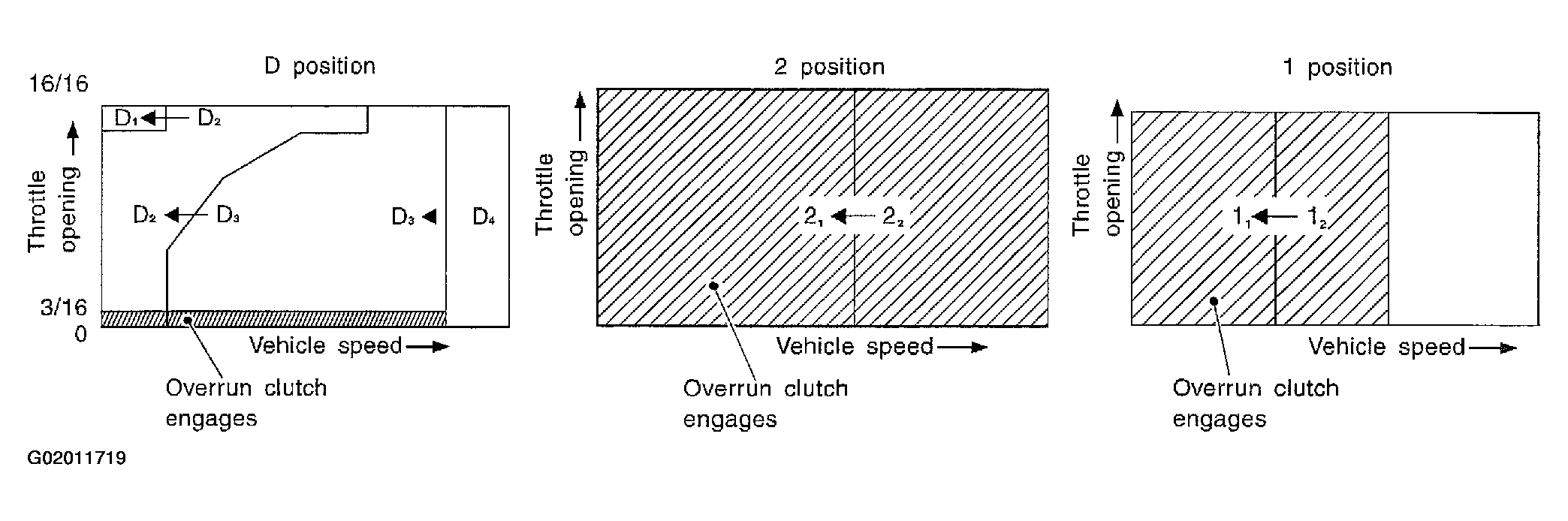

Fig 2: Overrun Clutch Operating Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
