Service Data And Specifications (SDS)
›
Revolution Sensor
Revolution Sensor

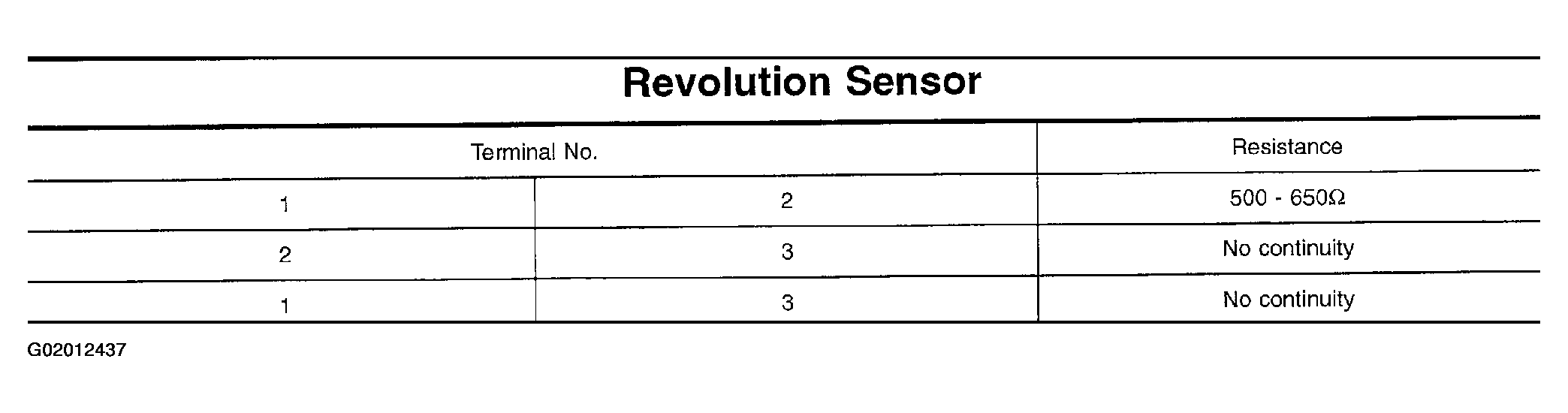

Fig 1: Specification Data And Reference Values - Revolution Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
