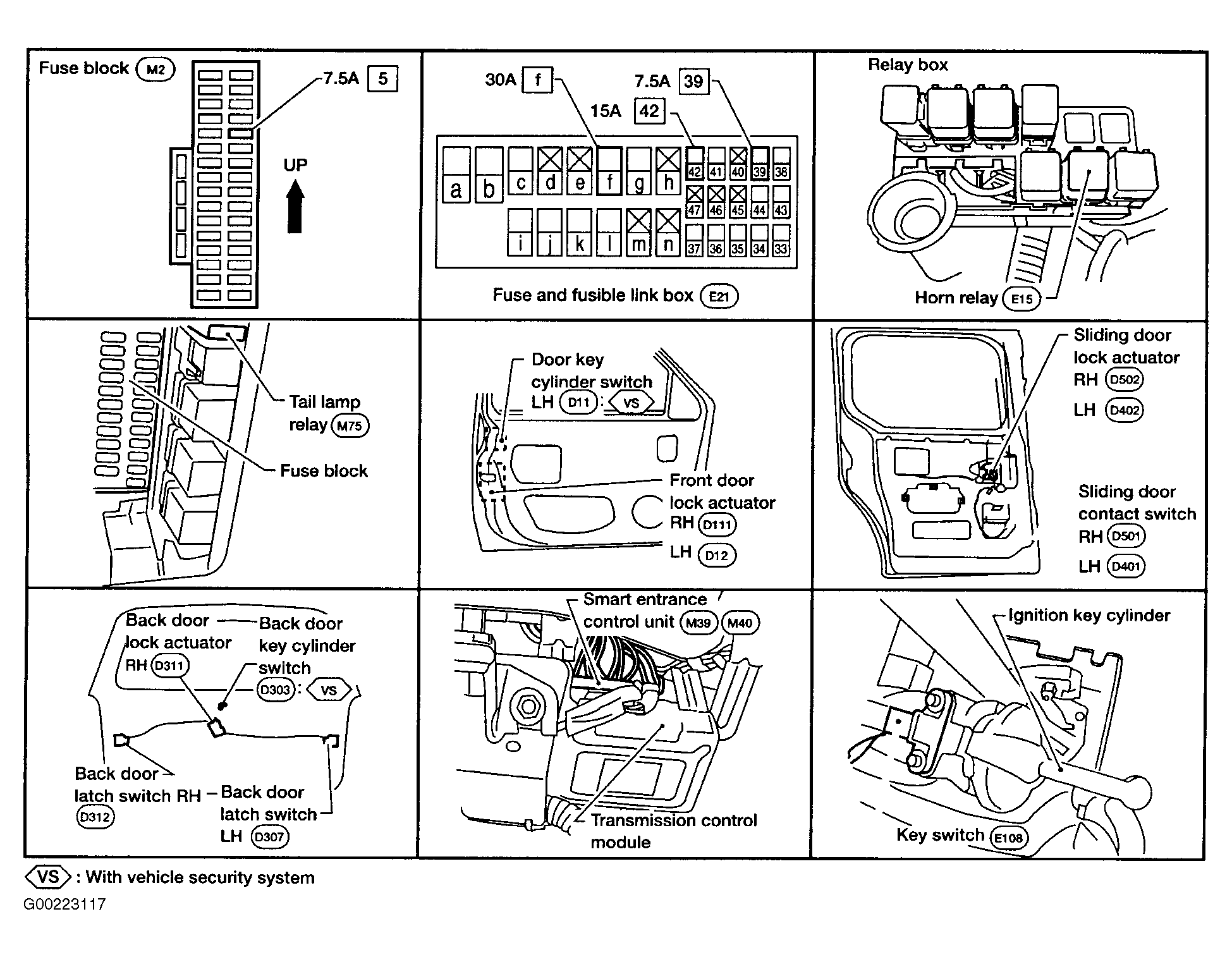

Component Locations
COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Back Door Key Cylinder Switch | In Center Of Back Door | ||
| Back Door Latch Switch | Inside Back Door | ||
| Back Door Lock Actuator | Inside Back Door | ||
| Fuse Block | Behind Left Side Of Dash | ||
| Fusible Link & Fuse Box | Under Hood, Front left Corner Of Engine Compartment | ||
| Key Switch | On Steering Column, Under Steering Column Covers | ||
| Smart Entrance Control Unit | Behind Center Console, Right Of Steering Column | ||
| Horn Relay | In Relay Box, Next To Fuse & Fusible Link Box | ||
| Tail Lamp Relay | Behind Left Side Of Dash, Next To Fuse Block | ||
|
|||
