Door Switch Test

For door switch test, see Fig 1 and Fig 2 .

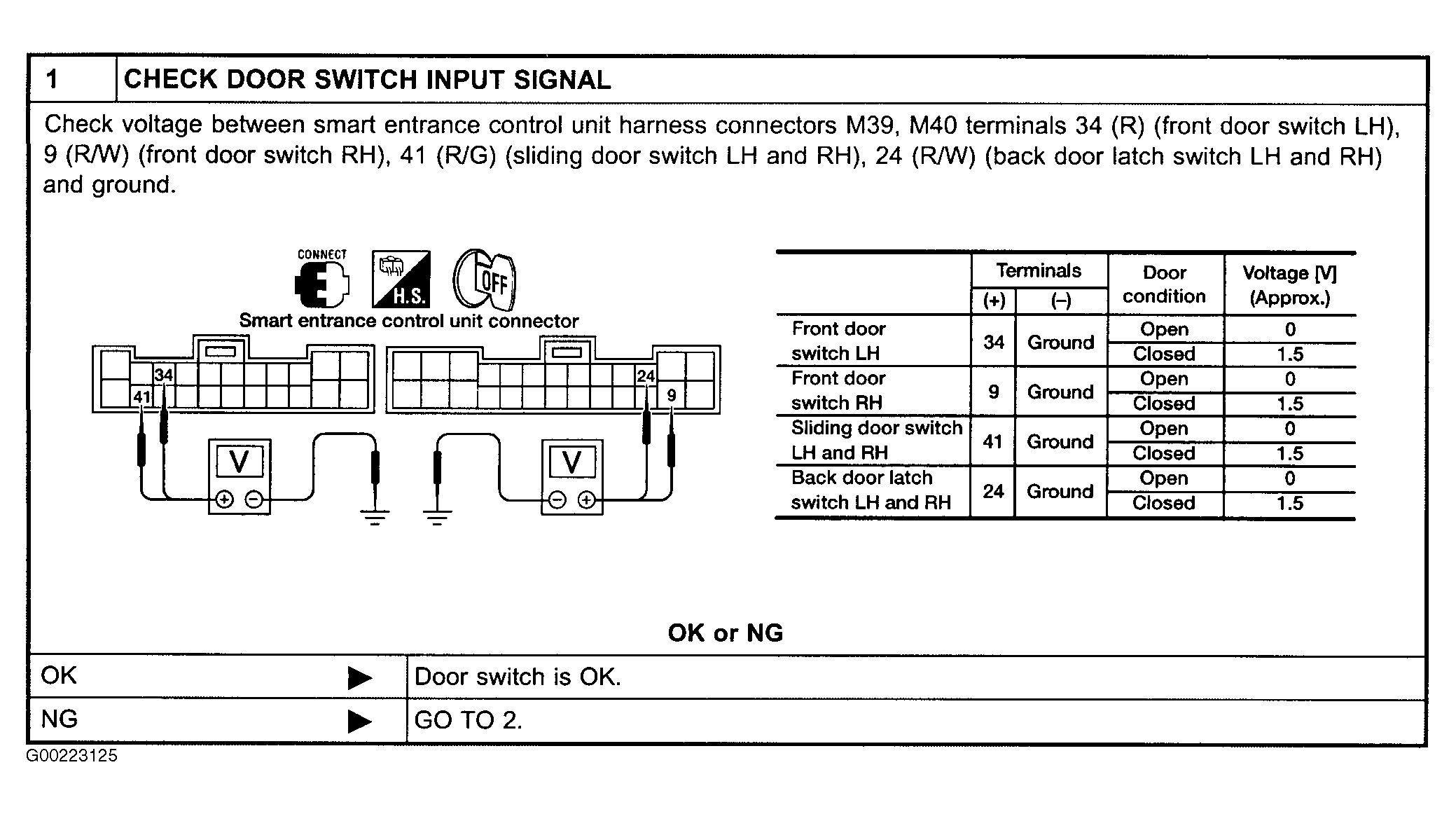

Fig 1: Identifying Door Switch Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

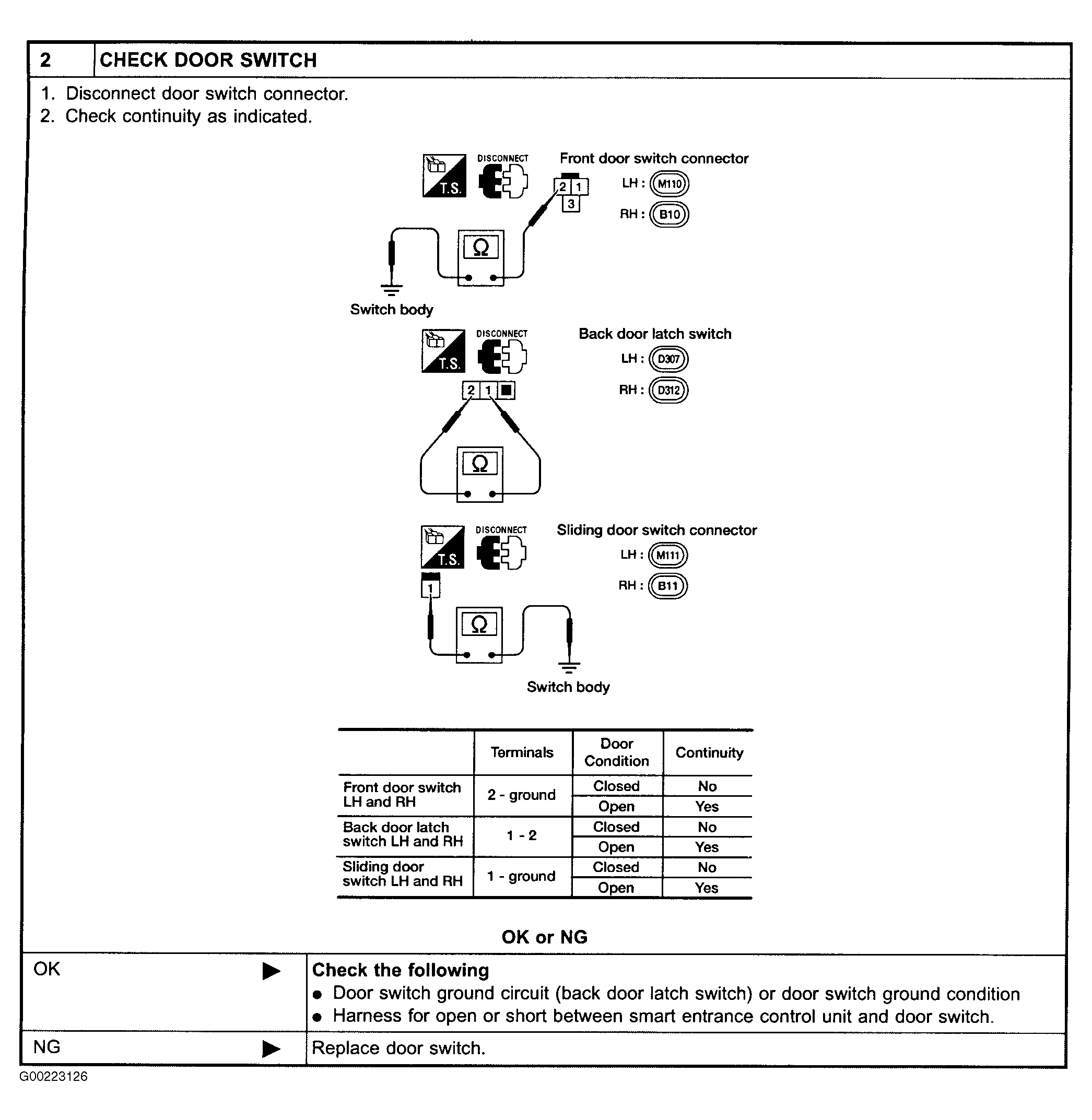

Fig 2: Identifying Door Switch Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
