Door Unlock Sensor Test

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For door unlock sensor test, see Fig 1 and Fig 2 .

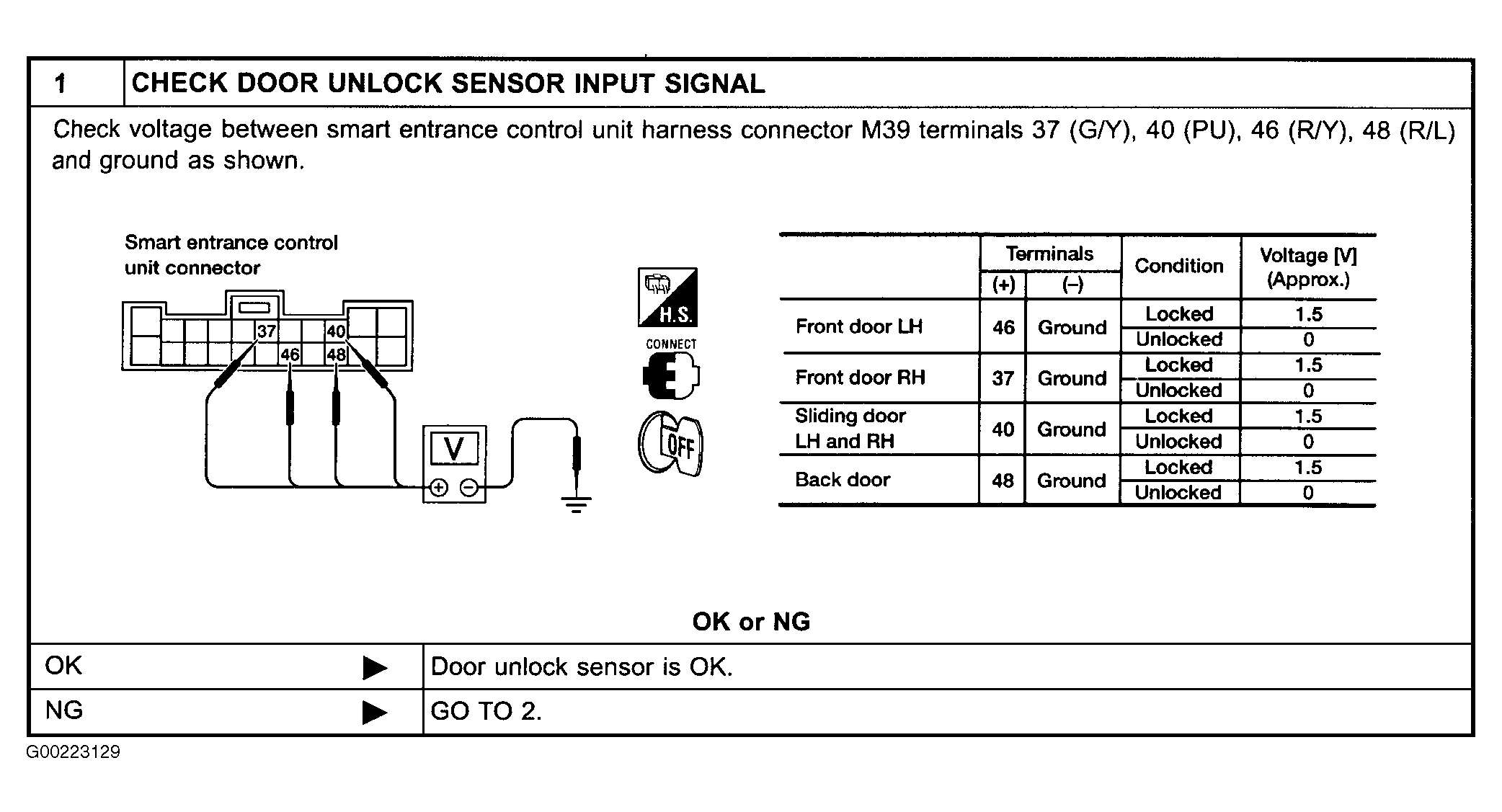

Fig 1: Identifying Door Unlock Sensor Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

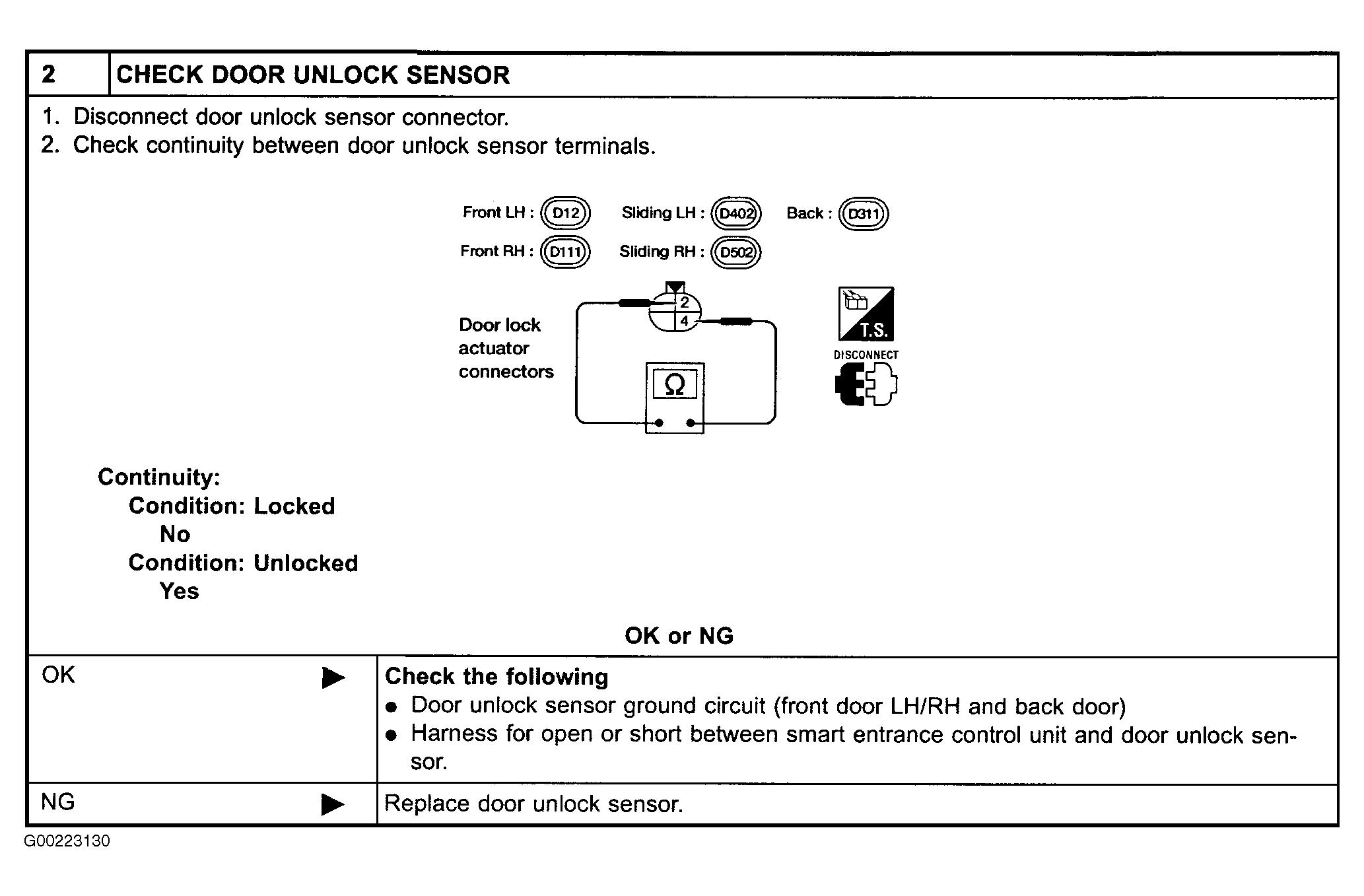

Fig 2: Identifying Door Unlock Sensor Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
