KEYFOB Battery Test

NOTE: For wiring diagrams, see WIRING DIAGRAMS.

For keyfob battery test, see Fig 1 .

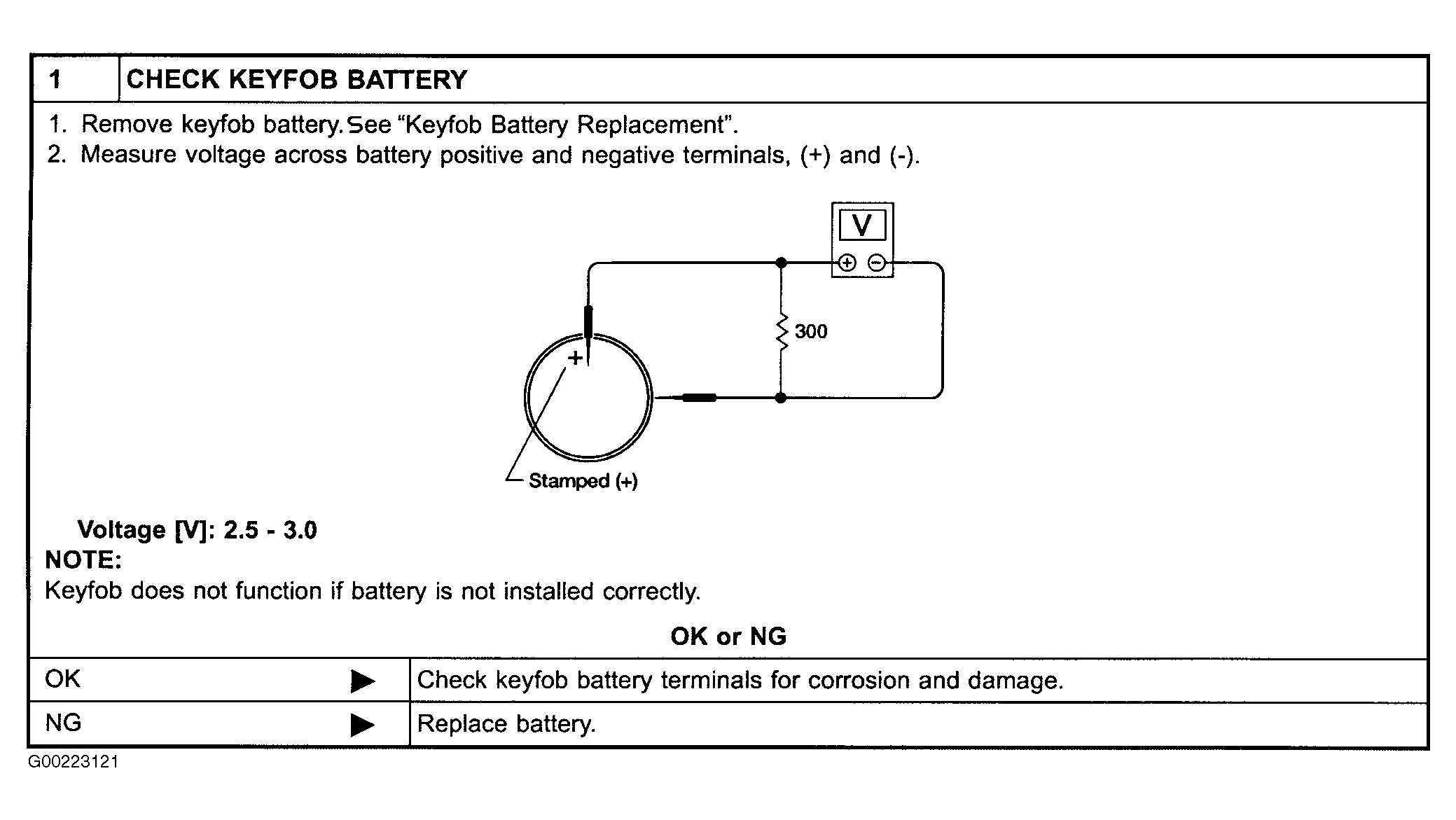

Fig 1: Identifying Keyfob Battery Test

G00223121

Courtesy of NISSAN MOTOR CO., U.S.A.
