Tail Lamp Relay Test

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For tail lamp relay test, see Fig 1 -Fig 3 .

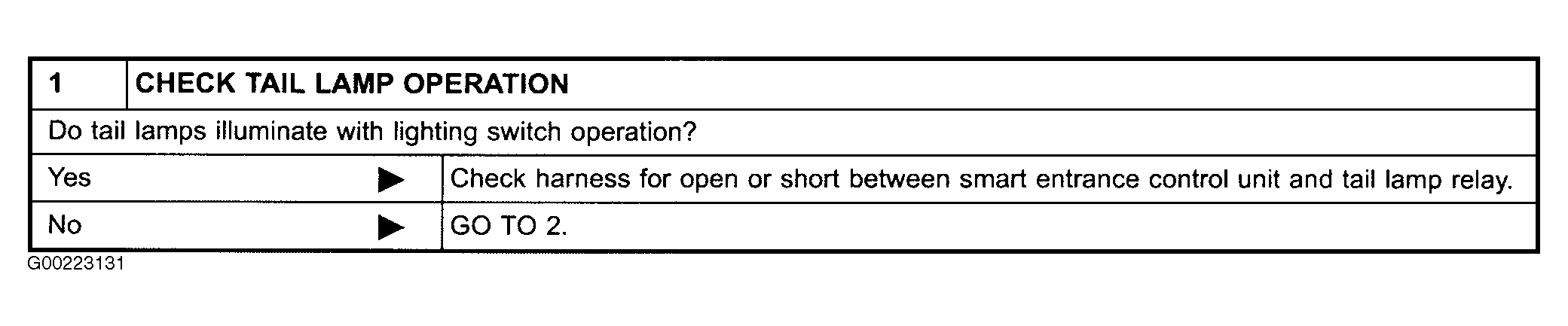

Fig 1: Identifying Tail Lamp Relay Test, Step 1

G00223131

Courtesy of NISSAN MOTOR CO., U.S.A.

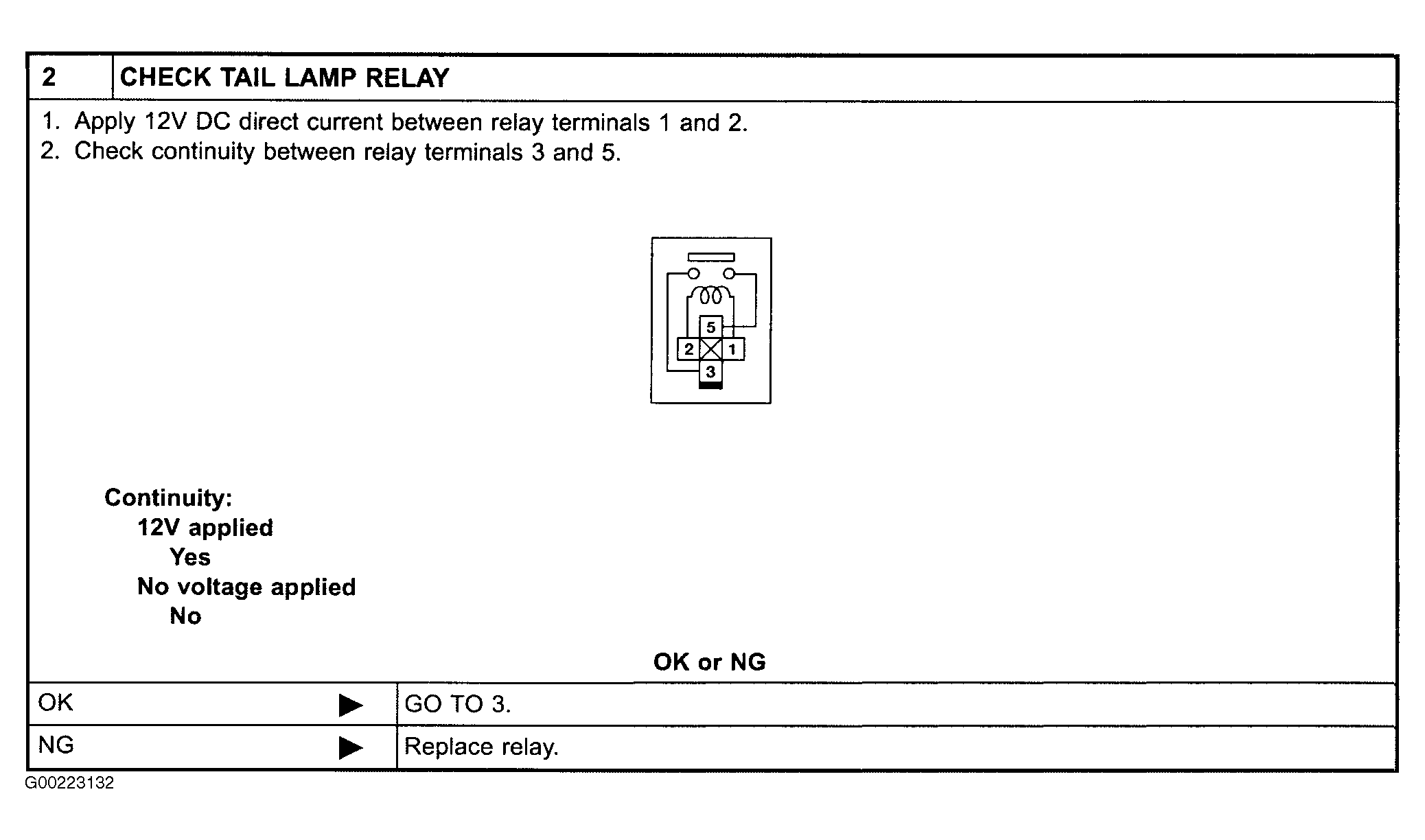

Fig 2: Identifying Tail Lamp Relay Test, Step 2

G00223132

Courtesy of NISSAN MOTOR CO., U.S.A.

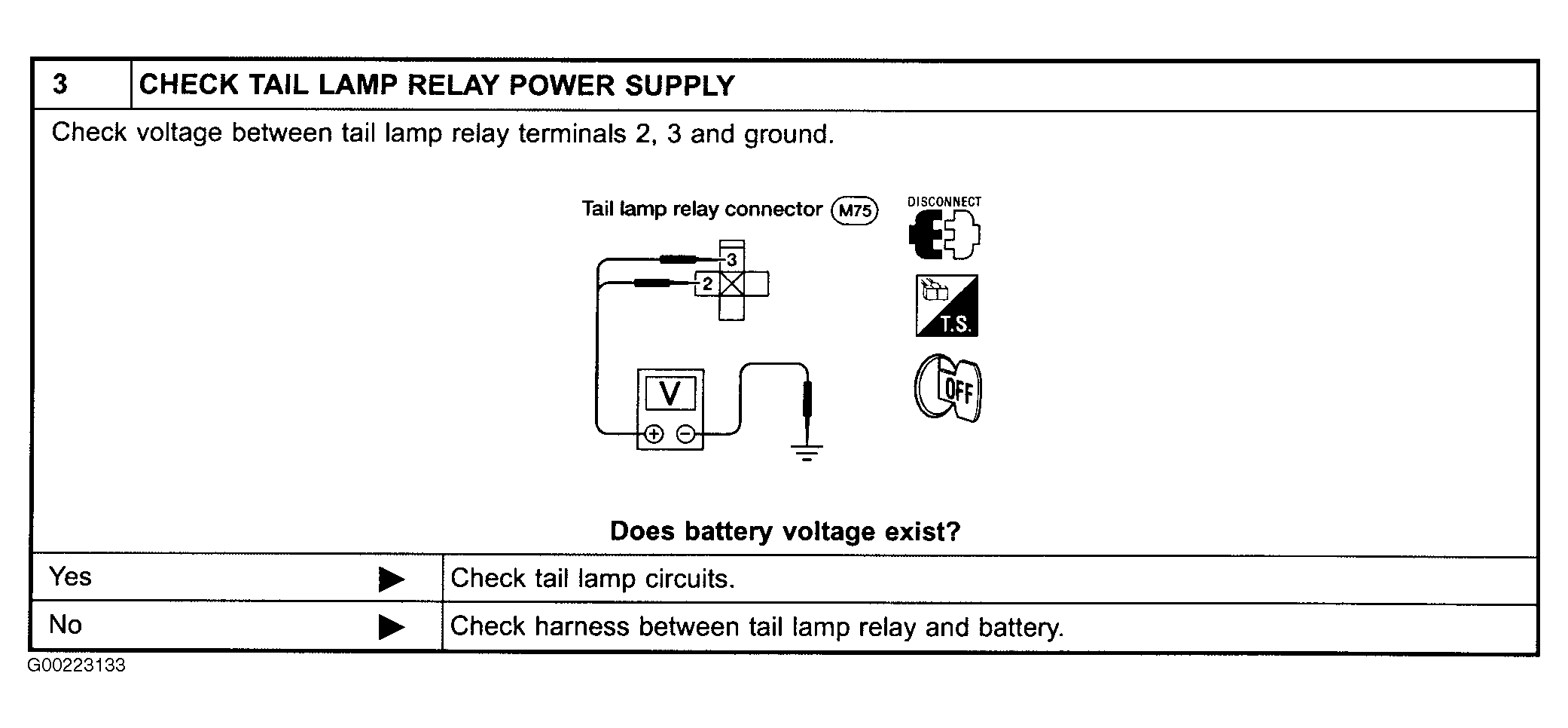

Fig 3: Identifying Tail Lamp Relay Test, Step 2

G00223133

Courtesy of NISSAN MOTOR CO., U.S.A.
