Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

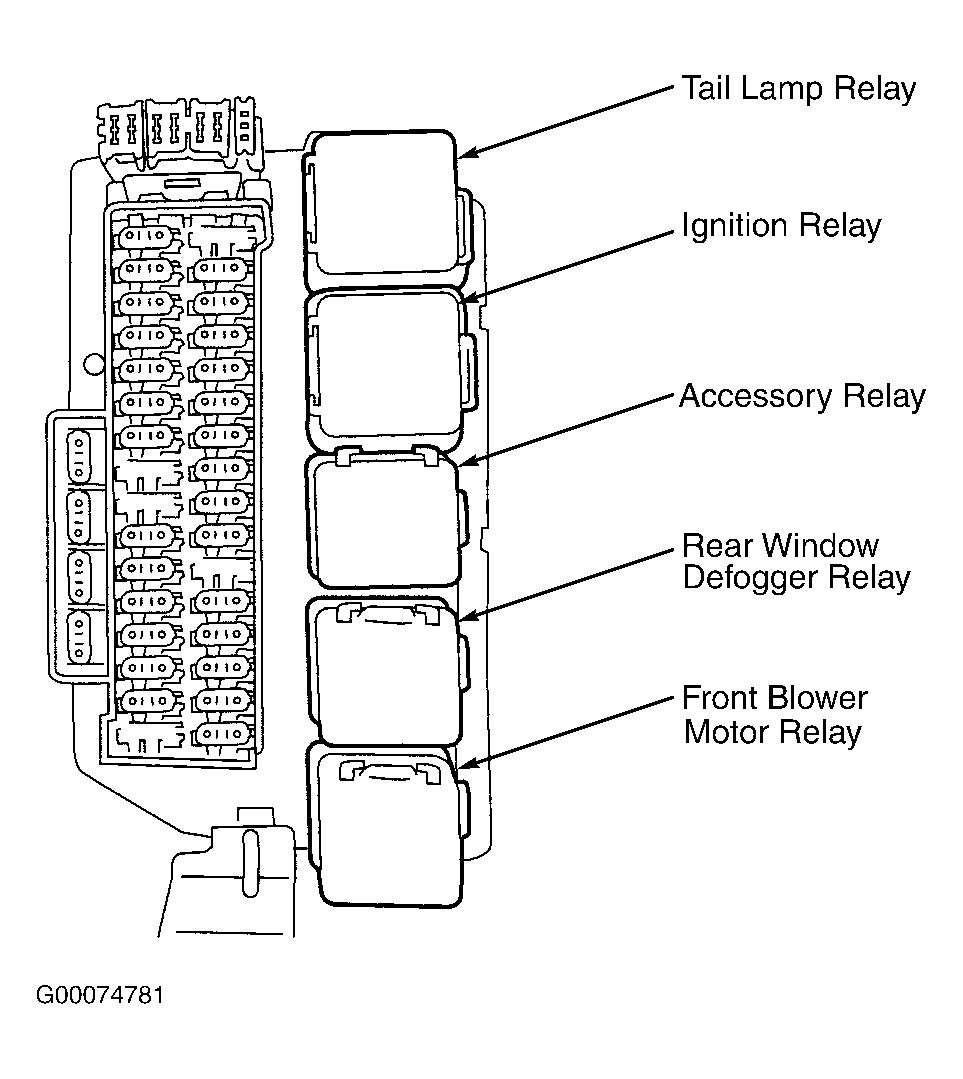

Fig 1: Fuse Block

Courtesy of NISSAN MOTOR CO., U.S.A.

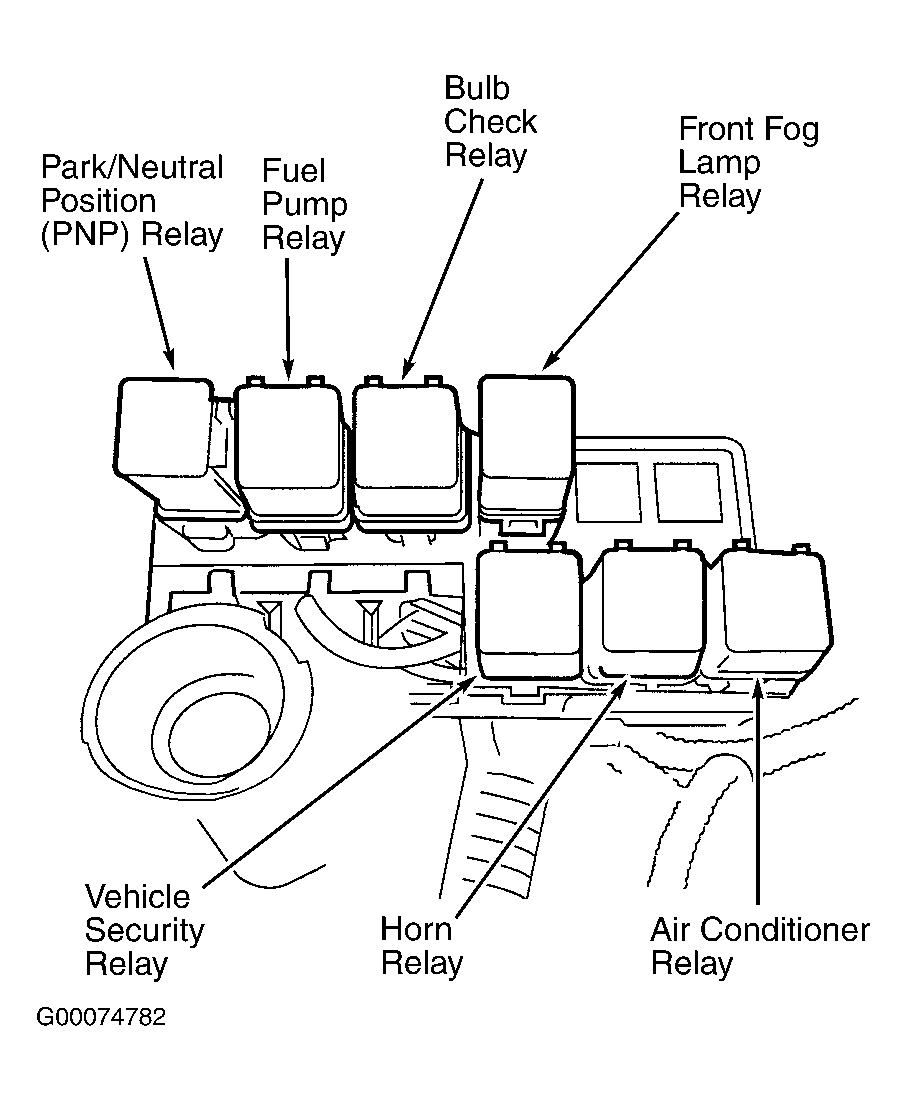

Fig 2: Relay Box

Courtesy of NISSAN MOTOR CO., U.S.A.

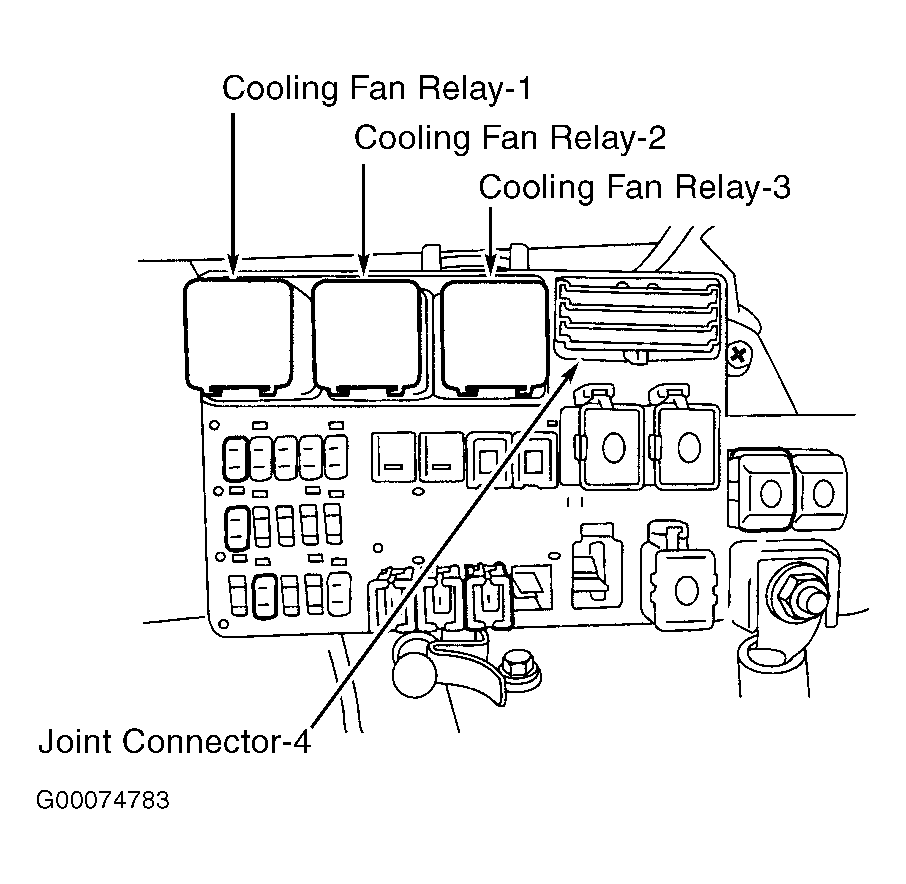

Fig 3: Fuse & Fusible Link Box

Courtesy of NISSAN MOTOR CO., U.S.A.

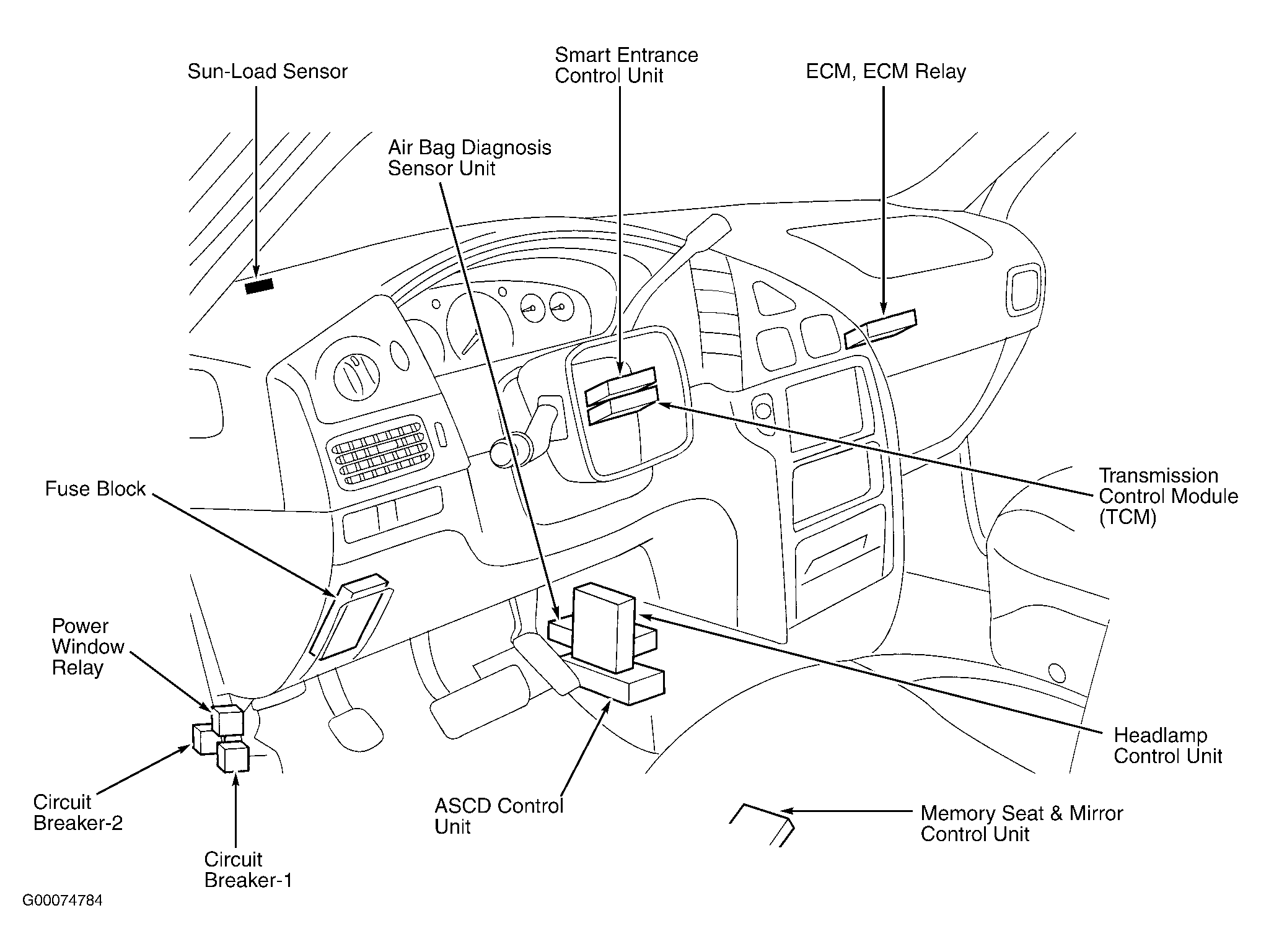

Fig 4: Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

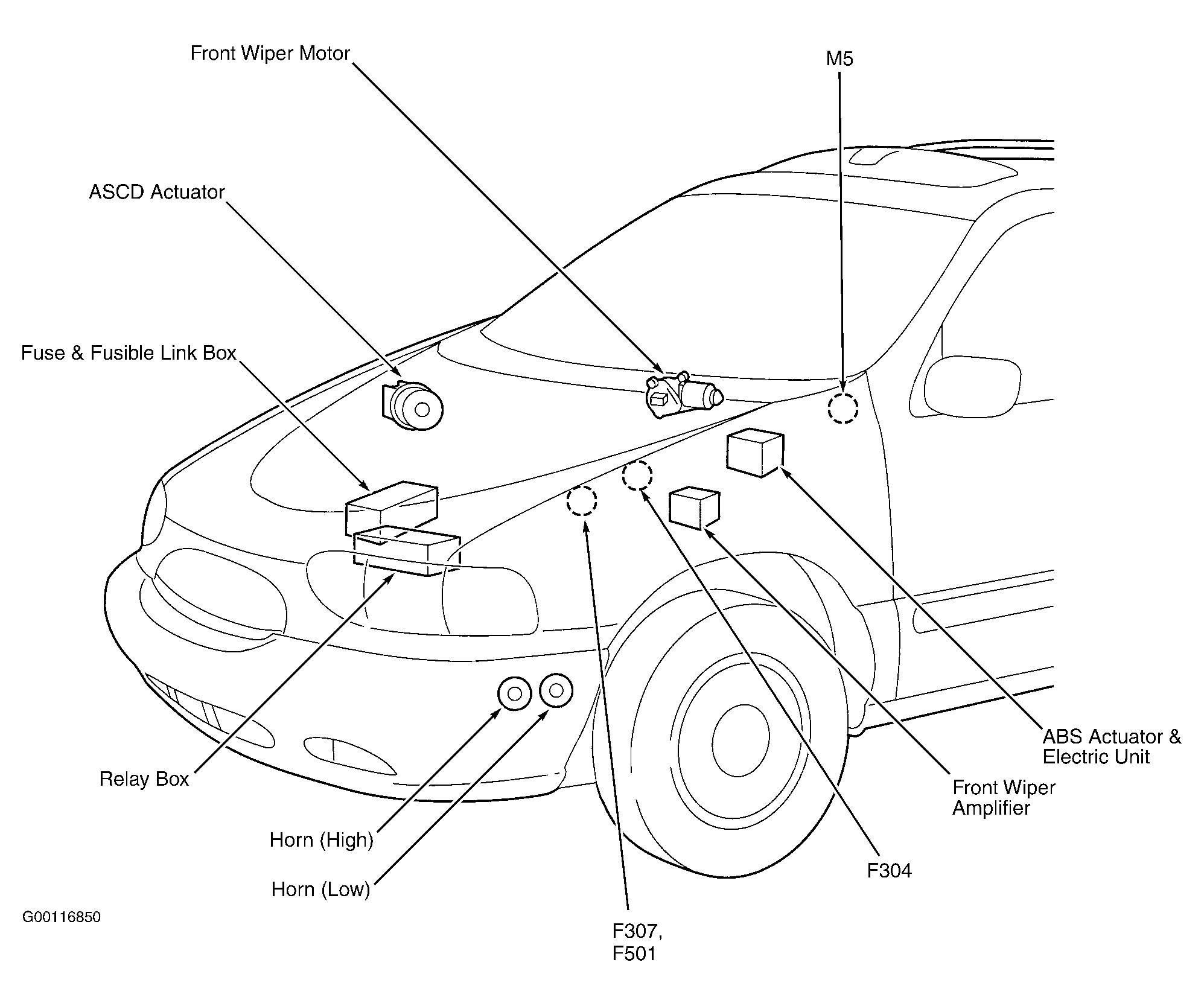

Fig 5: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Top Of Engine

Courtesy of NISSAN MOTOR CO., U.S.A.

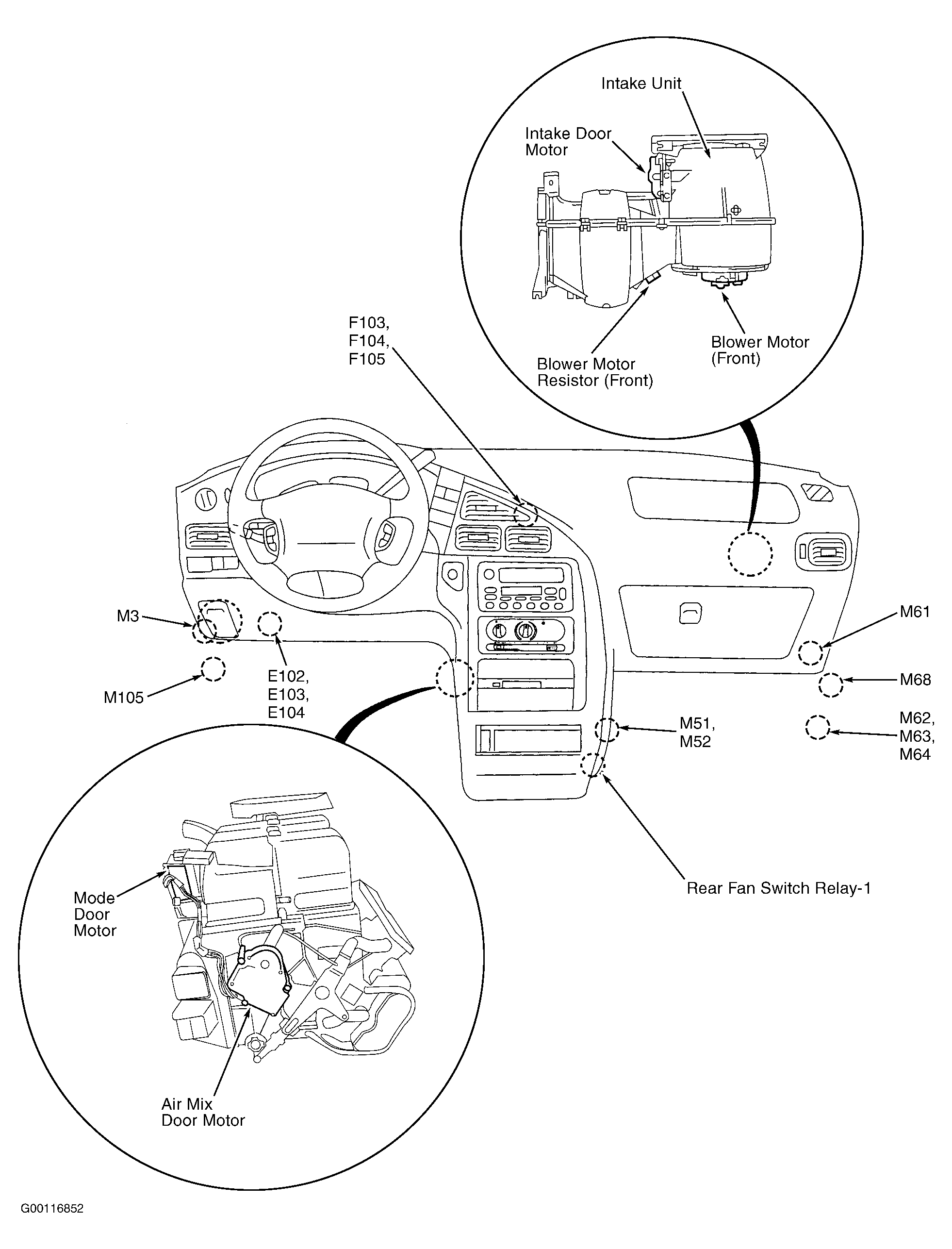

Fig 7: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

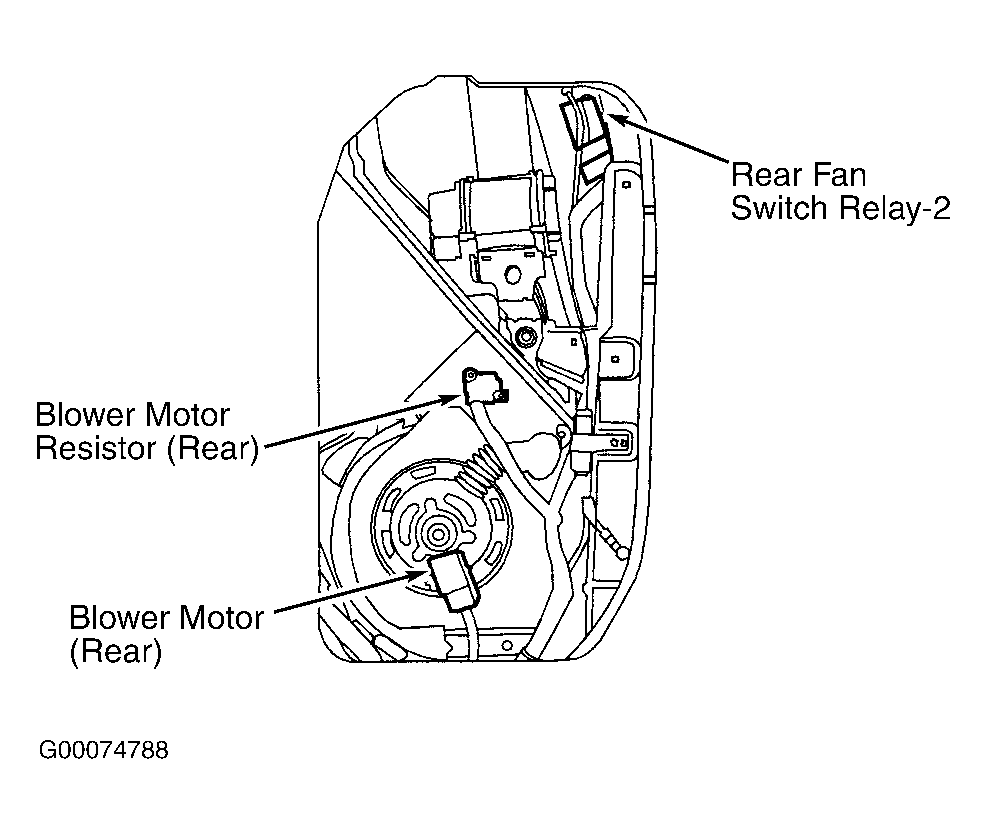

Fig 8: Right Side Of Cargo Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.
