Section 1086 (Engine Cooling System)
›
Overheating Cause Analysis
›
Troubleshooting Chart
Troubleshooting Chart
WARNING:
This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
PFP:00012
ABS0035C

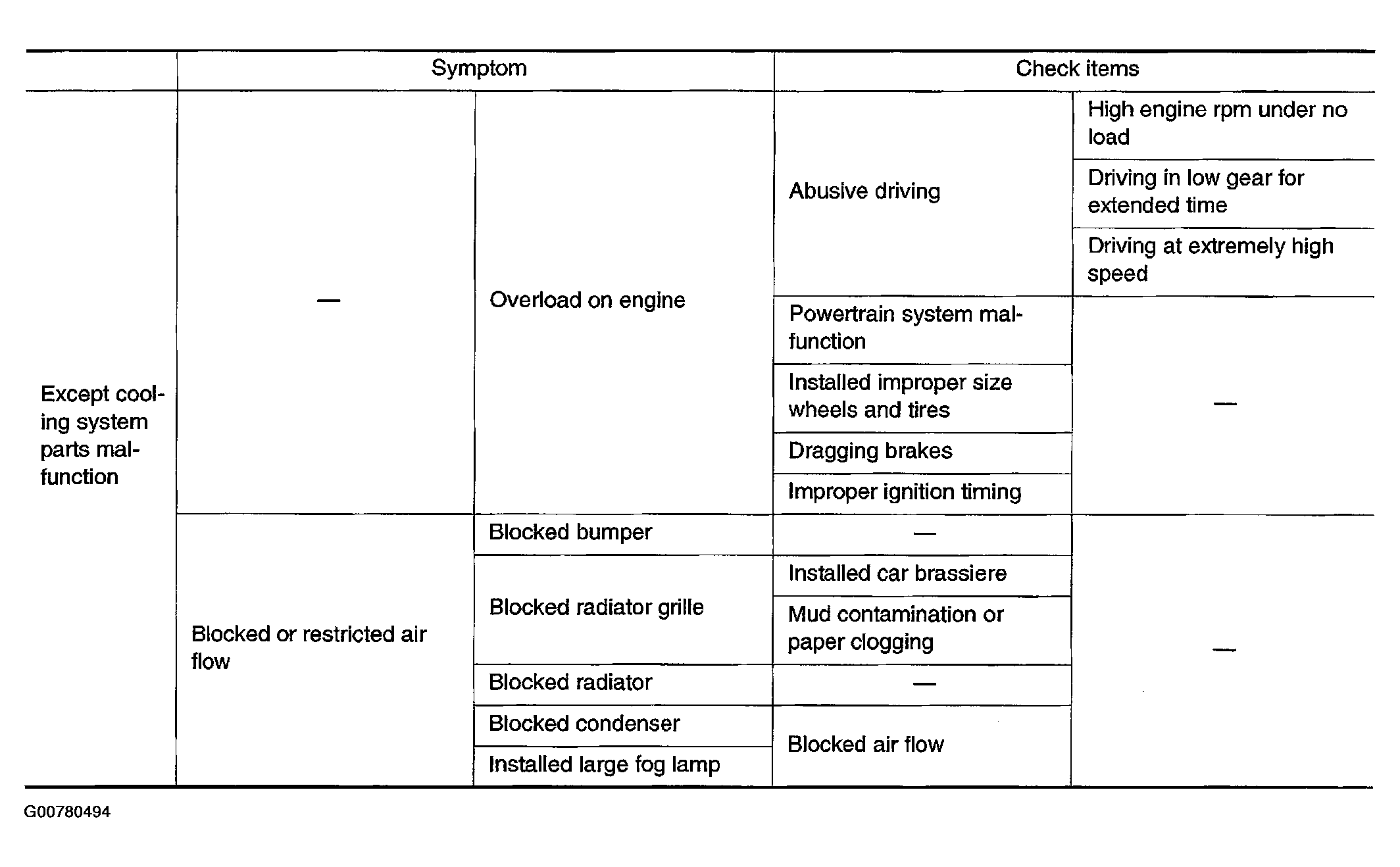

Fig 1: Troubleshooting Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

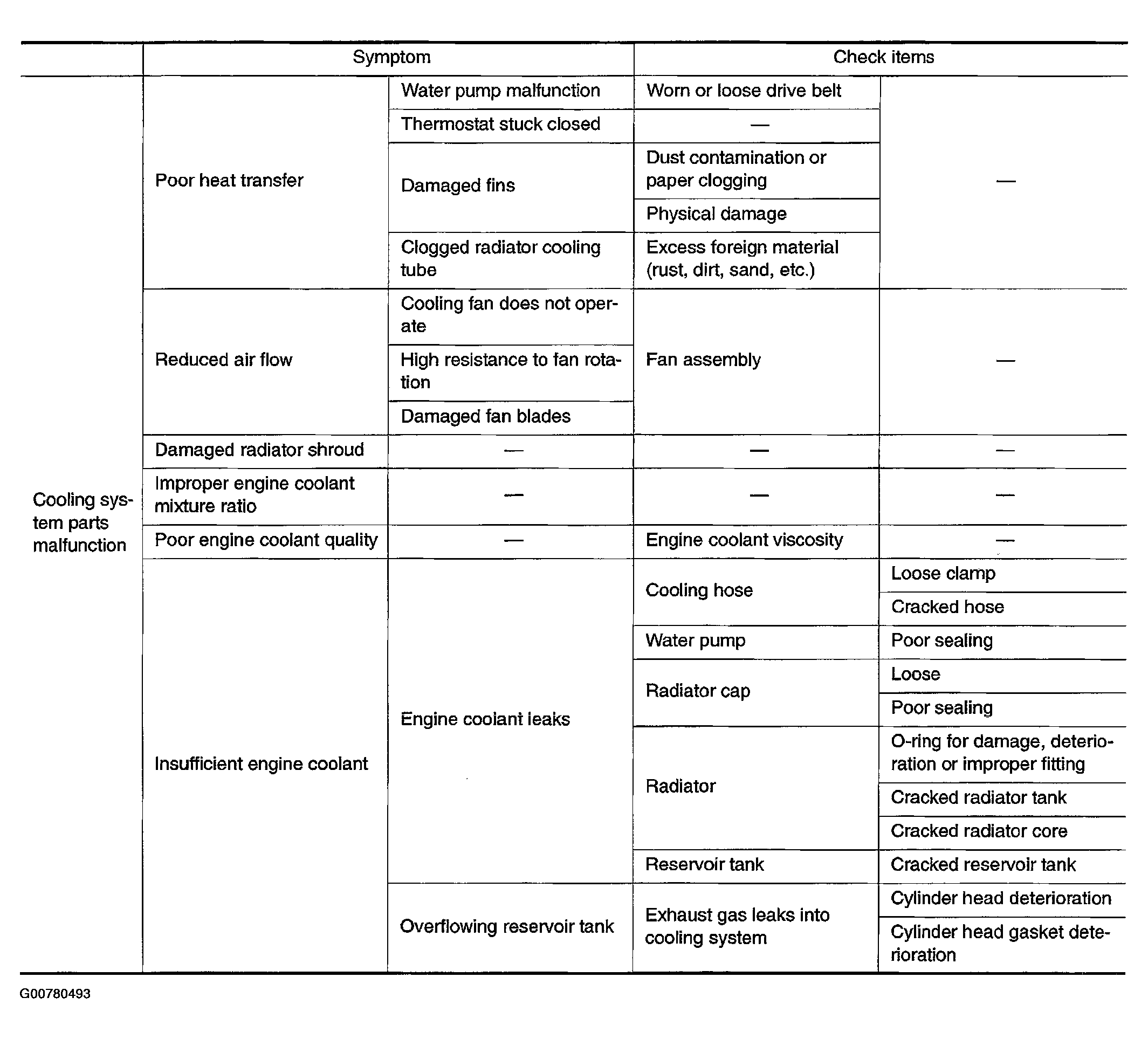

Fig 2: Troubleshooting Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
