Section 1513 (Automatic Transmission)
›
A/T Control System
›
Cross-Sectional View
›
4WD models
4WD models
WARNING:
This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

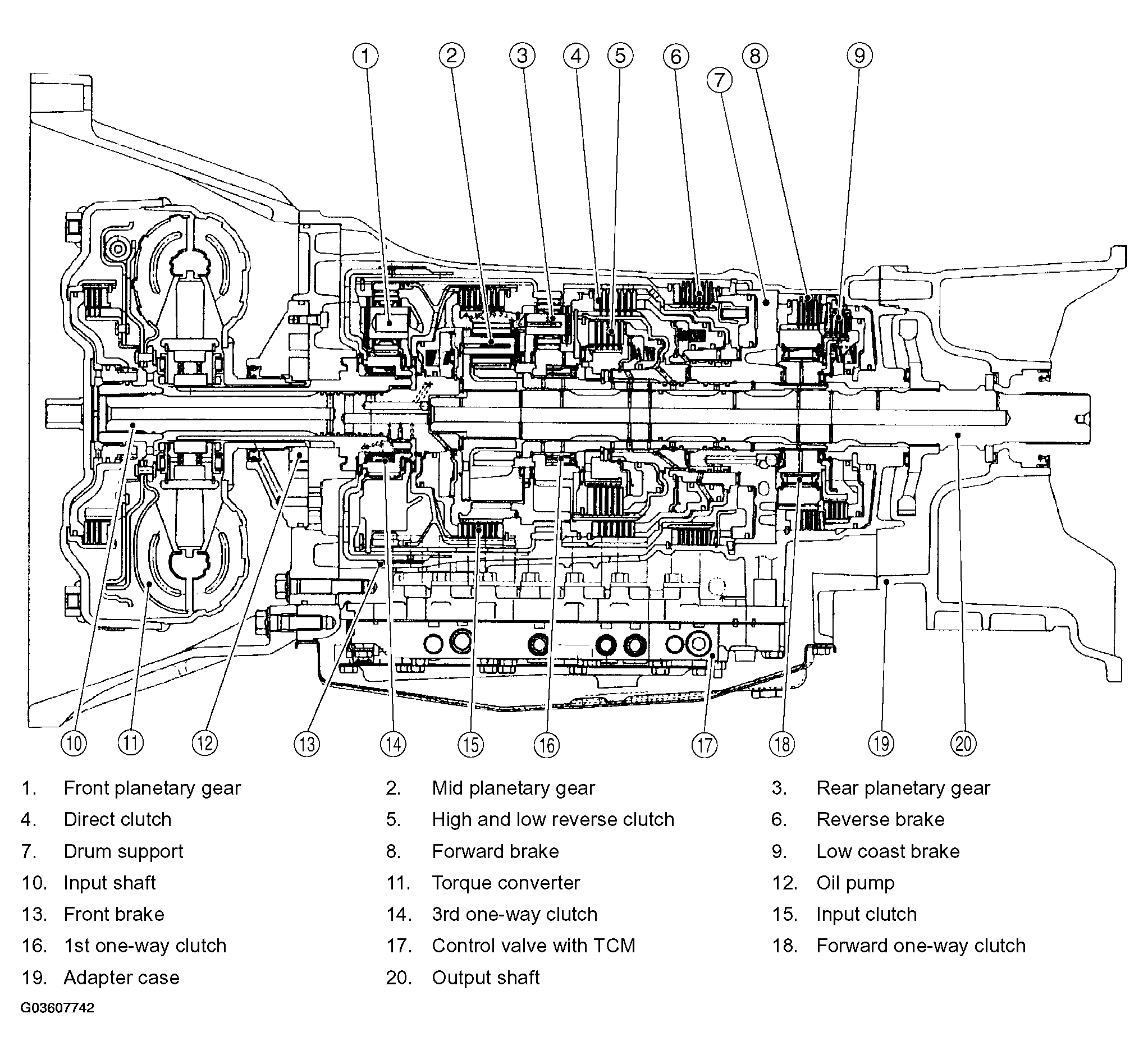

Fig 1: Cross-Sectional View Of A/T Control System - 4WD Models
Courtesy of NISSAN MOTOR CO., U.S.A.
