Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove spring from steering column assembly and tilt lever.
  2. Remove fixing bolt of upper joint, then remove upper joint from steering column assembly.

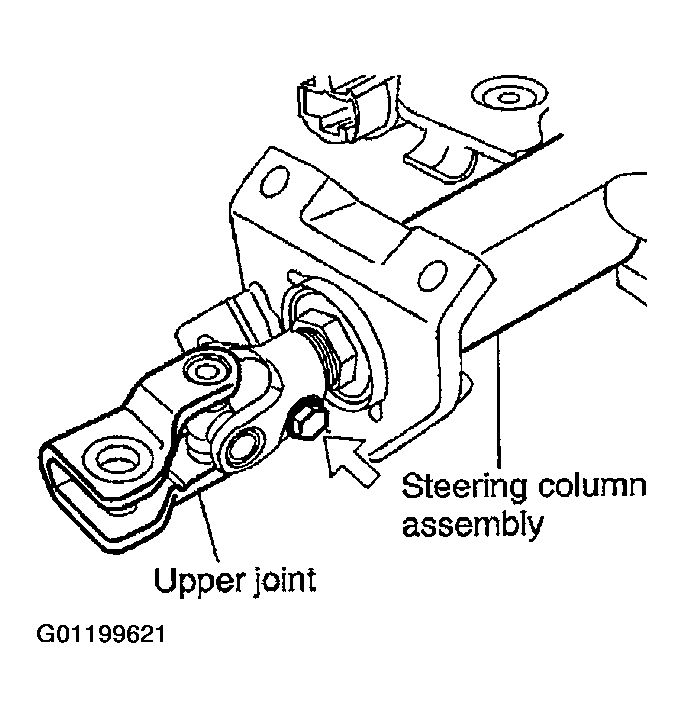

    Fig 1: Removing Fixing Bolt Of Upper Joint And Upper Joint From Steering Column Assembly
    G01199621Courtesy of NISSAN MOTOR CO., U.S.A.
