FixVault
Home
›
Nissan-Datsun
›
2002
›
Sentra SE-R Spec V
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Steering System - Power
›
Power Steering Gear And Linkage
›
Components
Power Steering Gear And Linkage: Components

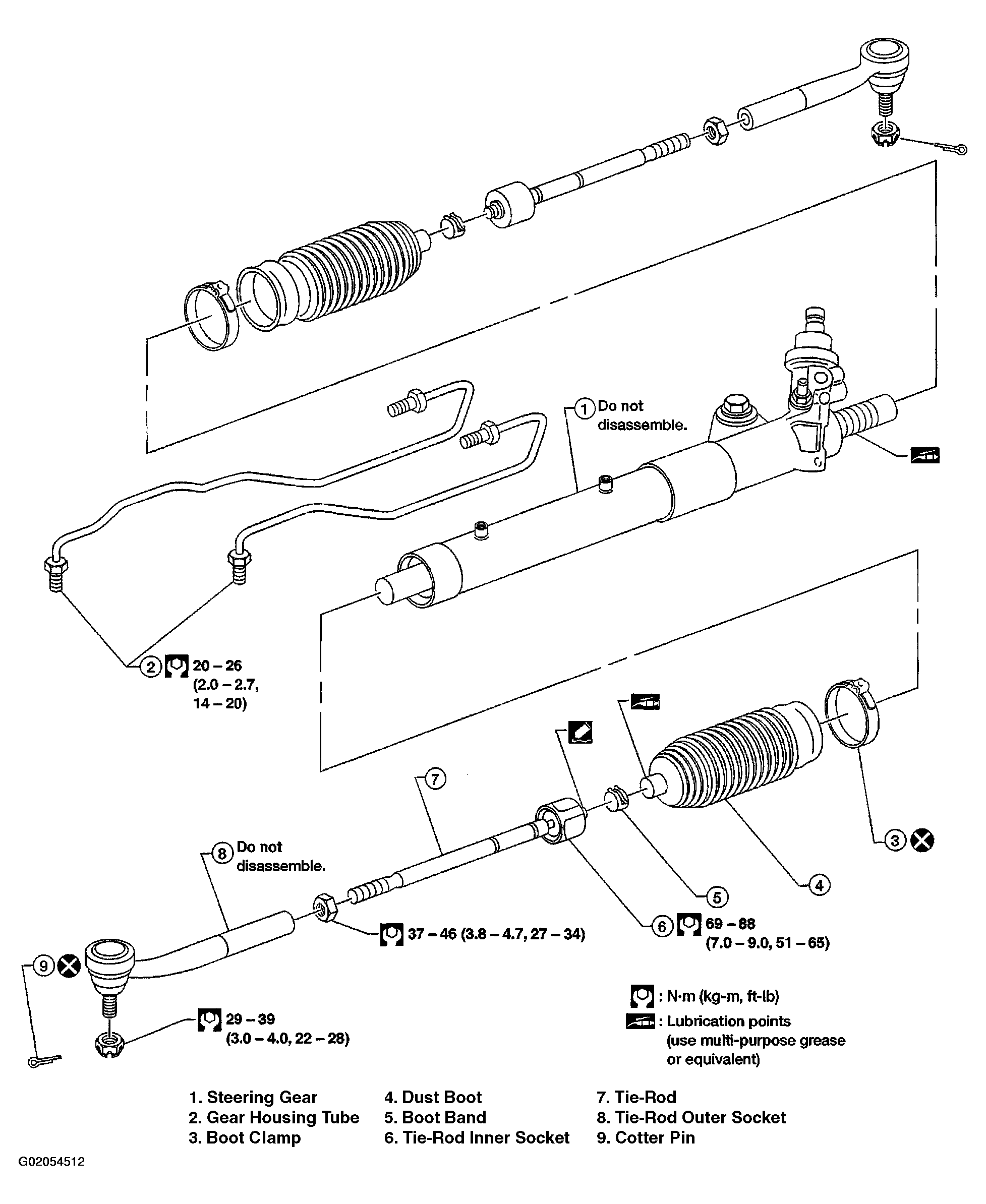

Fig 1: Exploded View Of Power Steering Gear And Linkage
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
