Clutch Release Mechanism
›
Components
Clutch Release Mechanism: Components

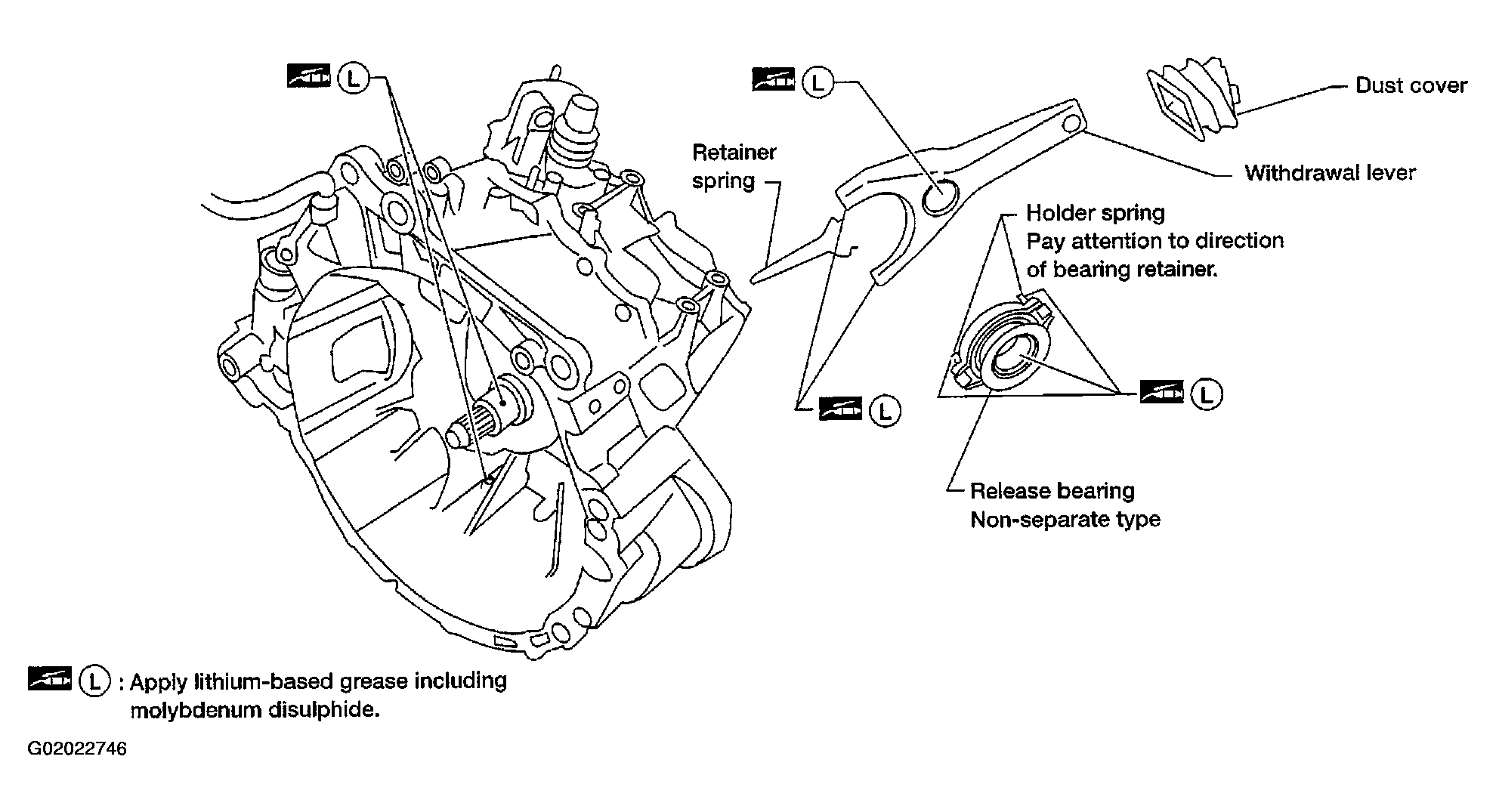

Fig 1: Identifying Clutch Release Mechanism Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
