Home › Nissan-Datsun › 2002 › Sentra SE-R Spec V › Repair and Diagnosis › Transmission › Clutch System Qr25DE › Clutch System › Components

Clutch System: Components

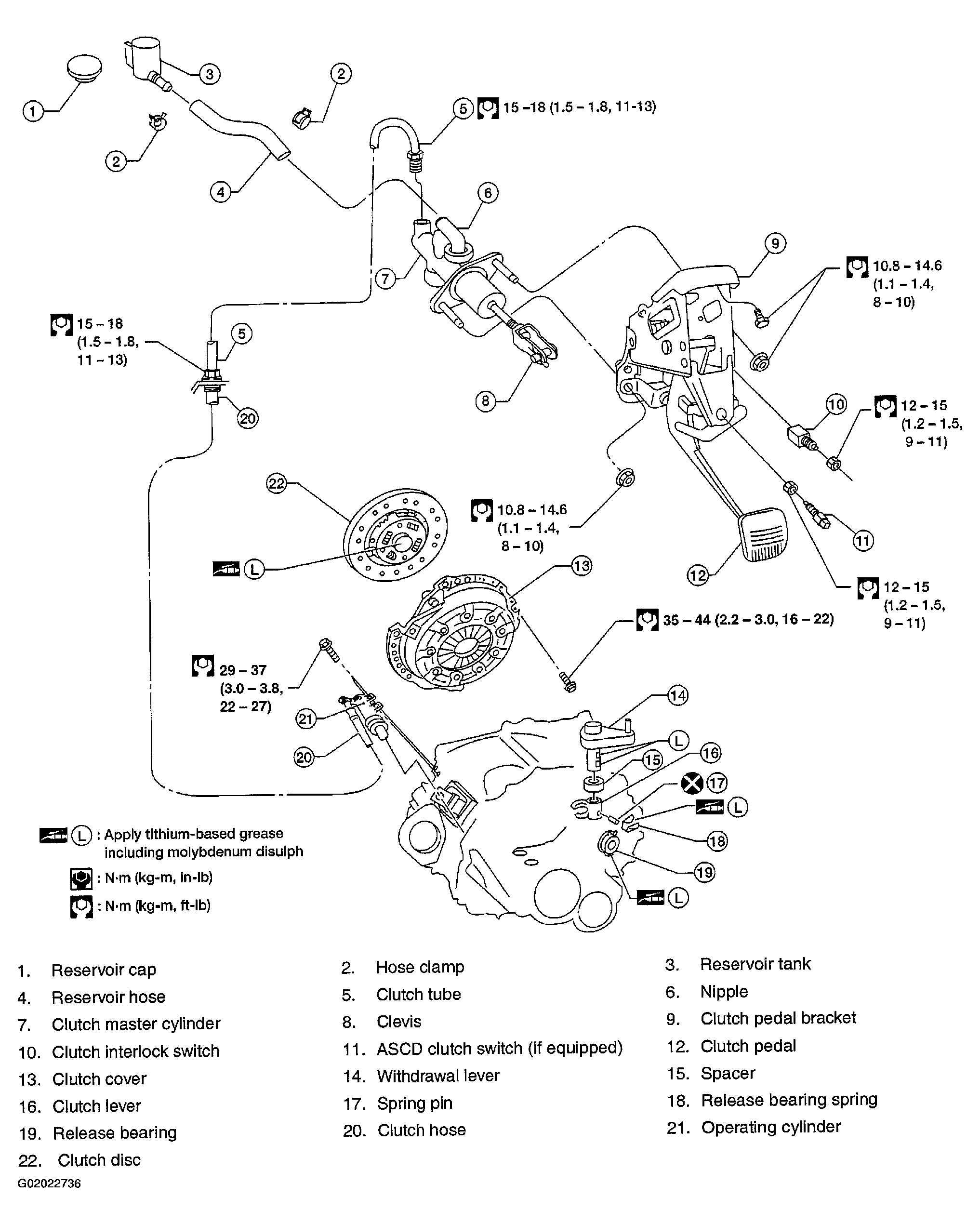

Fig 1: Identifying Clutch System Components
G02022736Courtesy of NISSAN MOTOR CO., U.S.A.
