Operating Cylinder: Components

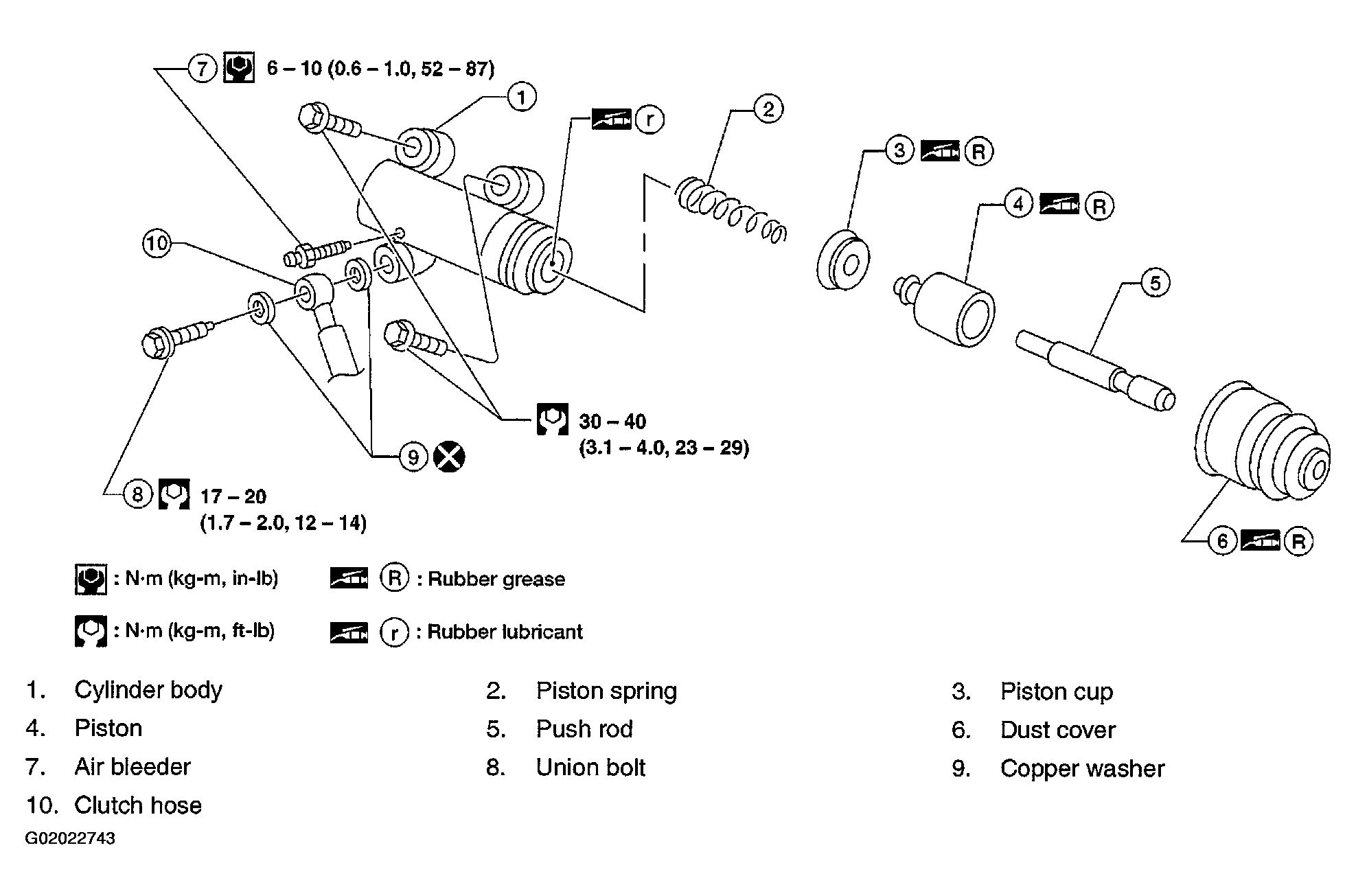

Fig 1: Exploded View Of Operating Cylinder
G02022743Courtesy of NISSAN MOTOR CO., U.S.A.
