Manual Transaxle RS6F51H
›
Description
›
Cross-sectional View
›
Notes
Cross-sectional View: Notes

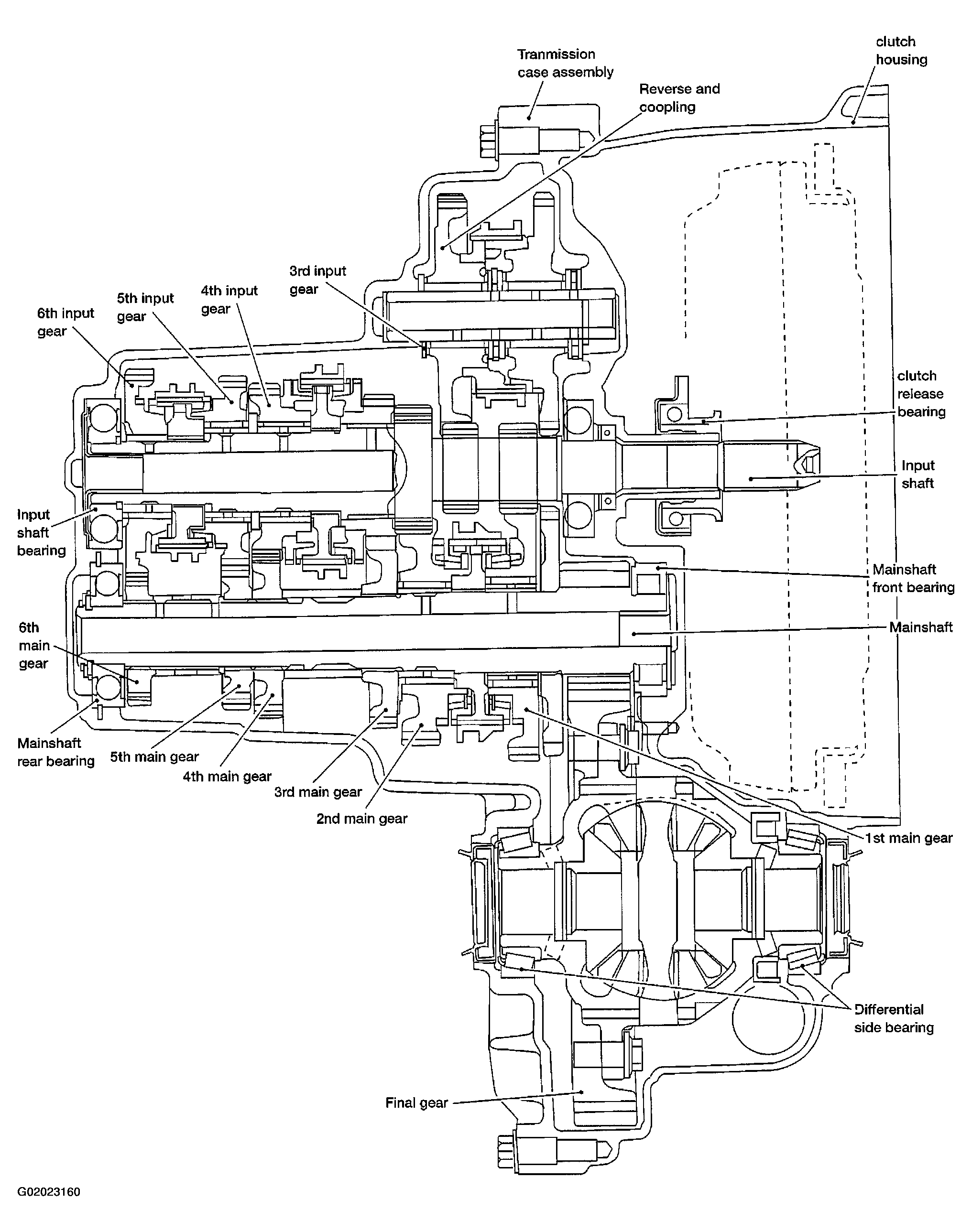

Fig 1: Cross-Sectional View Of RS6F51H Manual Transmission
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
