Disassembly and Assembly: Assembly

Using a drift (special service tool), install differential side bearing (transaxle case side).

Fig 1: Installing Differential Side Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Align and install speedometer drive gear onto differential case.

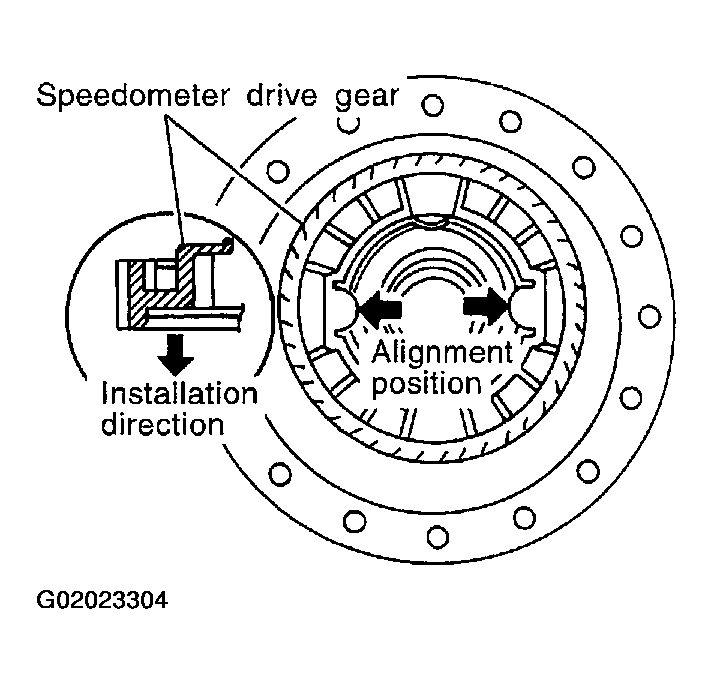

Fig 2: Aligning & Installing Speedometer Drive Gear Onto Differential Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a drift (special service tool), install differential side bearing (clutch housing side).

Fig 3: Installing Differential Side Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential gear into differential case, and tighten final gear mounting bolts.

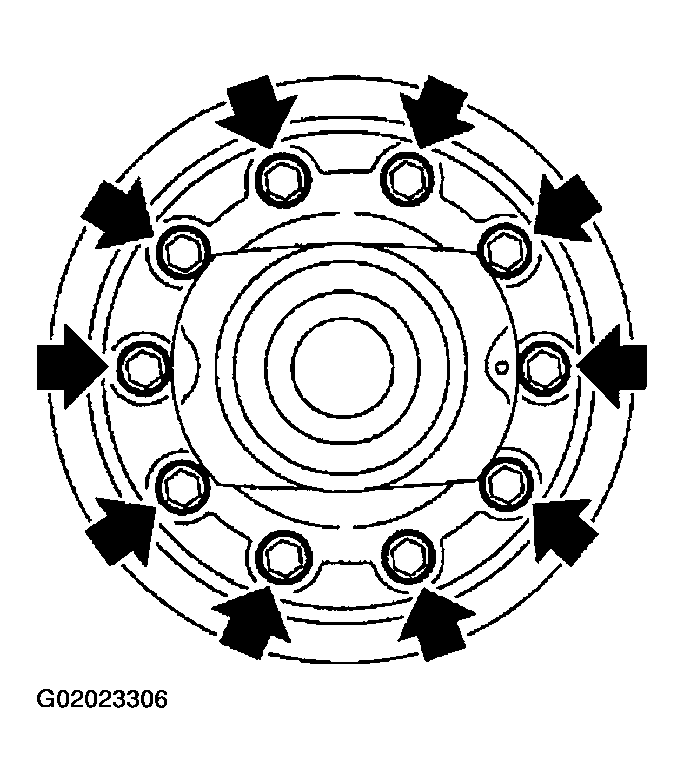

Fig 4: Locating Final Gear Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
