Shift Fork
Shift Fork
Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.
Fig 1: Determining Side Wear
Courtesy of NISSAN MOTOR CO., U.S.A.

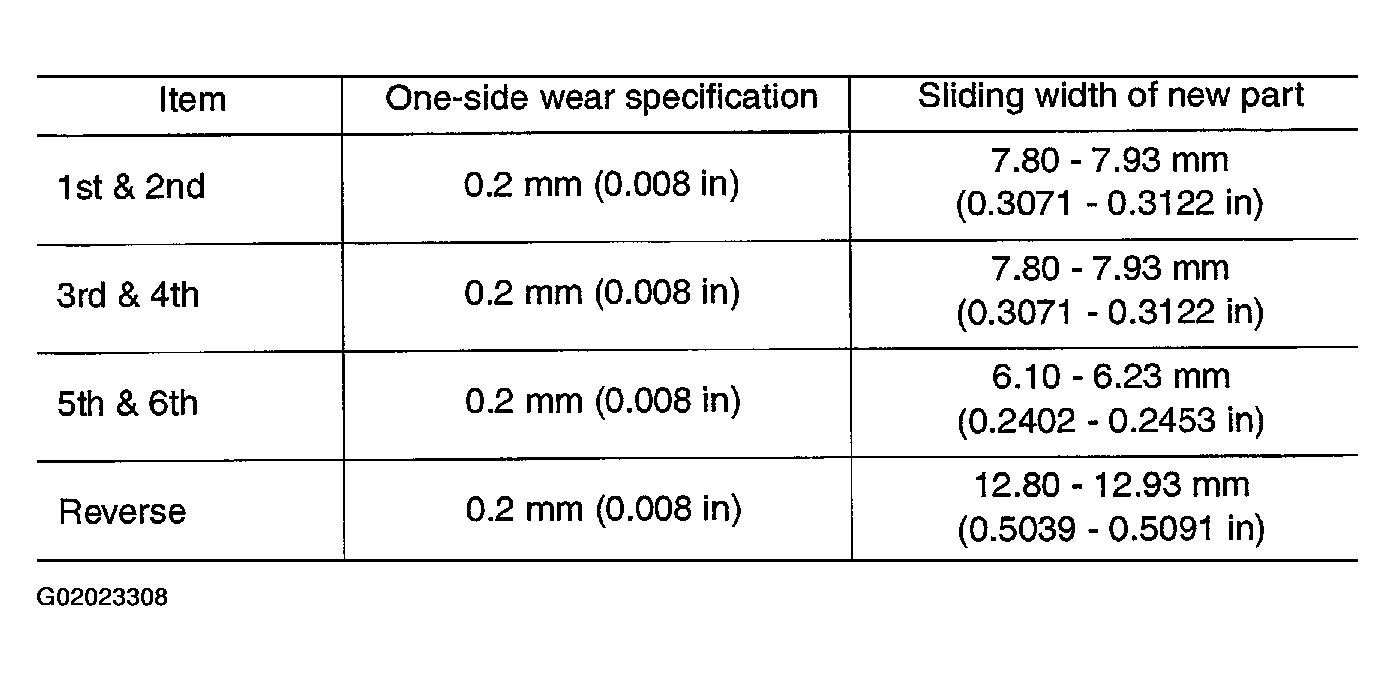

Fig 2: Identifying Wear Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
