Manual Transaxle RS6F51H
›
Transaxle Assembly
›
Component Parts
›
Shift Control Components
Shift Control Components

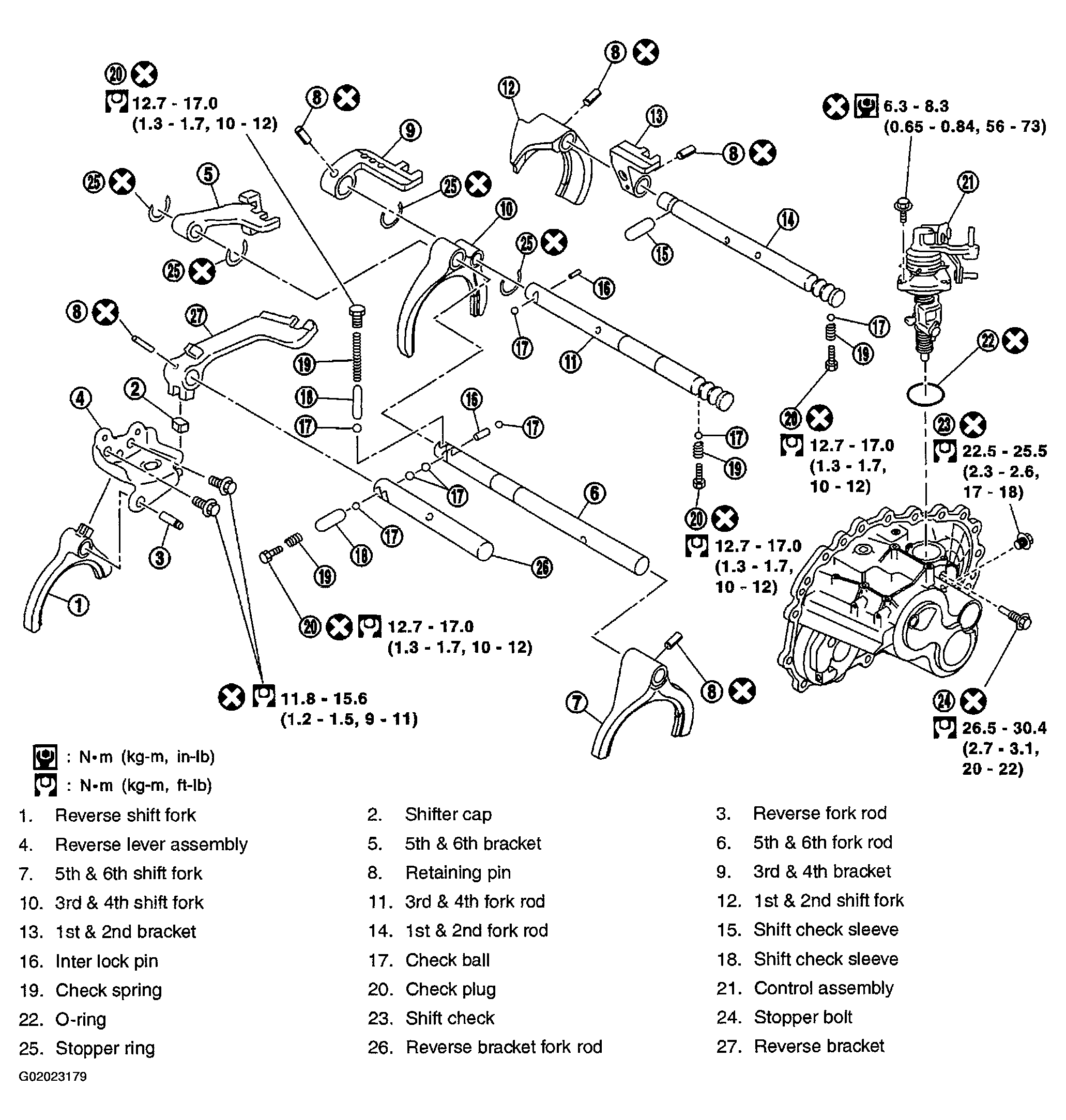

Fig 1: Identifying Transaxle RS6F51H Gear Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
