Automatic Speed Control Device (ASCD): Schematic

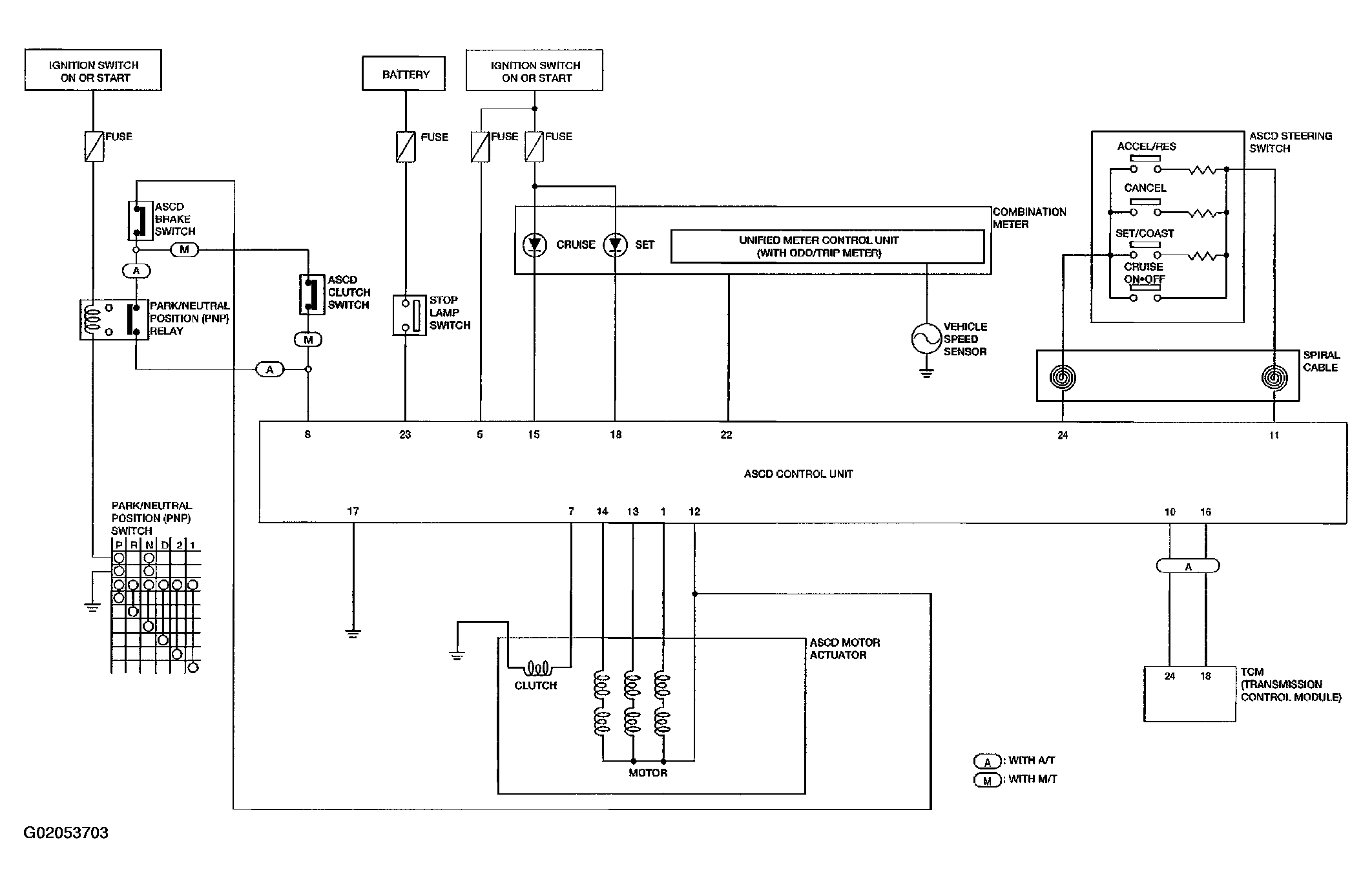

Fig 1: ASCD Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
