Sentra SE-R, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Body, Cab Control Systems
›
Body Control System
›
Smart Entrance Control Unit
›
Schematic
Smart Entrance Control Unit: Schematic

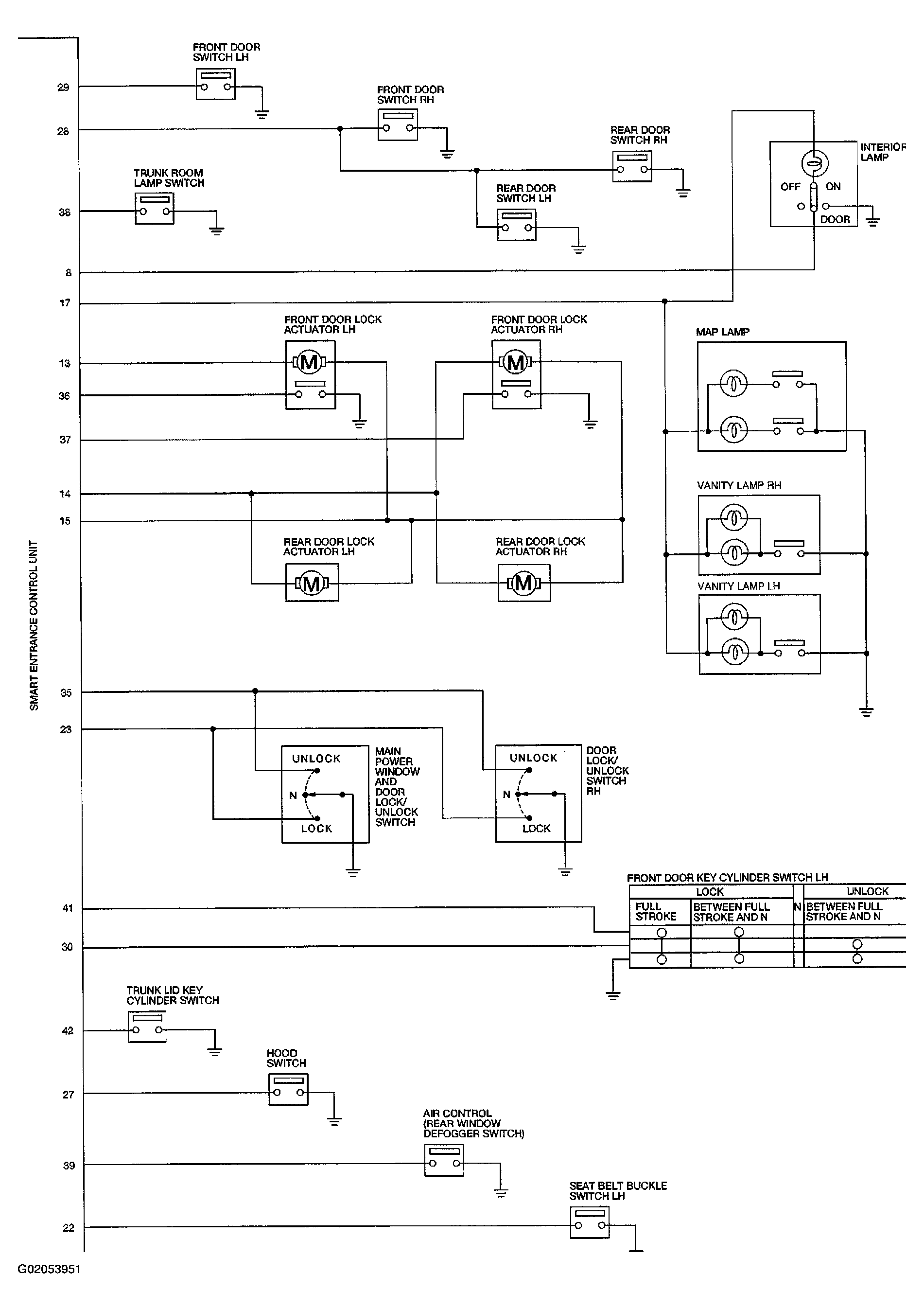

Fig 1: Smart Entrance Control Unit (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

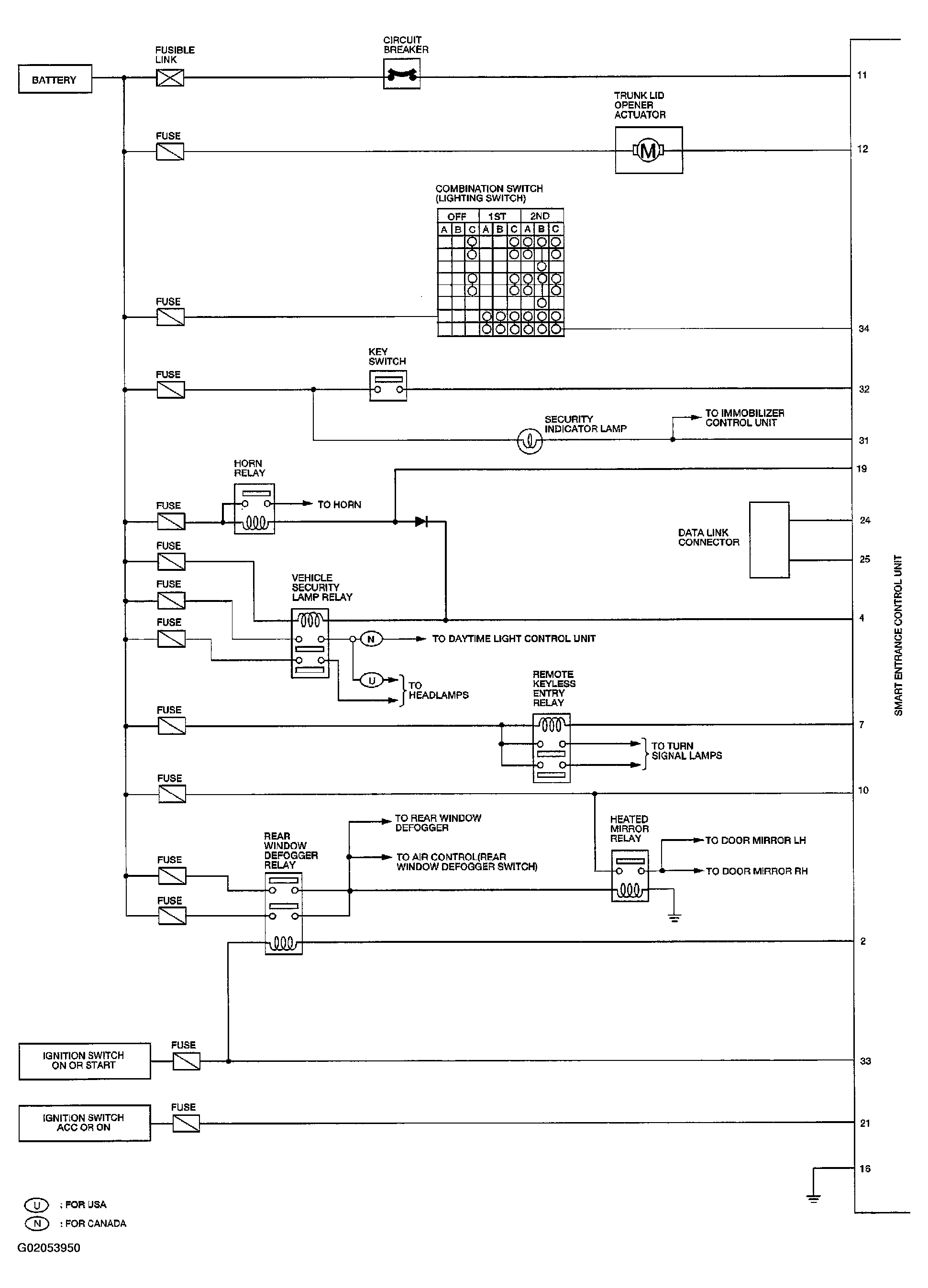

Fig 2: Smart Entrance Control Unit (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
