Removal And Installation: QG18DE: Installation
To install, reverse the removal procedure.

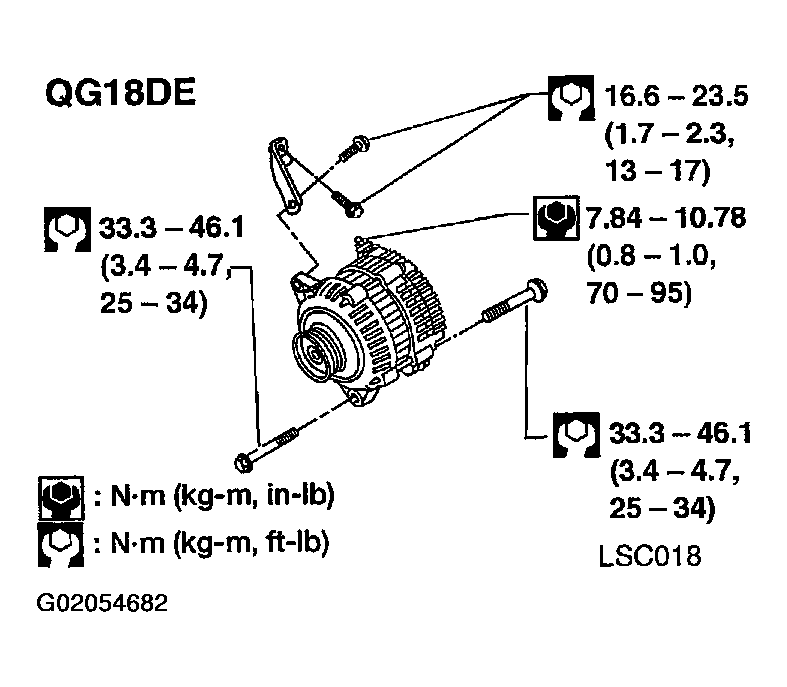

Fig 1: Installing Generator (QG18DE)
Courtesy of NISSAN MOTOR CO., U.S.A.
