Disassembly And Assembly: Assembly

Assembly is in the reverse order of disassembly.
Install the inner rotor and outer rotor with the punched marks on the oil pump cover side.

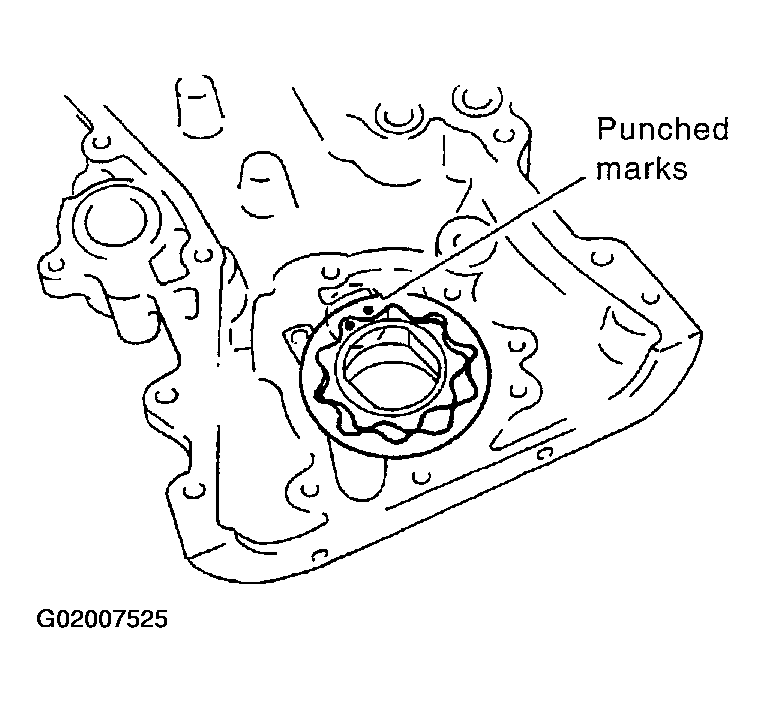

Fig 1: Locating Punched Marks
Courtesy of NISSAN MOTOR CO., U.S.A.
