Section 105 (Remote Keyless Entry Systems)
›
Component Tests
›
Terminals Of Ecu
›
Multiplex Network Body ECU
Multiplex Network Body ECU
WARNING:
This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
For inspection, see
Fig 1
.

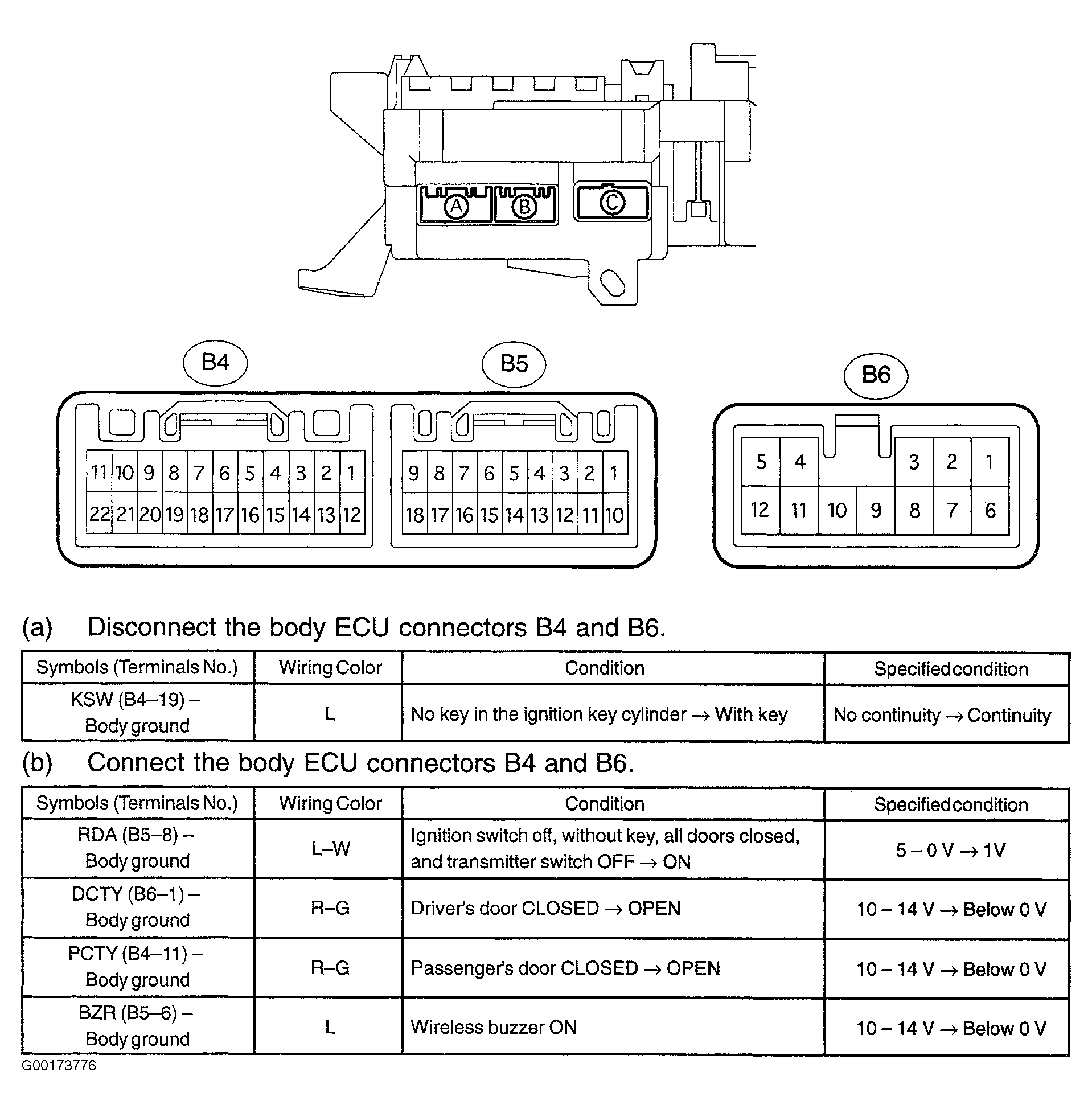

Fig 1: Inspecting Multiplex Network Body ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
