Fuel Pump
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect fuel level sensor unit and fuel pump harness connector.

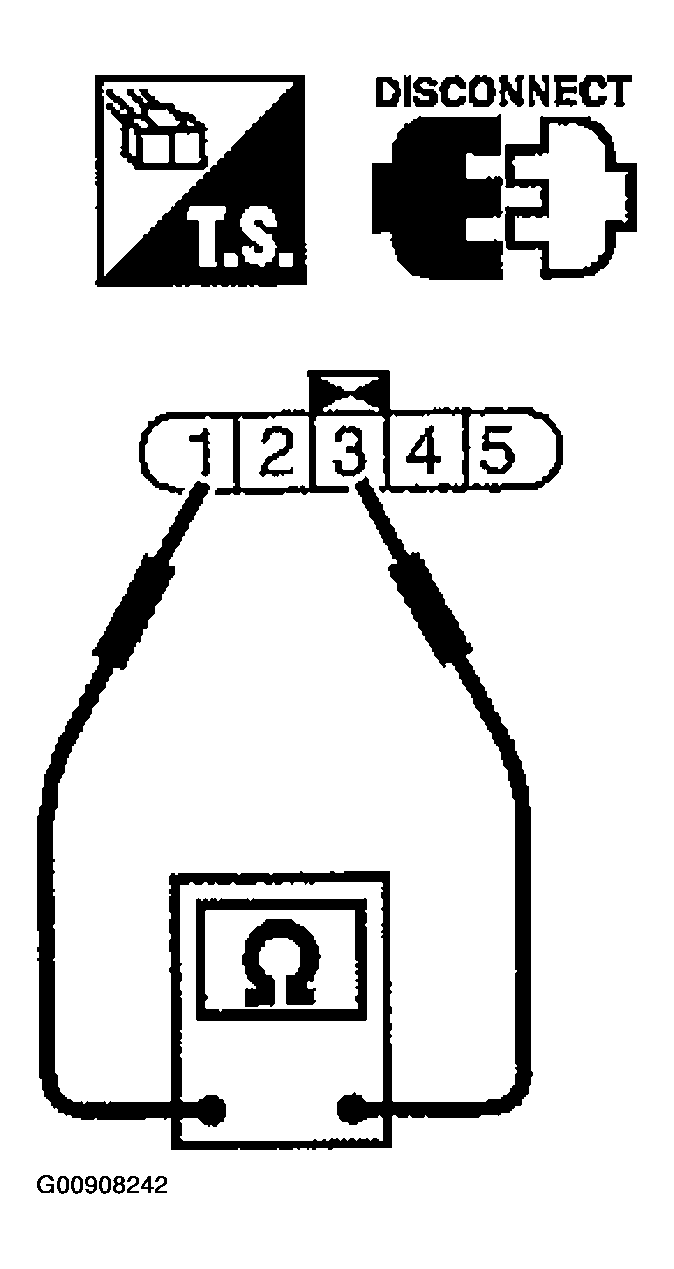

- Check resistance between fuel level sensor unit and fuel pump terminals 1 and 3.
Resistance: Approximately 1.0Ω [at 25°C (77°F)]
