ABS Data Monitor Procedure

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF".
  2. Connect CONSULT-II to Data Link Connector (DLC). See Figure .
  3. Turn ignition switch "ON".
  4. Touch "START" on CONSULT-II screen.
  5. Touch "ABS".
  6. Touch "DATA MONITOR".
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "LONG TIME" on "SET RECORDING COND" screen.
  9. Touch "START" on "SELECT MONITOR ITEM". For monitor items, see Fig 1 .

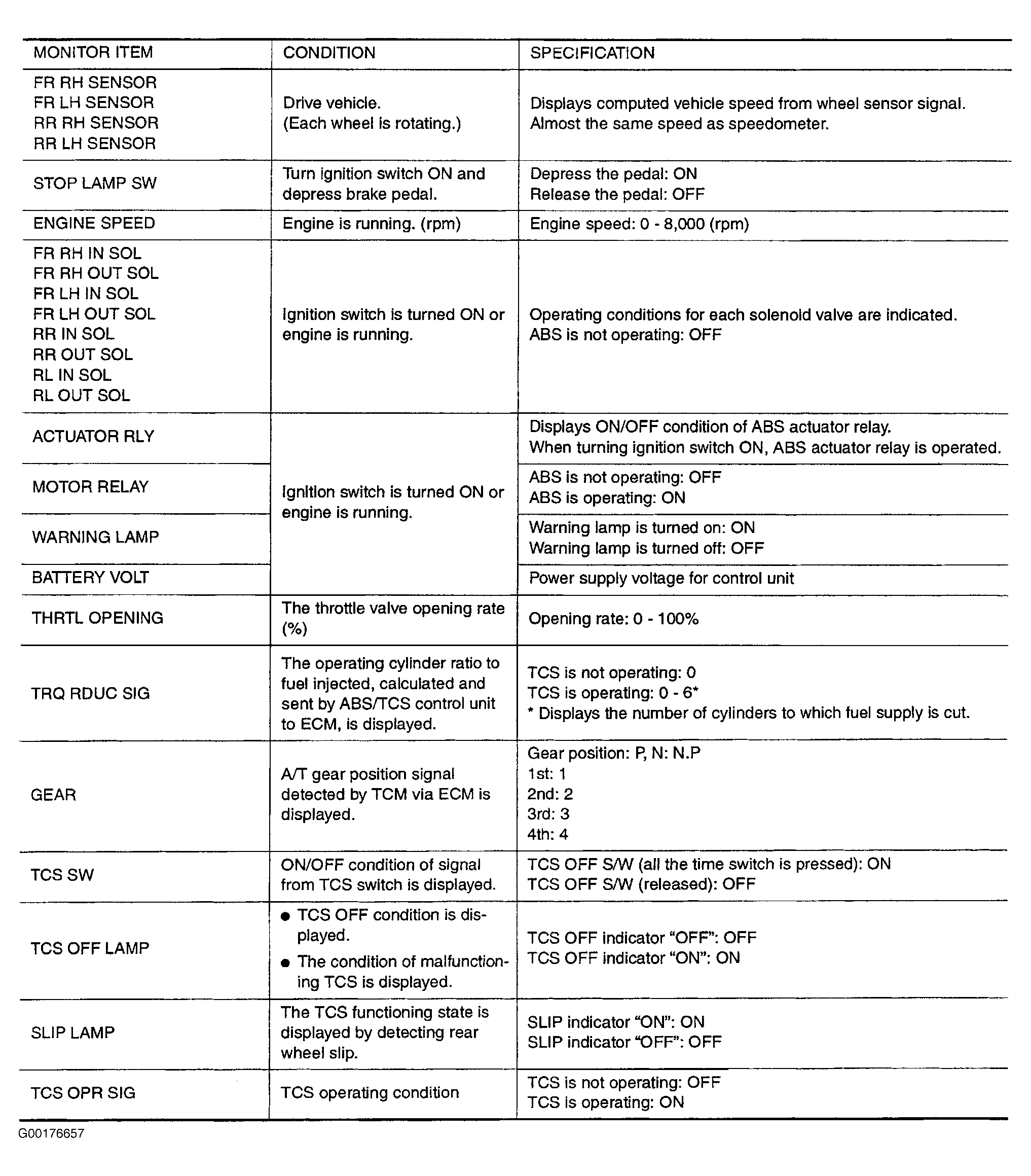

Fig 1: Identifying ABS Monitor Items
G00176657Courtesy of NISSAN MOTOR CO., U.S.A.
